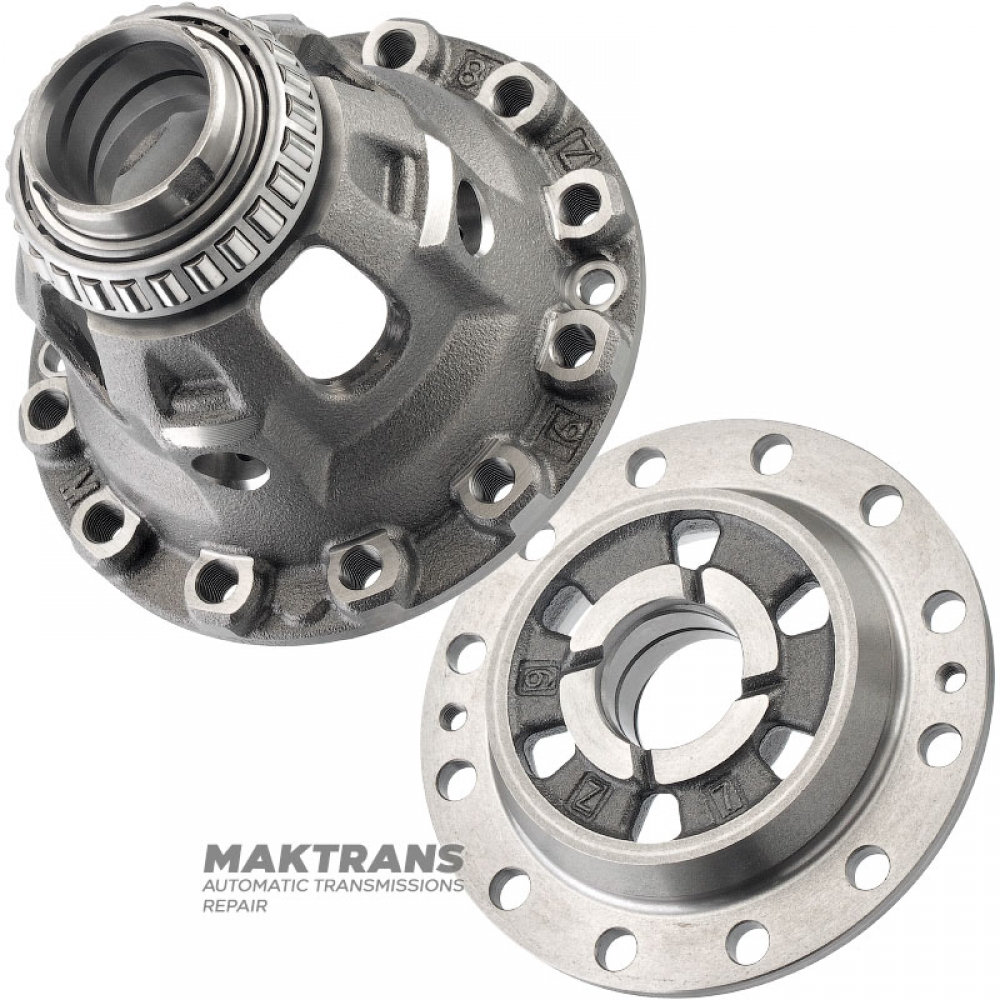

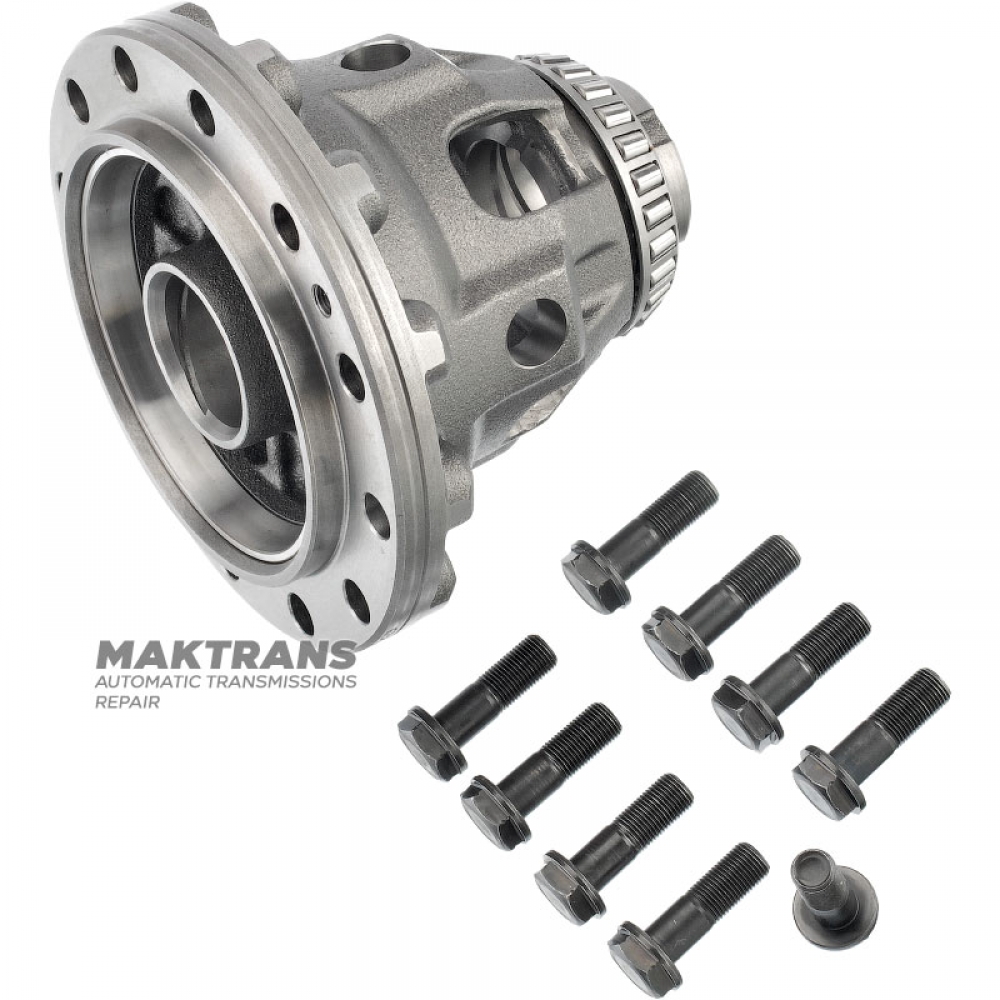

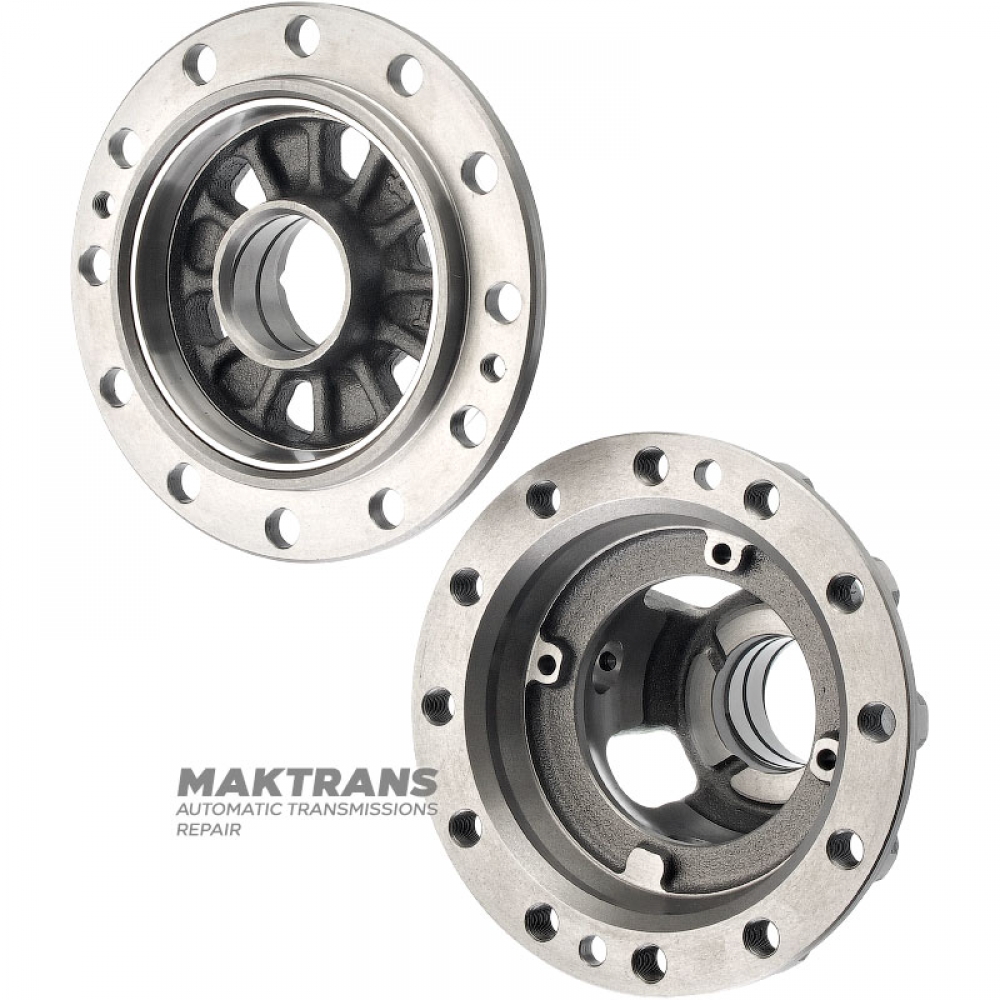

2WD Aisin Warner TF-73SC differential housing - empty (without axle gears and satellites)

• Overall height - 134 mm;

Satellite housing:

• Overall height - 118 mm;
• Bearing outer diameter - 75.05 mm;
• The outer diameter of the skirt of the mounting holes is 162 mm;
• Number of mounting holes - 12 pcs.;
• Inner diameter for half-axle gear - 40 mm;
• The internal diameter of the holes for the satellite axle is 17 mm;

Case cover:

• Overall height - 37 mm;
• Inner diameter for axle gear - 40 mm;
• The outer diameter of the skirt of the mounting holes is 162 mm;
• Number of mounting holes - 12 pcs.;
• The inner diameter of the mounting hole is 11.30 mm;
• Bearing race outer diameter - 107.85 mm;
