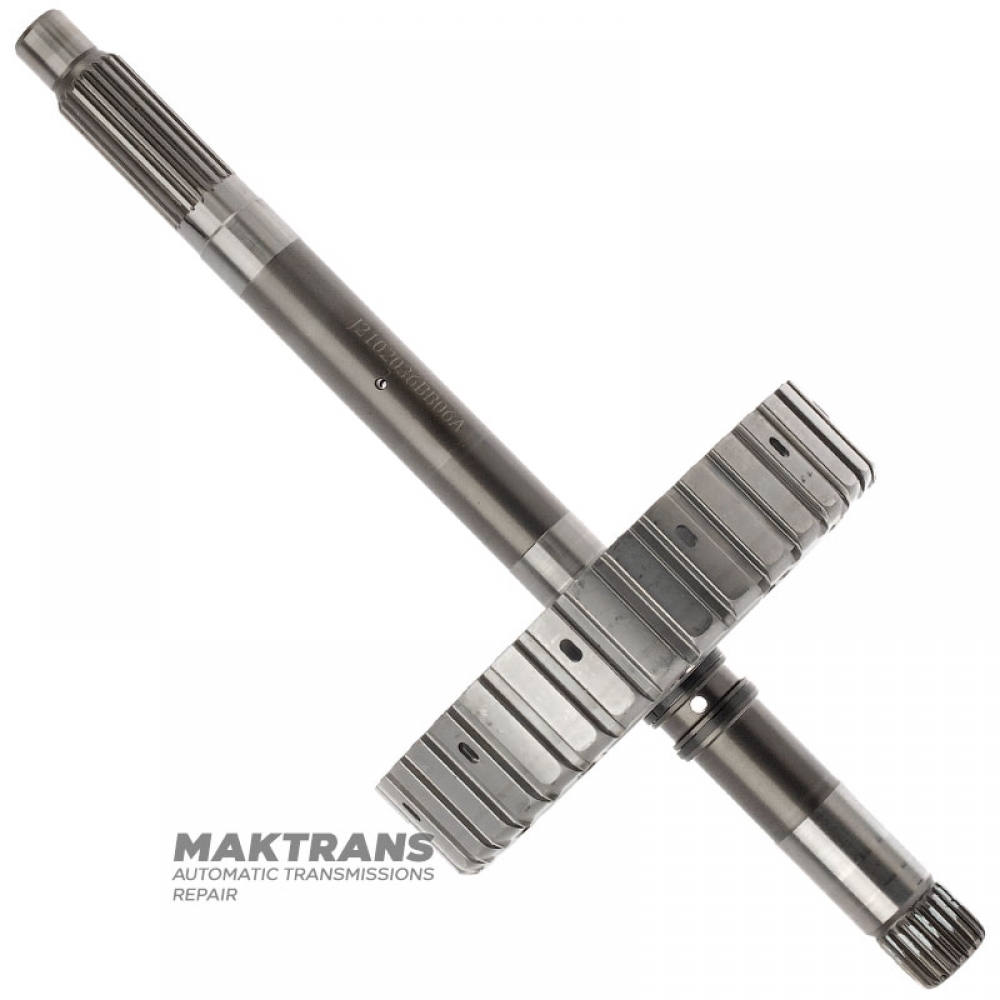

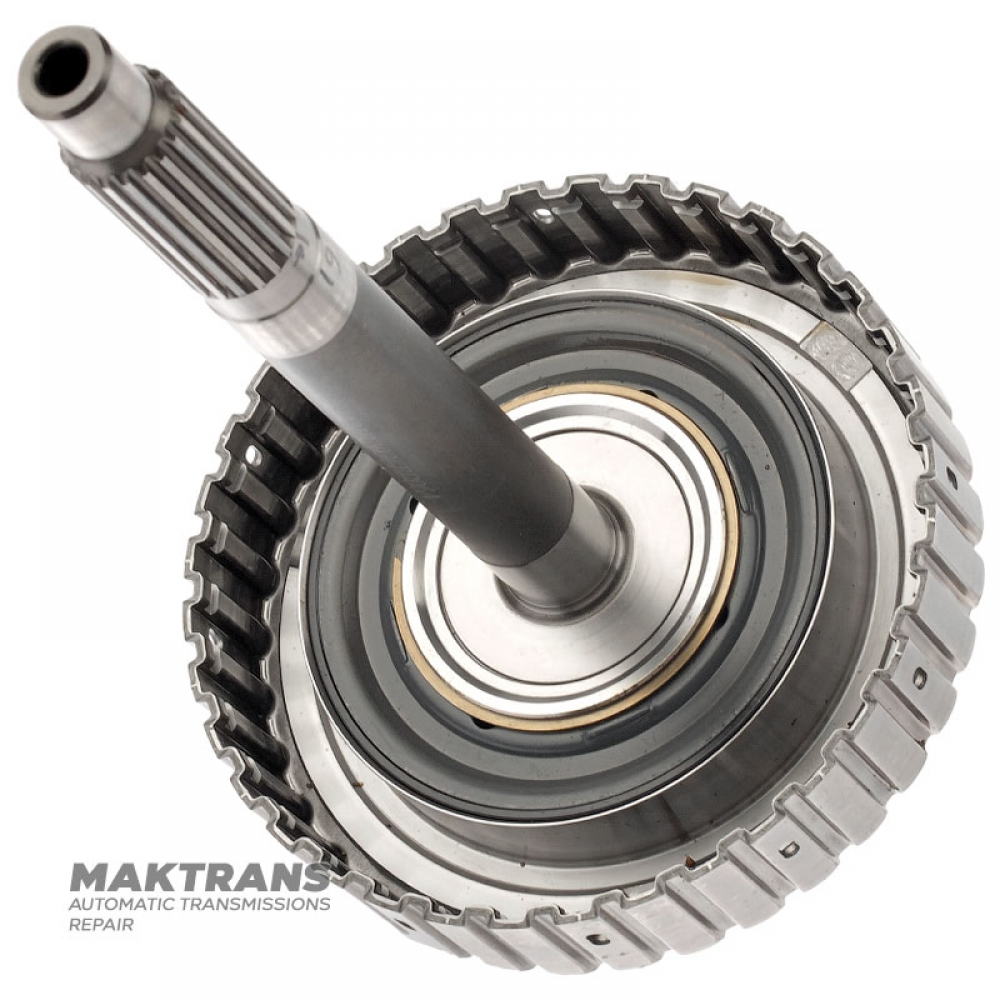

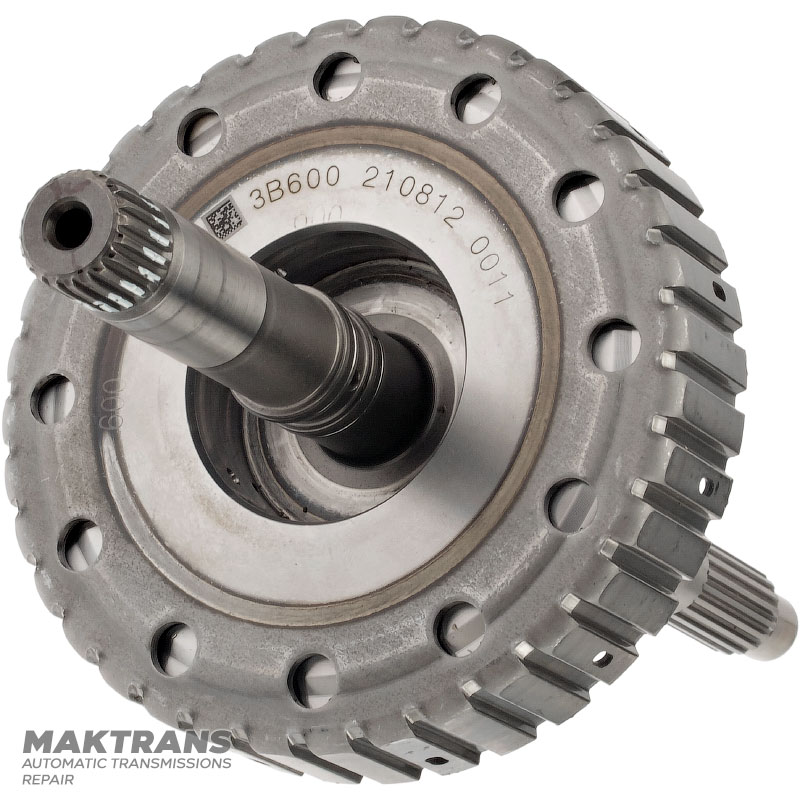

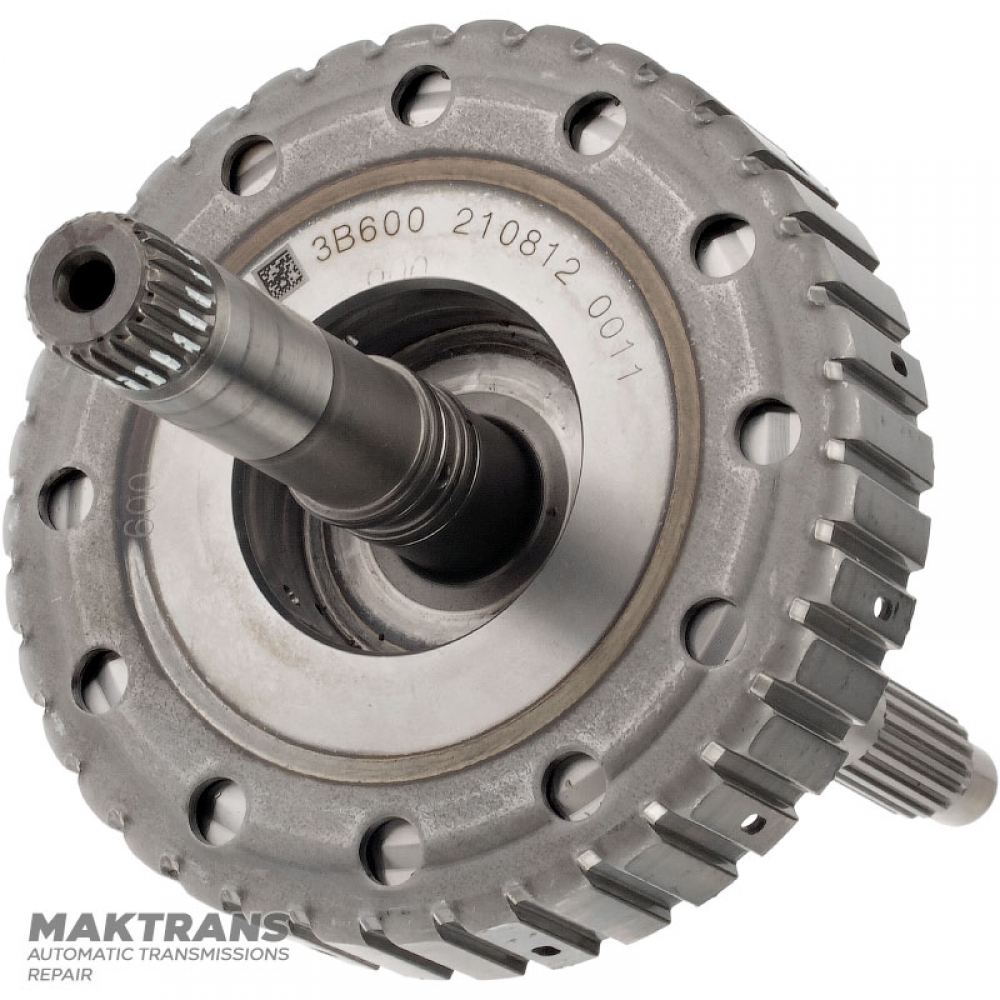

3-5/REVERSE Drum with A6MF1 09-up Input Shaft - Shaft Length 328mm, 20/19 Splines, 454143B600, 454103B720, (without disc kit)

• Overall height - 328 mm;

Front side:

• Shaft length -
• Number of splines - 20 pcs.;
• The outer diameter of the splined part is 22.15 mm;

Drum:

• Drum height - 33.55 mm;
• Drum outer diameter - 145.05 mm;
• Height from piston to retaining ring - 20 mm;

Back side:

• Shaft length - 200 mm;
• Number of splines - 19 pcs.;
• Diameters of the working parts of the shaft - 21.75 mm (x2), 16 mm;
