Drum C / D Clutch 6R60, 6R75, 6R80 - BL3P-7L328-AC, 5 friction discs

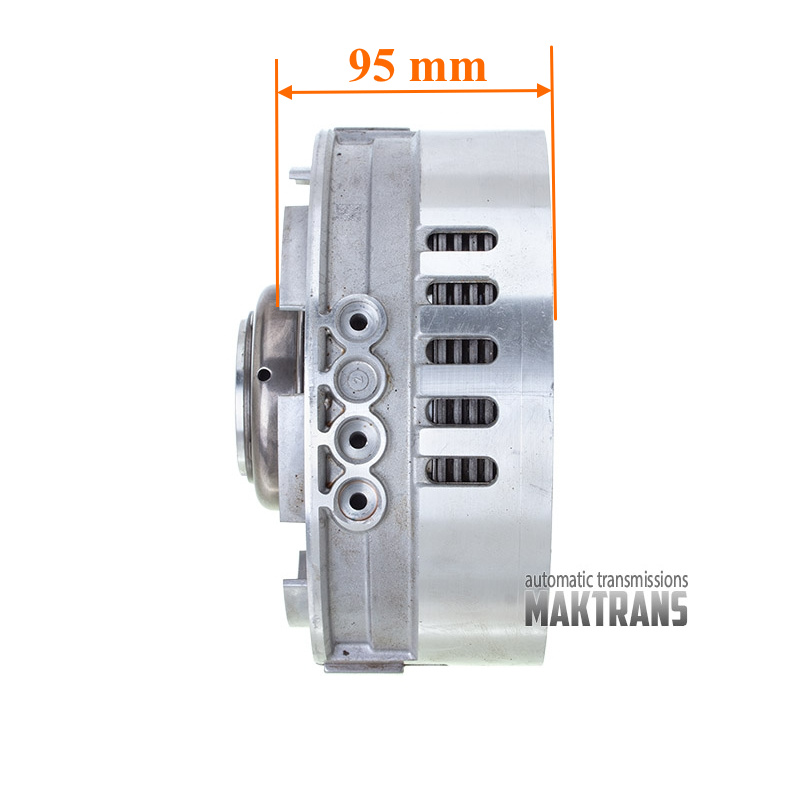

Drum:

• Overall height - 114 mm;
• Drum outer diameter - 202.35 mm;
• Inner hole diameter - 46.15 mm;

INTERMEDIATE Clutch Steel and Friction Disc Set:

• The total thickness of the set is 30 mm;

Support disk:

• Thickness - 3.90 mm / 5.20 mm;
• Inner diameter - 163.45 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.20 mm;
• Outer diameter - 185.85 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 3.05 mm;
• Inner diameter - 163.70 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 5 pcs.;

Spring disc:

• Thickness - 1.05 mm;
• Inner diameter - 163.85 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 1 pc.;

Tags: BL3P7L328AC, RF-BL3P-7L328-AC
