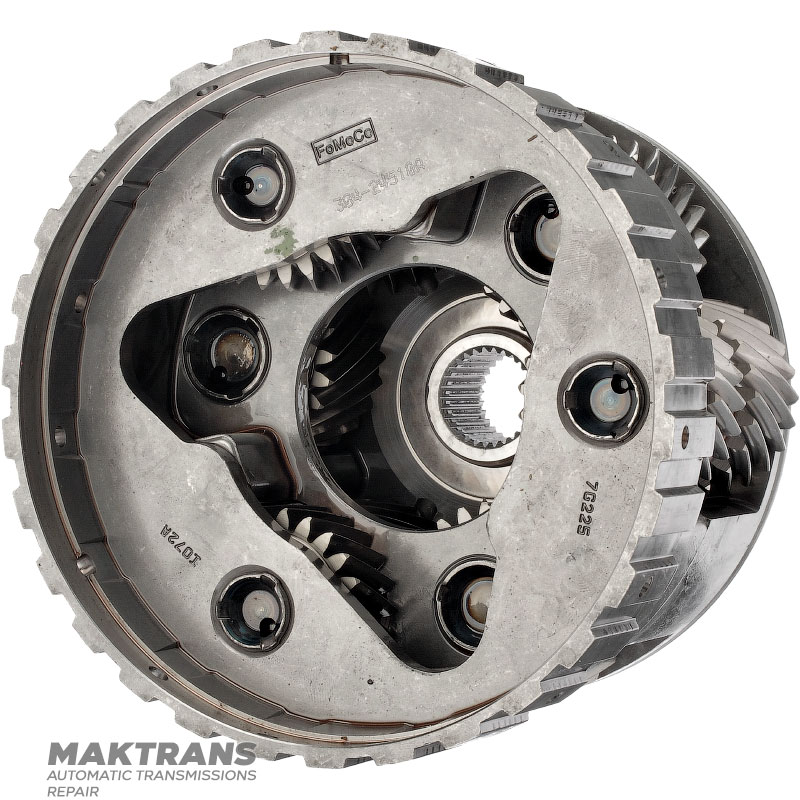

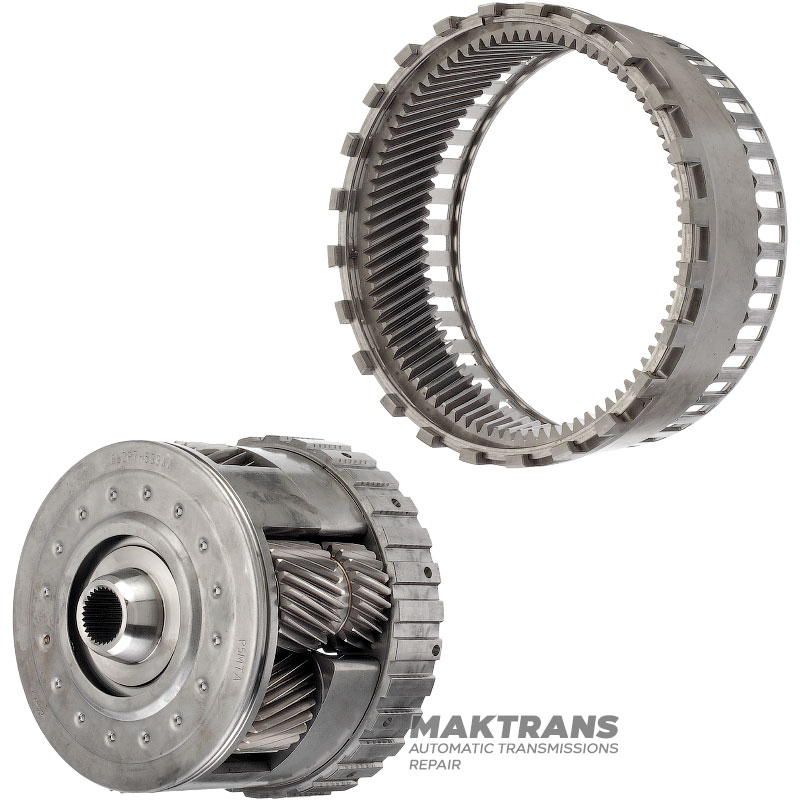

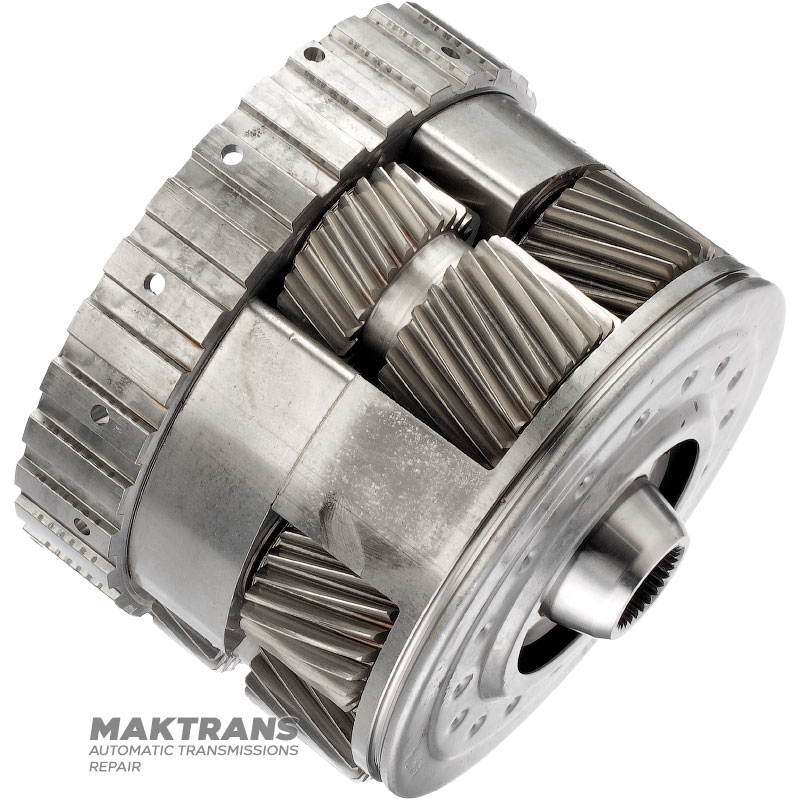

Rear planet assembly 6R60 6R75 6R80 9L3P7G224BA (total height 127 mm)

Rear planet assembly 6R60 6R75 6R80 9L3P7G224BA (total height 127 mm)

• Overall height 127 mm.
• The number of splines on the inner side is 29 pcs.

Low / Reverse Hub:

• Hub Height Low / Reverse Clutch - 30.45 mm.
• The outer diameter of the hub is 160 mm.
• Friction plate - 30 teeth.

The planetary gear has three (paired) satellites with a total height of 65 mm with the number of teeth on the satellite 23 pcs. The satellite is divided into two not equal in height toothed parts 34.74 mm and 20.10 mm. and three satellites with a total height of the toothed part of 33.50 mm with the number of teeth 24 pcs.

Sun Gear # 1:

• Number of teeth - 38 pcs.
• The outer diameter of the gear is 73.15 mm.
• Gear width - 22 mm.
• The number of splines on the inner side of the gear is 56 pcs.

Sun Gear # 2:

• The number of teeth is 31 pcs.
• The outer diameter of the gear is 60.30 mm.
• Gear width - 39.60 mm.
• The number of splines on the inner side of the gear is 41 pcs.

Rear planet rear gear 6R60 6R75 6R80:

• The total height is 69 .
• Outer diameter at the place of mounting of the output shaft flange - 182 mm.
• The number of teeth of the ring gear is 85 pcs.
