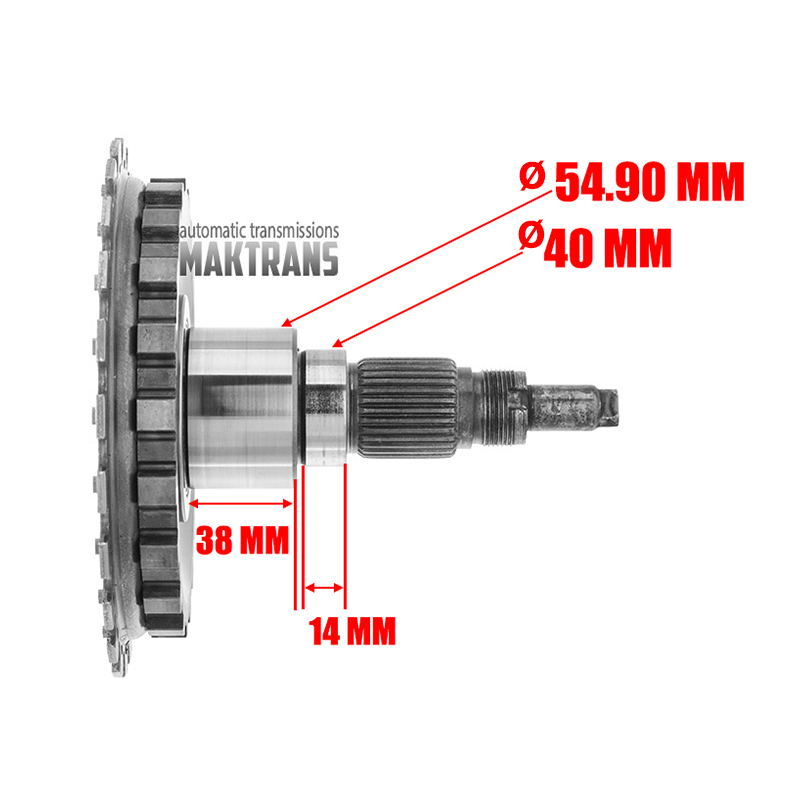

Output shaft FORD 6R60, 6R75, 6R80 – FL5P-7096-BA (overall height 172 mm, 31 splines (outer Ø 34.60 mm))

• Overall height - 172 mm;
• Number of splines on the shaft - 31 pcs.;
• The outer diameter of the splined part is 34.60 mm;

Diameter of the working part of the shaft:

• 40 mm;
• 54.90 mm;
• Number of teeth on the packing gear - 20 pcs.;
• The outer diameter of the parking gear is 155 mm;
• Number of teeth on the gear ring - 24 pcs.;
• Outer diameter of gear ring - 181.75 mm;
