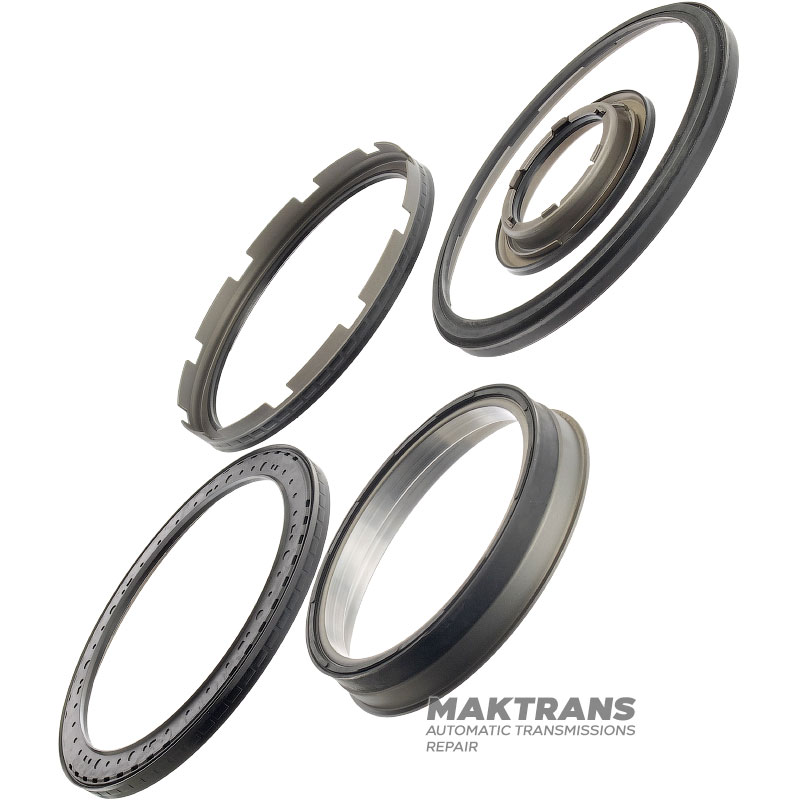

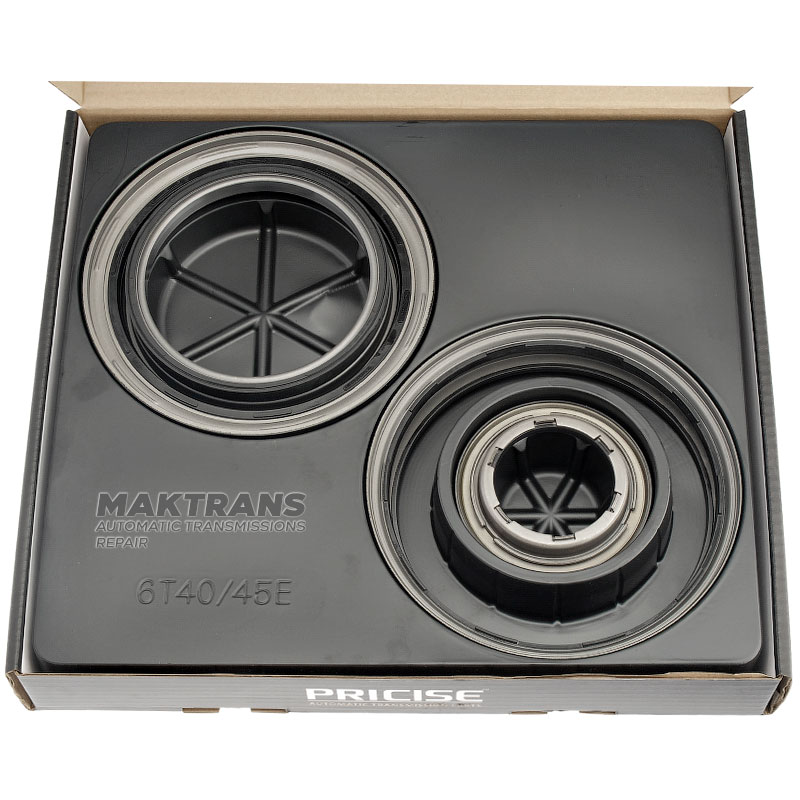

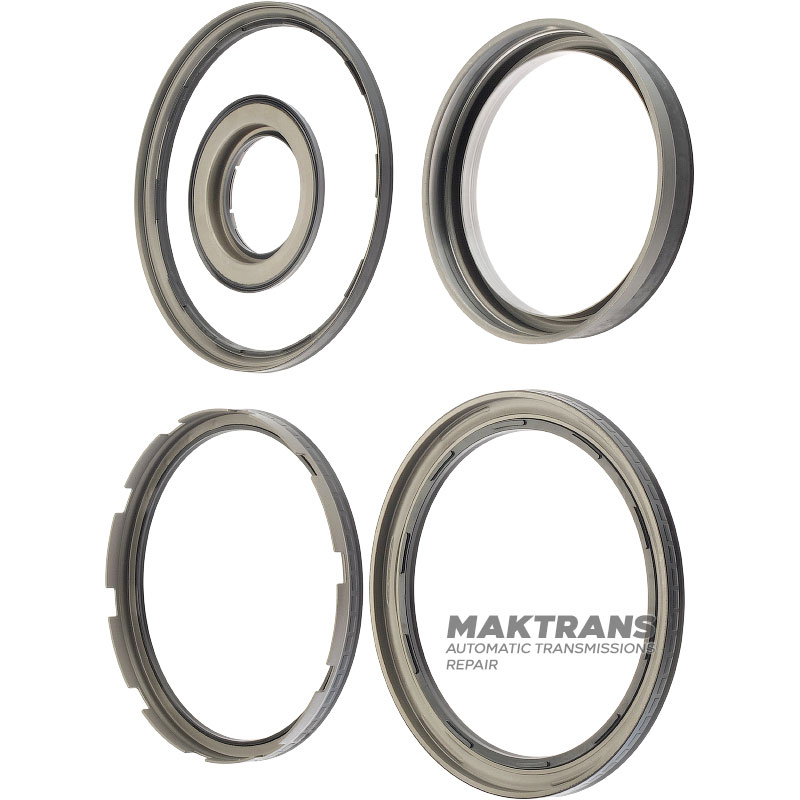

Rubberized piston kit 6T40, 6T45 — K204960A (5 pistons per set), piston 4-5-6 Clutch Gen1 (111x66x17)

The kit includes:

Piston 4-5-6 Clutch:

• Height - 17 mm;
• Outer diameter - 111 mm;
• Inner diameter - 66 mm;
• # 24243624, 24259029, 24259028, 24259027, 24257107, 24231252;

Piston Low / Reverse Clutch:

• Height - 14 mm;
• Outer diameter - 207 mm;
• Inner diameter - 165 mm;
• # 24257110, 24230813, 24256927;

Piston 2-6 Clutch:

• Height - 22 mm;
• Outer diameter - 199 mm;
• Inner diameter - 174 mm;
• # 24257108, 24257000, 24243625, 24230727;

Piston 1-2-3-4 Clutch:

• Height - 14 mm;
• Outer diameter - 207 mm;
• Inner diameter - 182 mm;
• # 24259455, 24259454, 24259453, 24257106, 24230816;

Piston 3-5-R Clutch:

• Height - 28 mm;
• Outer diameter - 161 mm;
• Inner diameter - 131 mm;
• # 24230742, 24257109, 24259060, 24259061, 24259062, 24266145;
