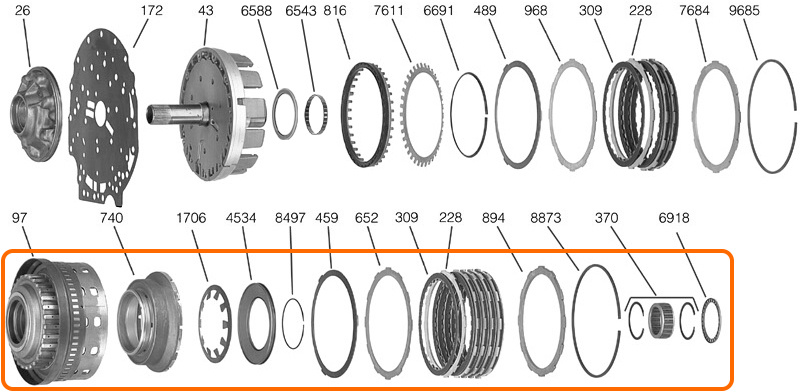

K1Clutch Drum Assembly Mercedes-Benz 722.6 - 6x6 Single-Way Friction Discs, 58-Tooth Pinion (81.65mm Outer Diameter), R1402721124

K1 Clutch Drum:

• Overall height - 117 mm;
• Drum outer diameter - 189.50 mm;
• Inner diameter under the hub - 57.65 mm;
• Height from piston to retaining ring - 32 mm;

Helical gear:

• Number of teeth - 58 pcs.;
• Gear outer diameter - 81.65 mm;

K1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 28.90 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc ( single-sided, internal teeth ):

• Thickness - 2.05 mm;
• Outer diameter - 172.75 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 6 pcs.;

Friction disc ( one-sided, external ):

• Thickness - 2.10 mm;
• Inner diameter - 154.50 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 6 pcs.;

Spring disc:

• Thickness - 1.55 mm;
• Inner diameter - 154 mm;
• Number of teeth - 3 pcs.;
• Number of discs in the set - 1 pc.;
