Main Specifications
Condition (used, new):
used and inspected
Type:
oil pump
If you order more than 1 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 1 pcs. |
  |
| Ukraine | 2 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (2)

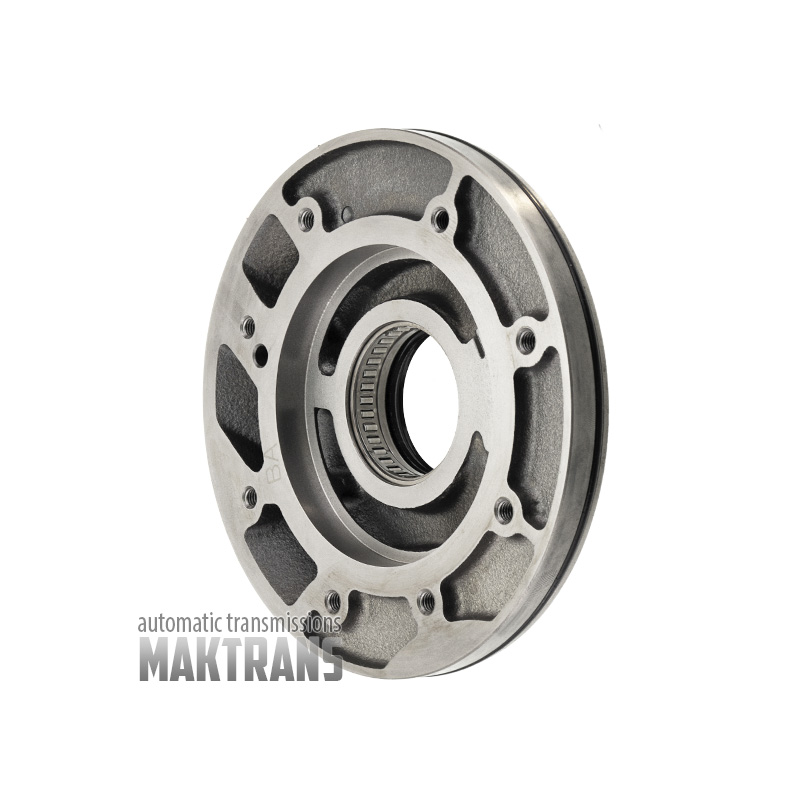

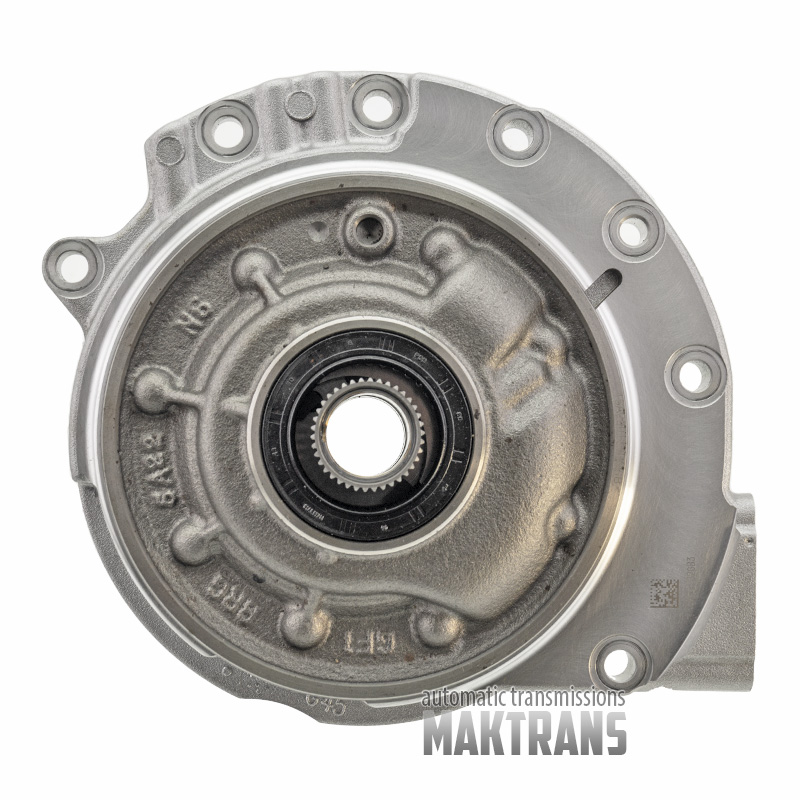

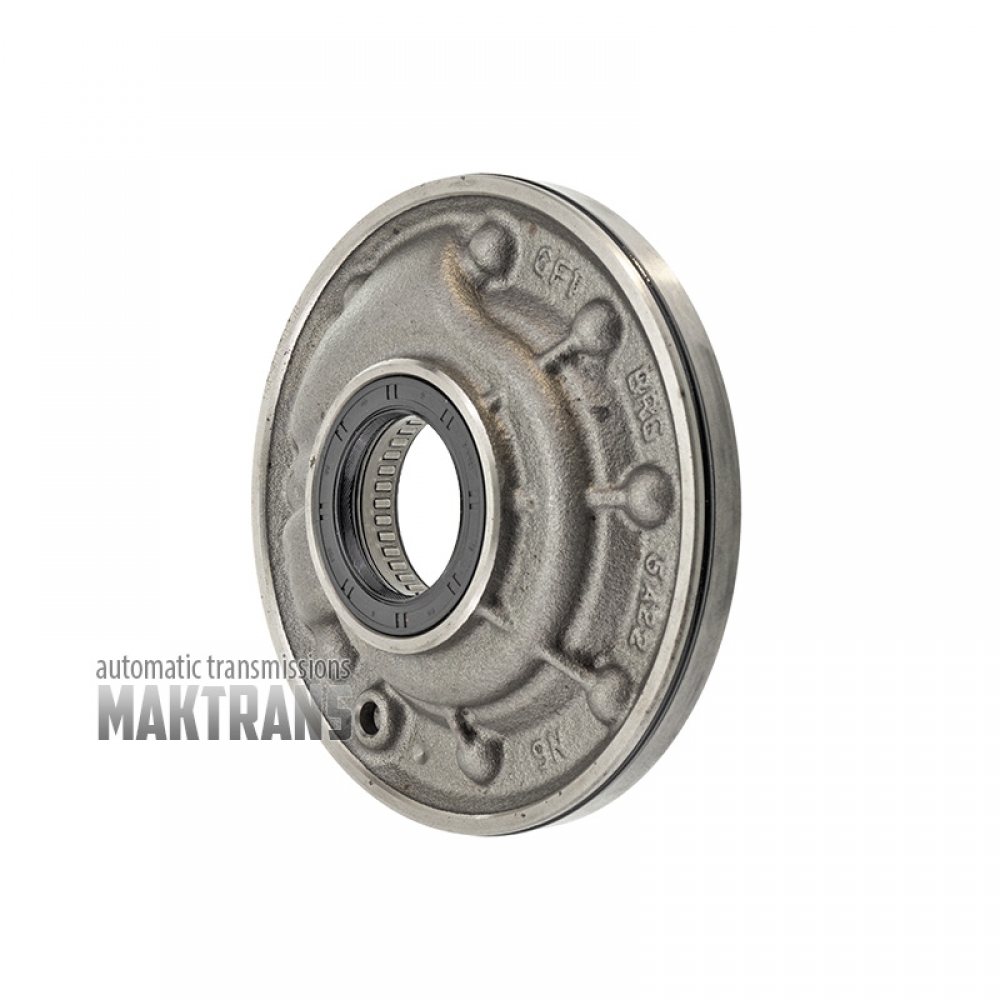

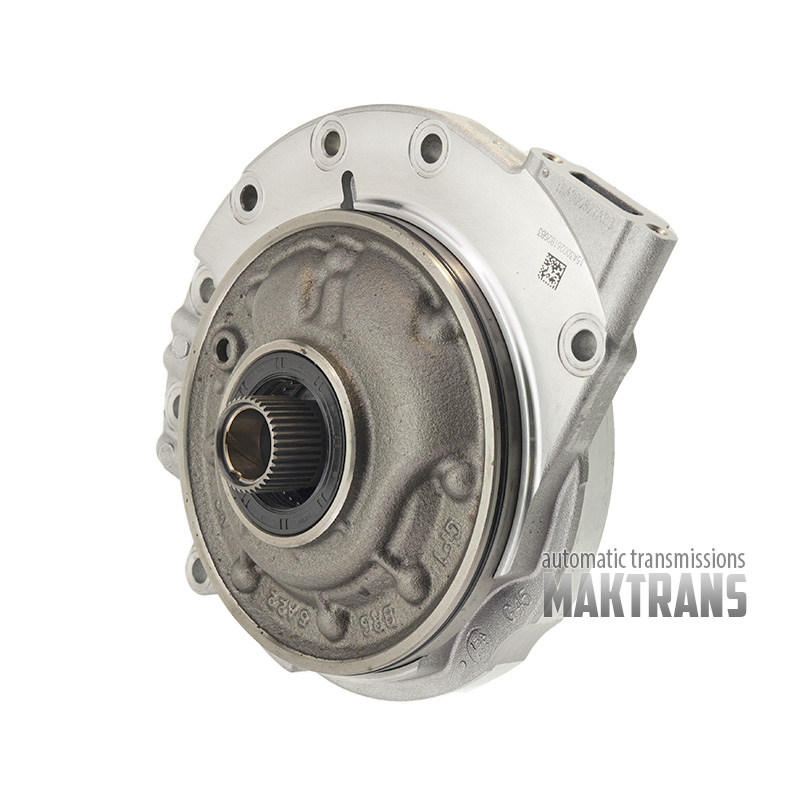

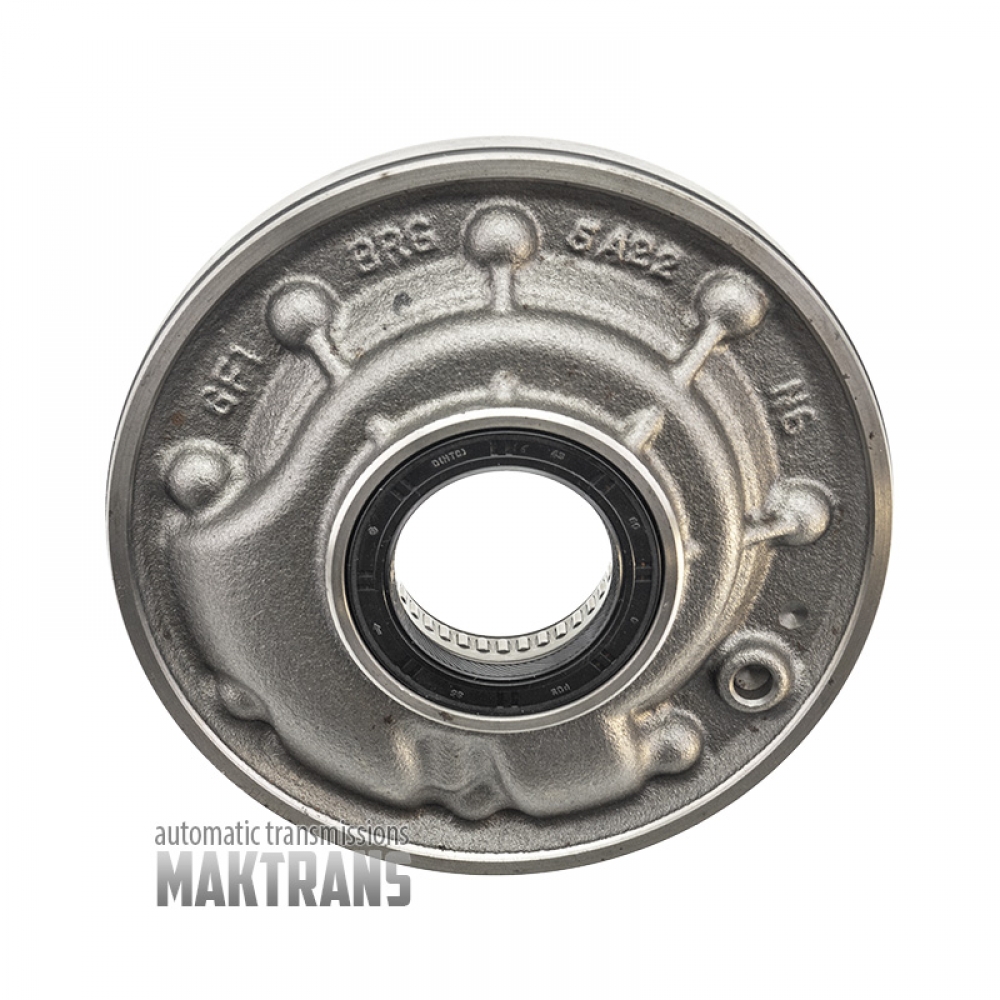

Oil pump housing:
- Height - 33 mm;
- Outer body diameter - 153.95 mm;

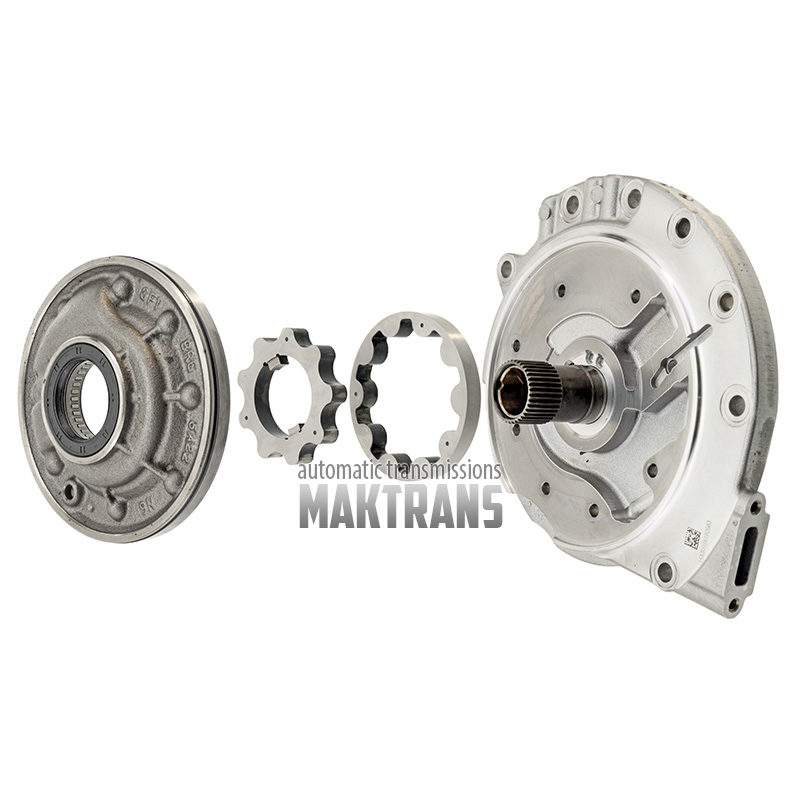

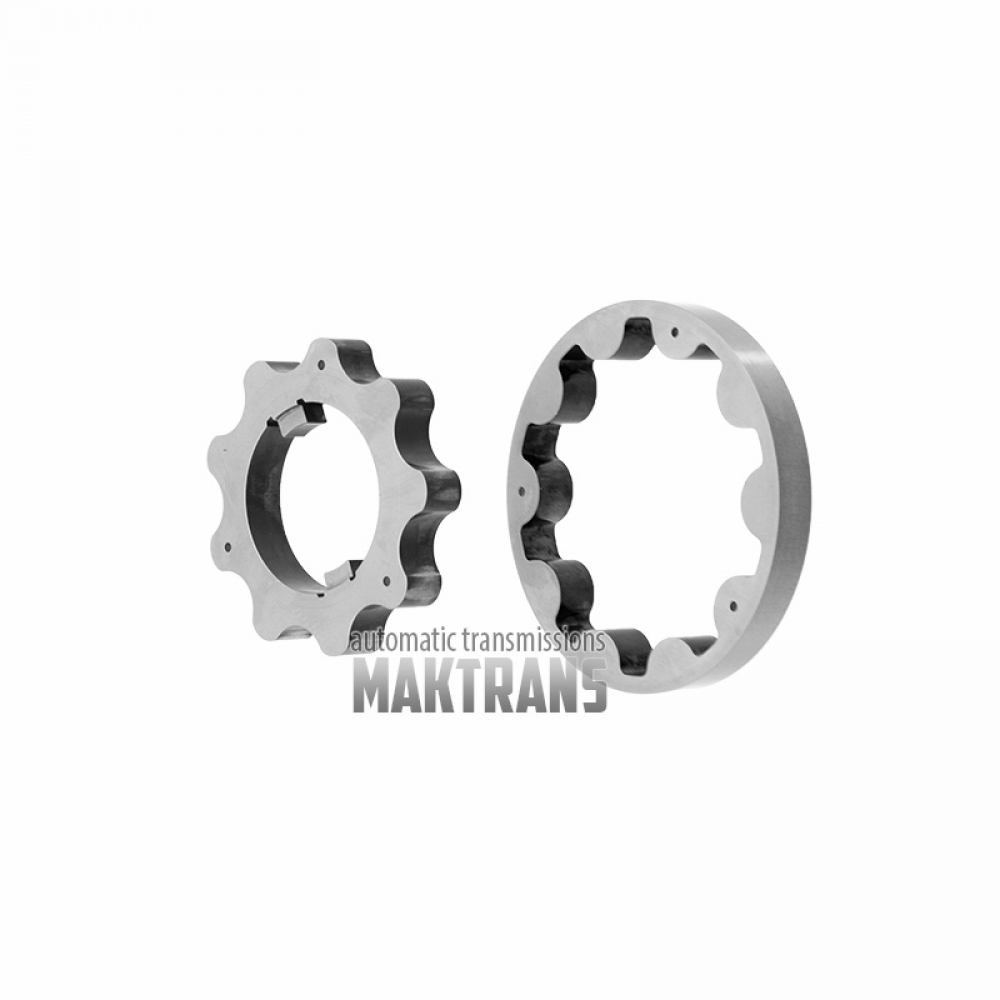

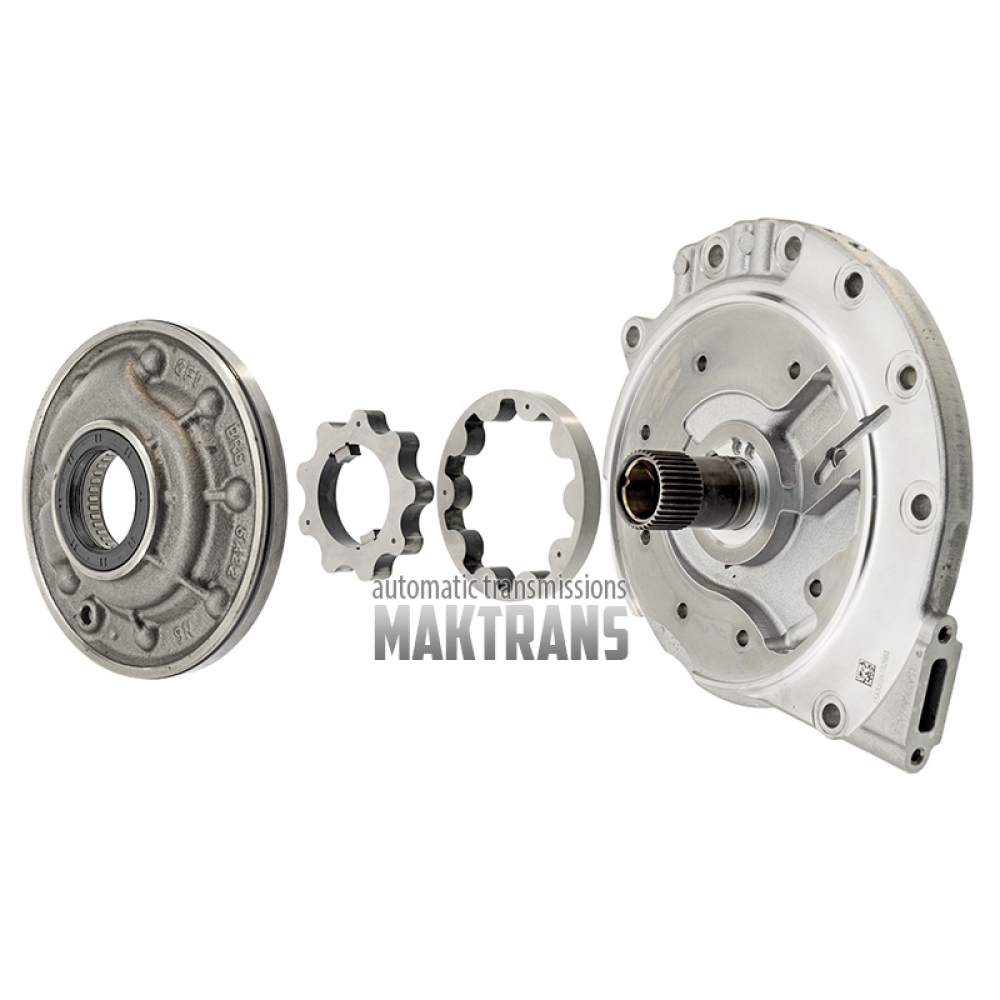

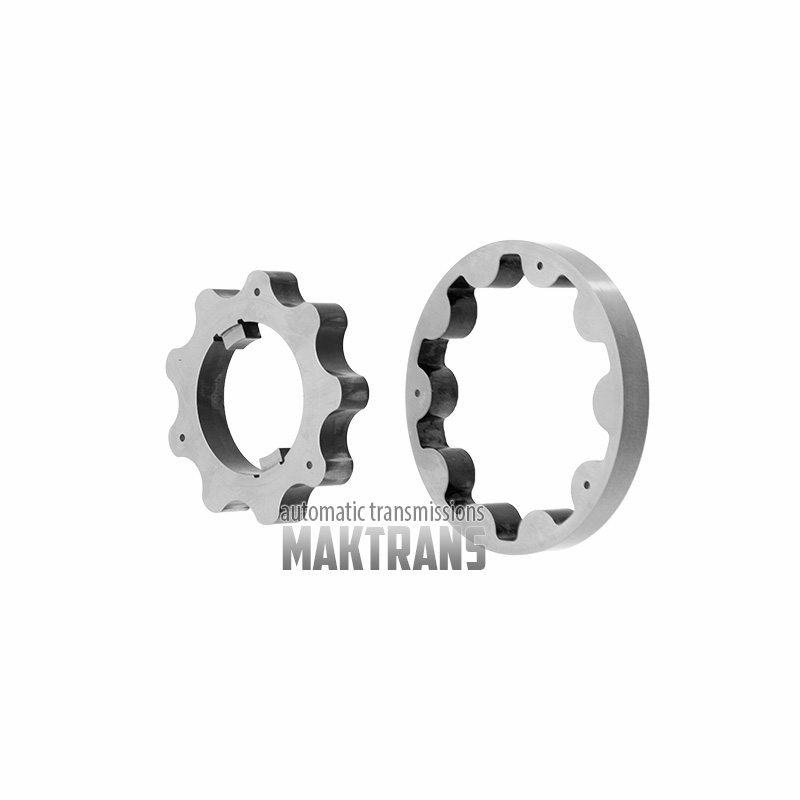

Oil pump gears:
Presenter:
- Thickness - 11.25 mm;
- Number of teeth - 9 pcs.;
- Inner diameter - 43.15 mm;
Slave:
- Thickness - 11.25 mm;
- Number of teeth - 10 pcs.;
- Outside diameter -

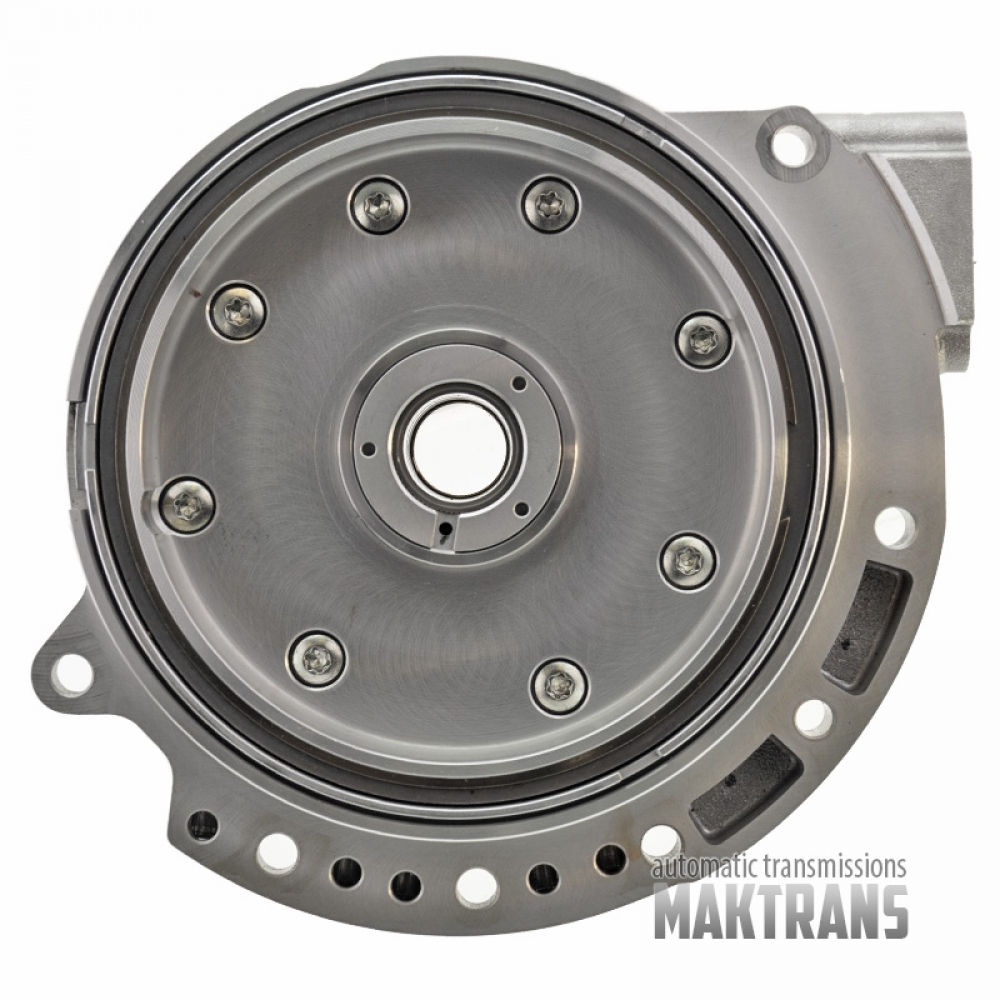

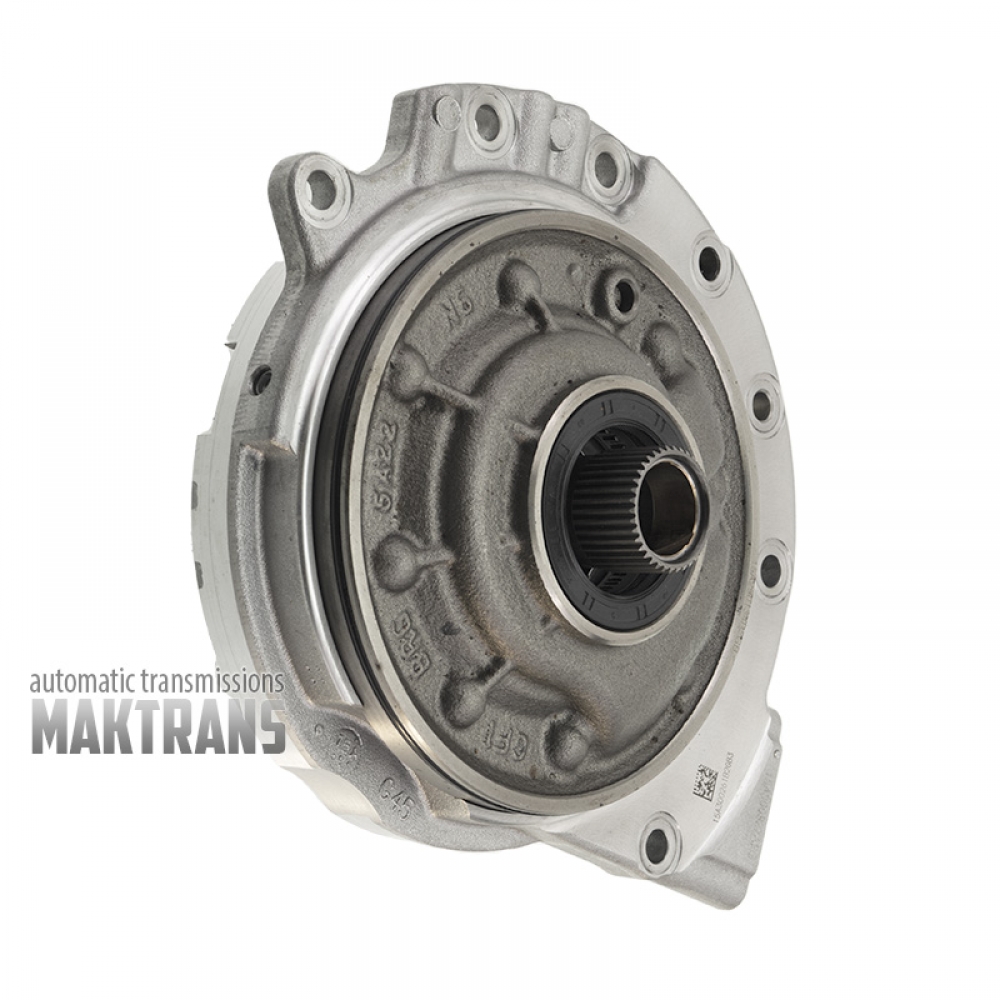

Oil pump hub:
- Overall height - 84 mm;
- Stator height - 49 mm;
- Number of splines on the stator - 38 pcs.;
- The outer diameter of the splined part is 31.15 mm;
- Inner diameter of the sleeve - 22.90 mm;
- Drum Hub Outer Diameter (3-5-R Clutch) - 52.55mm;
- Hub Height (3-5-R Clutch) - 21 mm;
