€42.53
Shipping to United States from €56.99
Main Specifications
Condition (used, new):
used and inspected
Type:
drum
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)

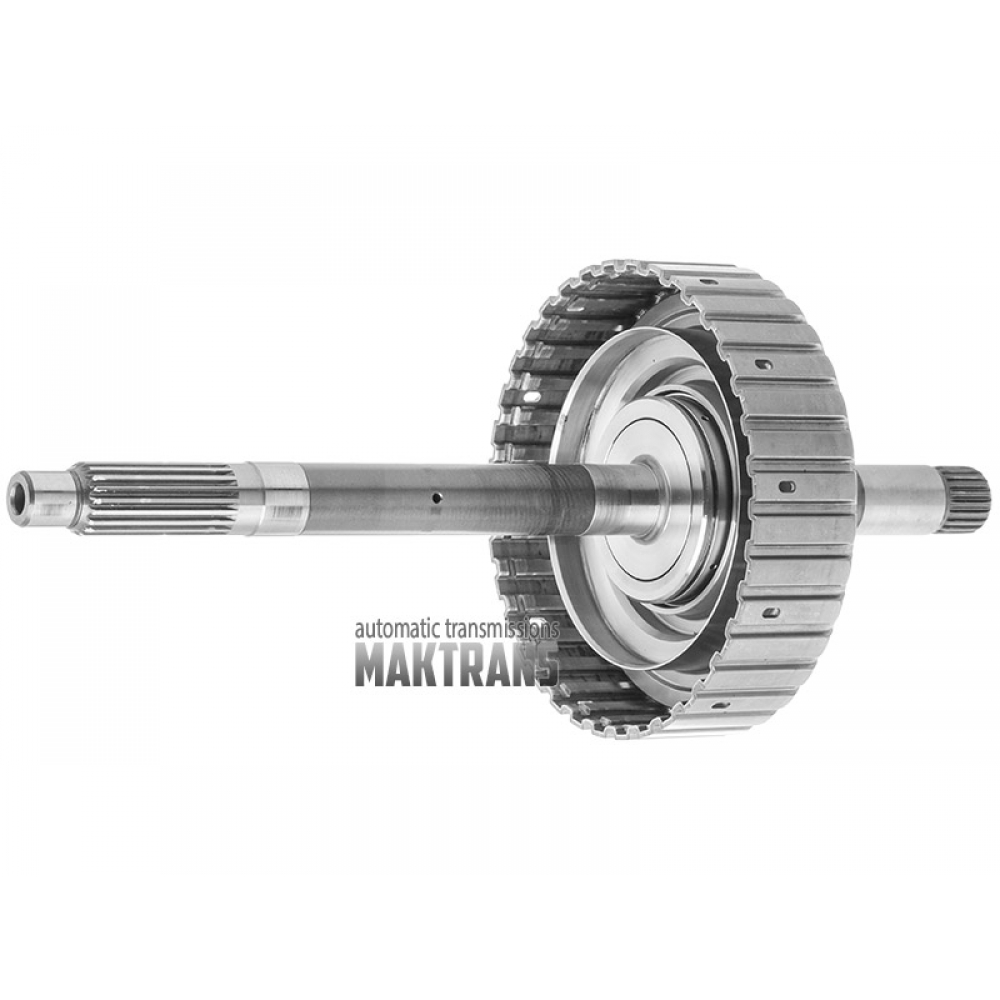

Drum 3-5 / REVERSE with input shaft [total length 339 mm, drum height 39 mm] A6MF1 09-up | 454143B800 [empty, no rubber-to metal bonded pistons, no steel and friction discs 3-5-R Clutch
- Shaft length - 339 mm;
- Shaft working diameter - 22.75 mm | 21.75 mmx2 | 16 mm;
- Diameter of the non-working part of the shaft - 22.25 mm [front part] | 21.45mm [back];
- Outside diameter - 145 mm;
- Drum height - 39 mm;
Number of splines on the shaft:
- Front part - 20 pcs | outer diameter - 21.75 mm | spline length - 17 mm;
- Back part - 19 pcs | outer diameter - 20.80 mm; | spline length - 47 mm;
