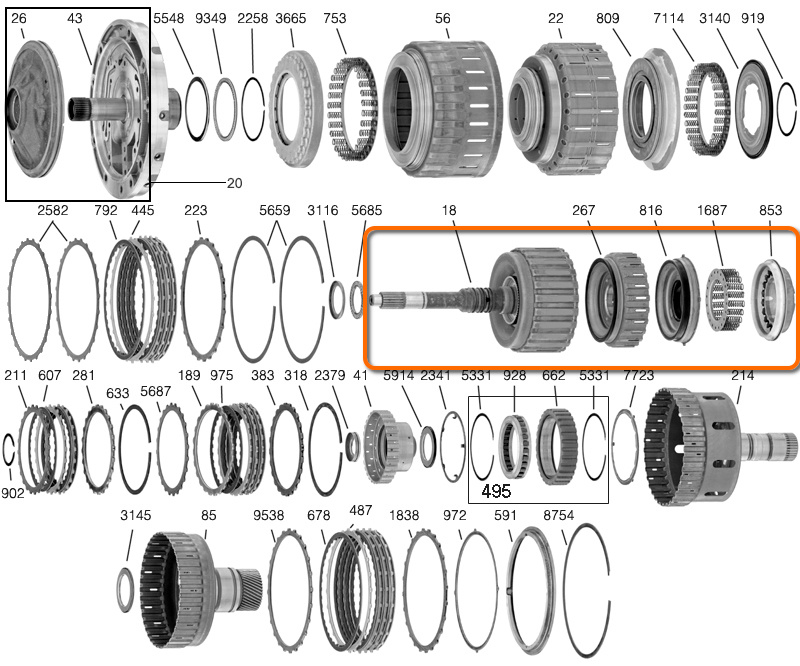

Input shaft, drum C4-C1 Clutch (empty, without hubs) TOYOTA A760 E/F — C4 Clutch — height from piston to stopper 19 mm, C1 Clutch — height from piston to stopper 23 mm

• Overall height - 254 mm;
• Number of splines on the shaft - 20 pcs.;
• The outer diameter of the splined part is 21.30 mm;
• Outer diameter over Teflon rings - 31.50 mm;
• Number of splines at the base of the shaft - 57 mm / outer Ø 60.75 mm;
• Drum height - 79 mm;
• Drum outer diameter - 130.65 mm;

C4 Clutch Drum:

• Height from piston to retaining ring - 19 mm;

Drum C1 Clutch:

• Height from piston to retaining ring - 23 mm;

Tags: 3570130130, 3560250020, 3562150010, 3562150010, 3566850010
