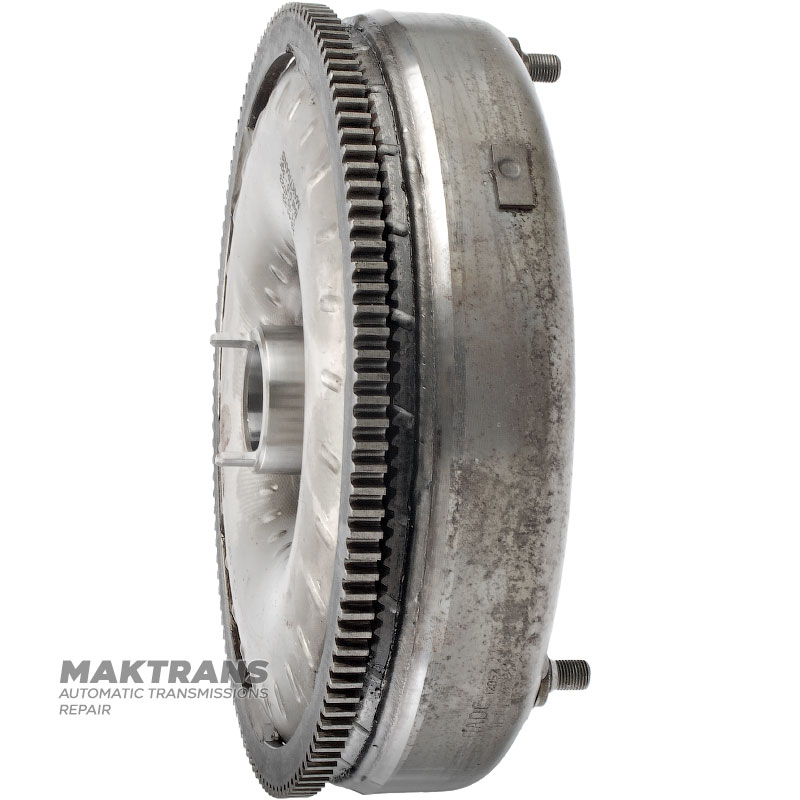

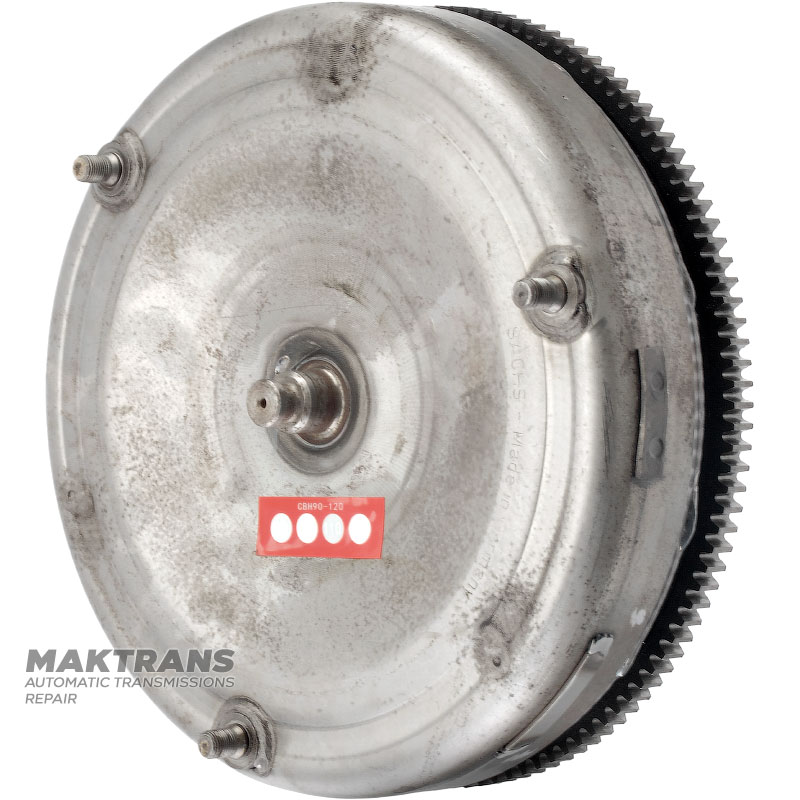

Torque converter 01M 01P 099323571HX — 125 teeth on the ring gear (outer Ø 269.05 mm), outer Ø of the pilot 16 mm

For petrol engines.

QACD, QADB, QADC, QBDB, QBDC, QCDC, QCDR, QDDT

• Total height - 110 mm;
• Neck height - 39 mm;
• Outer diameter of the neck - 50.80 mm;
• Number of teeth on the gear ring - 125 mm;
• Outer diameter of the gear ring - 125 pcs.;
• Outer diameter of gear ring - 269.05 mm;
• Pilot height - 25 mm;
• Pilot outer diameter - 16 mm;
• Number of mounting studs - 3 pcs.;
• The outer diameter of the mounting stud is 9.90 mm;
• Distance from the center of the pilot to the center of the mounting stud - 117 mm;
• Distance between centers of mounting studs - 203 mm;
