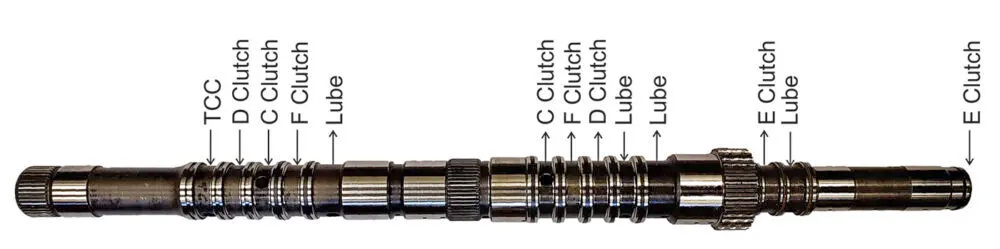

Input shaft FORD 10R80 – HL3P-7015-EB, 202509246 (length 600 mm)

Input shaft Ford 10R80 | HL3P-7015-EB 202509246

• Total shaft length - 600 mm;

Number of splines on shaft [starting from front]:

• 41 pcs - [outer diameter - 30.90 mm];
• 50 splines - [outer diameter - 38.10 mm];
• 32 splines - [outer diameter - 49.20 mm];

Diameters of working parts of the shaft:

• [1] - 31.40 mm;
• [2] - 36 mm;
• [3] - 36 mm;
• [4] - 40 mm;
• [5] - 42.80 mm;
• [6] - 27.10 mm;
• [7] - 27.10 mm;

Teflon shaft rings:

• 5 pcs - [outer diameter of seats - 34.95 mm];
• 5 pcs - [outer diameter of seats - 40.70 mm];

3 rubber sealing rings at the rear of the shaft - [outer diameter of the seats - 32.50 mm];
