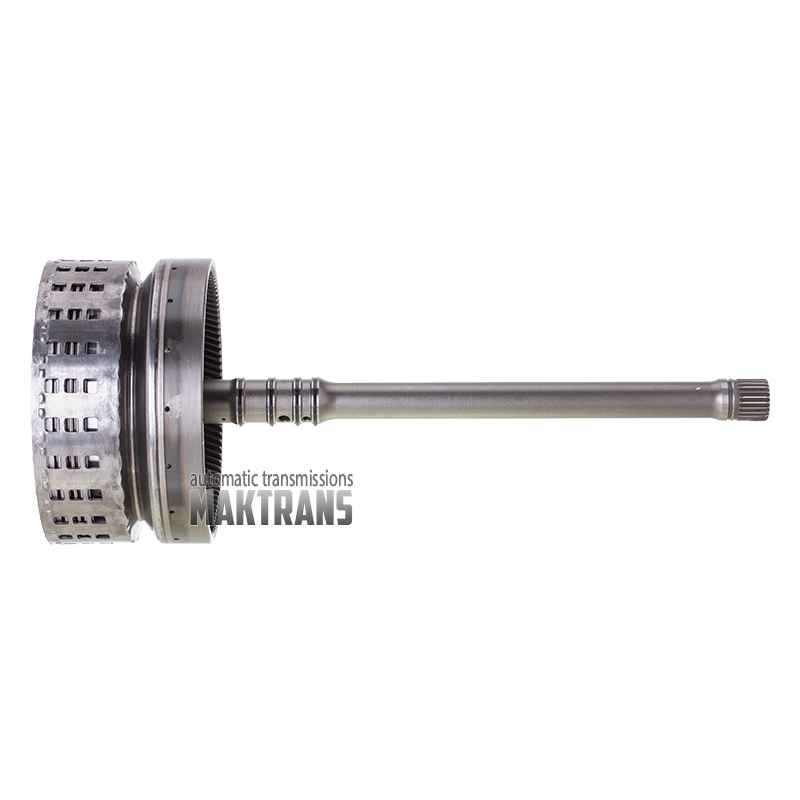

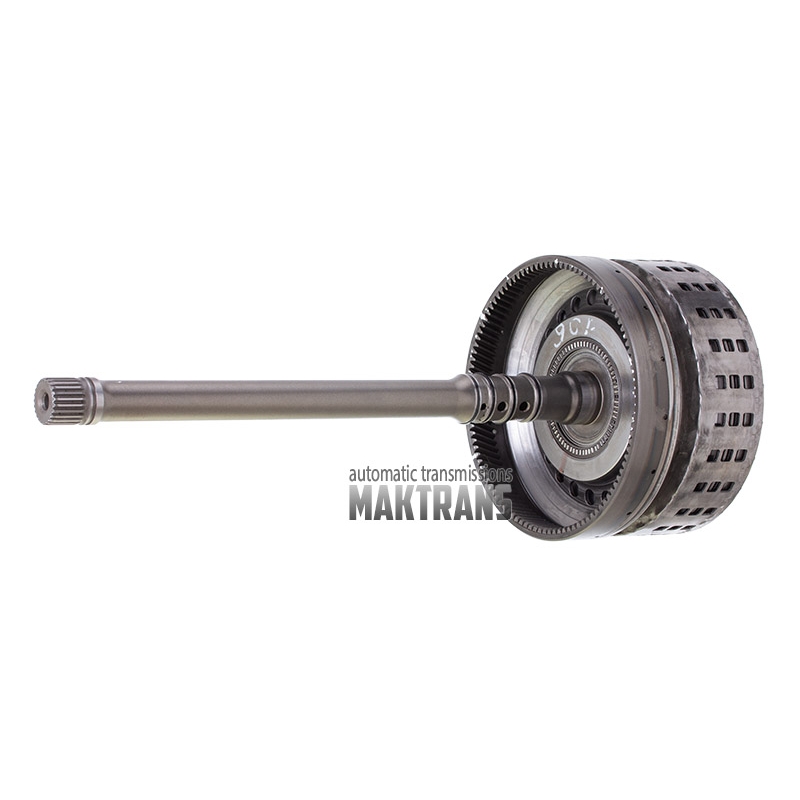

Input shaft with drum 5EAT (total shaft height 435 mm, shaft diameter at the base of the drum 32.80 mm, 5 friction plates)
- Total height - 435 mm.
- The diameter of the working part of the shaft at the base of the drum is 32.90 mm.
- The height of the shaft (from the base of the drum) is 367 mm.
- Drum height (taking into account ring gear) - 98 mm.
- The number of splines on the shaft is 24 pcs.
- The diameter of the splined part is 25.60 mm.
Ring gear:
- The number of teeth is 106 pcs.
- The outer diameter of the ring gear is 173.80 mm.
- The inner diameter of the ring gear is 157.40 mm.
- The height of the ring gear (gear part) is 16.70 mm.
Pack of steel and friction plates:
- The total thickness of the pack is 23 mm.
Thrust plate (clamping):
- Thickness - 4.20 mm.
- The inner diameter is 144 mm.
- The number of teets is 24 pcs.
- The number of plates in the set is 1 pcs.
Friction plate:
- Thickness - 1.60 mm.
- Outer diameter - 160.65 mm.
- The number of teeth is 60 pcs.
- The number of plates in the set is 5 pcs.
Steel plate:
- Thickness - 1.80 mm.
- The inner diameter is 144 mm.
- The number of teeth is 24 pcs.
- The number of plates in the set is 5 pcs.
