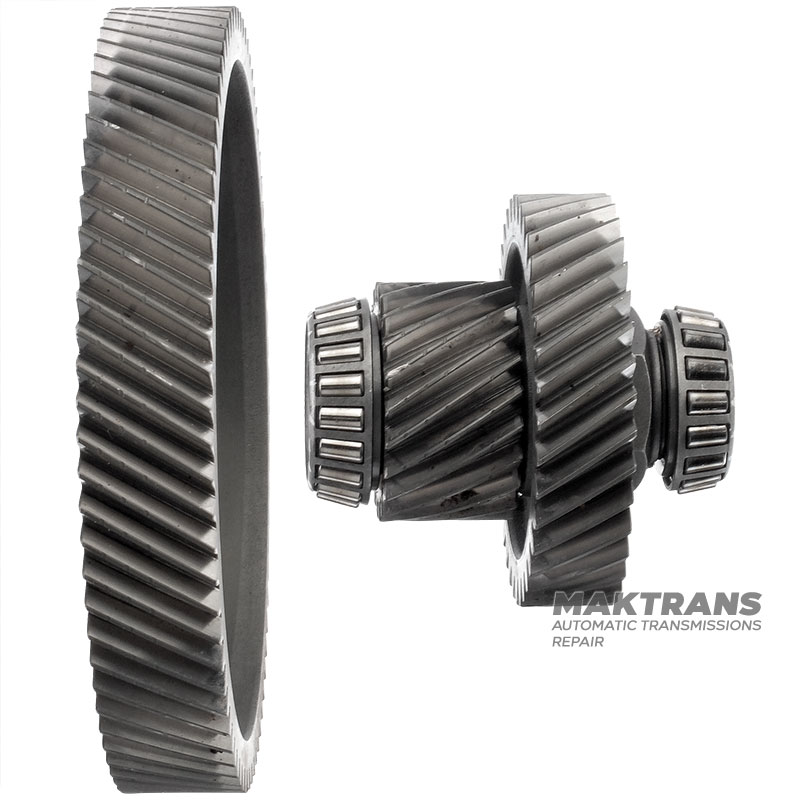

Differential primary gearset 75/22 K310 CVT

Differential primary gearset 75/22 K310 CVT

Differential intermediate shaft:

• Overall height - 103 mm.

Intermediate shaft bearings:

The shaft is equipped with two tapered radial bearings front and rear relative to the location of the shaft in the transmission:

• Front bearing - 16 rollers
• Rear bearing - 18 rollers

Shaft gear 22 teeth:

• Number of teeth - 22 pcs.
• The outer diameter of the gear is 59.40 mm.

Shaft gear 37 teeth :

• Outer diameter - 102.70 mm.
• Gear width - 23.50 mm.

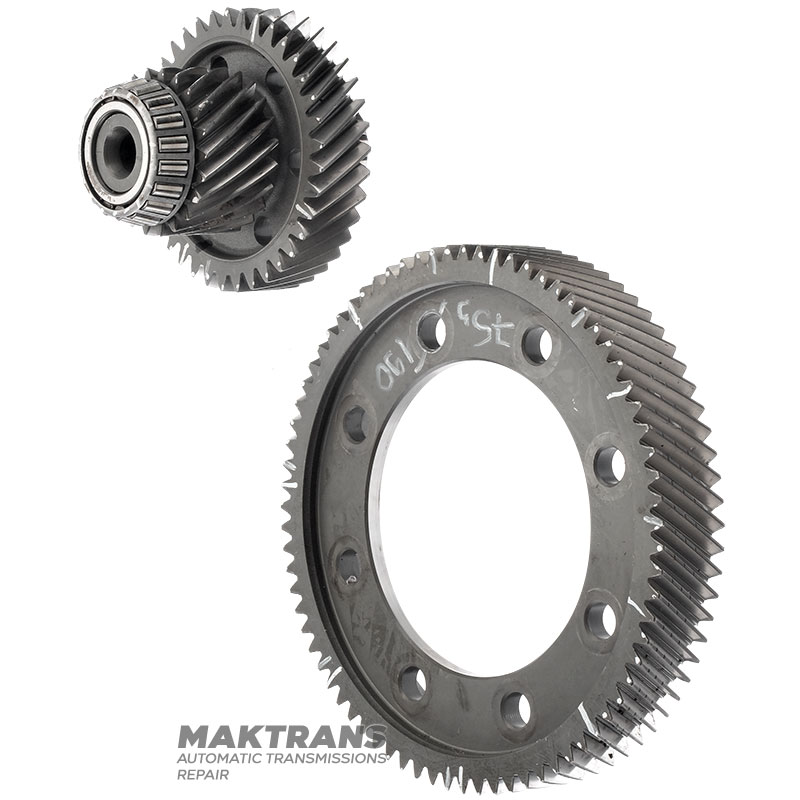

Differential ring gear:

• Number of teeth - 75 pcs.
• The outer diameter of the gear is 190 mm.
• Gear width - 30.05 mm.
• Number of fixing holes - 8 pcs.
• Mounting hole diameter - 12.25 mm.
• The inner diameter of the gear along the skirt of the mounting holes is 109.80 mm.
• The inner diameter of the differential housing seat is 162.80 mm.
• The depth of the differential seat is 14 mm.
