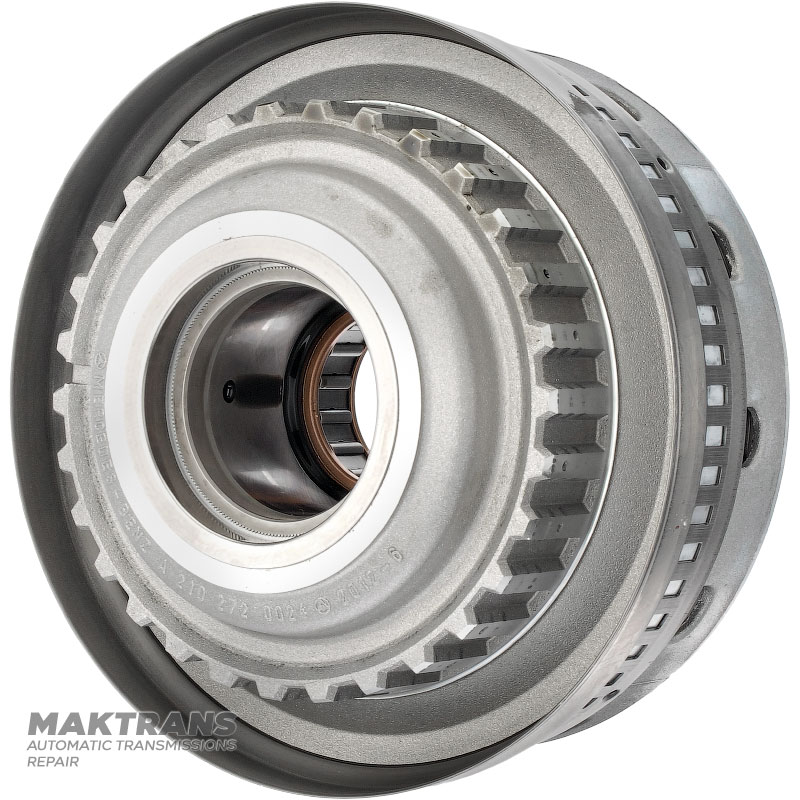

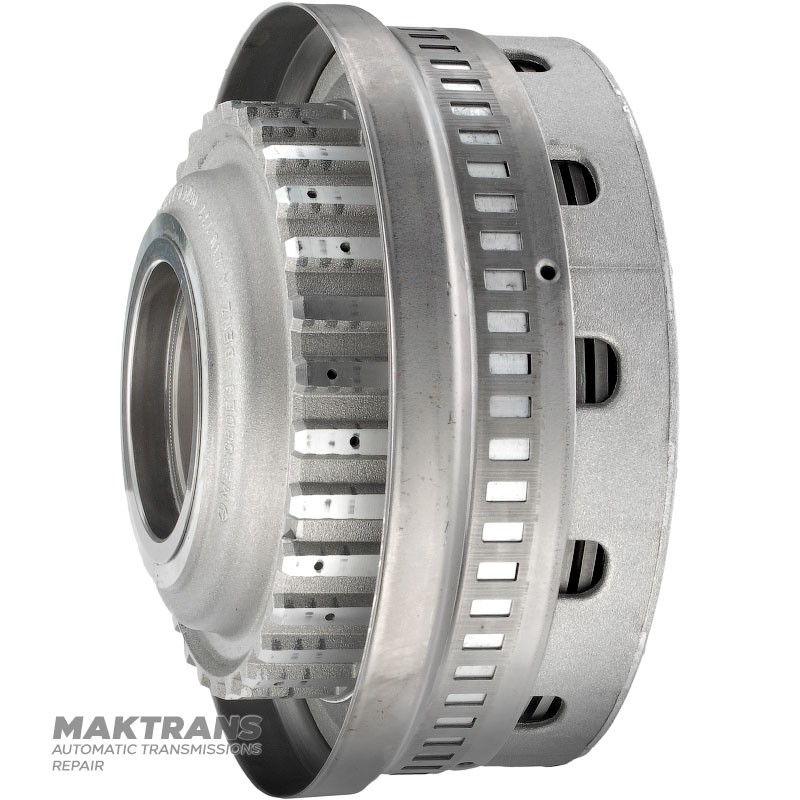

K1 Clutch Drum Mercedes-Benz 722.6 R2102720024B - 50-tooth gear (ext. Ø 81.50 mm), 4 double-sided friction discs (total kit thickness 23.30 mm)

K1 Clutch Drum:

• Overall height - 104 mm;
• The outer diameter of the drum along the speed sensor ring is 192.15 mm;
• Height from piston to retaining ring (along the inner side of the drum) - 26 mm;
• Number of teeth on the sun gear - 50 pcs.;
• Sun gear outer diameter: 81.50mm;

  ---



K1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 23.30 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.20 mm;
• Outer diameter - 173.05 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2.80 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.50 mm;
• Inner diameter - 154.05 mm;
• Number of teeth - 3 pcs.;
• Number of discs in the set - 1 pc.;

Tags: R 210 272 00 24 B, R2102720024B
