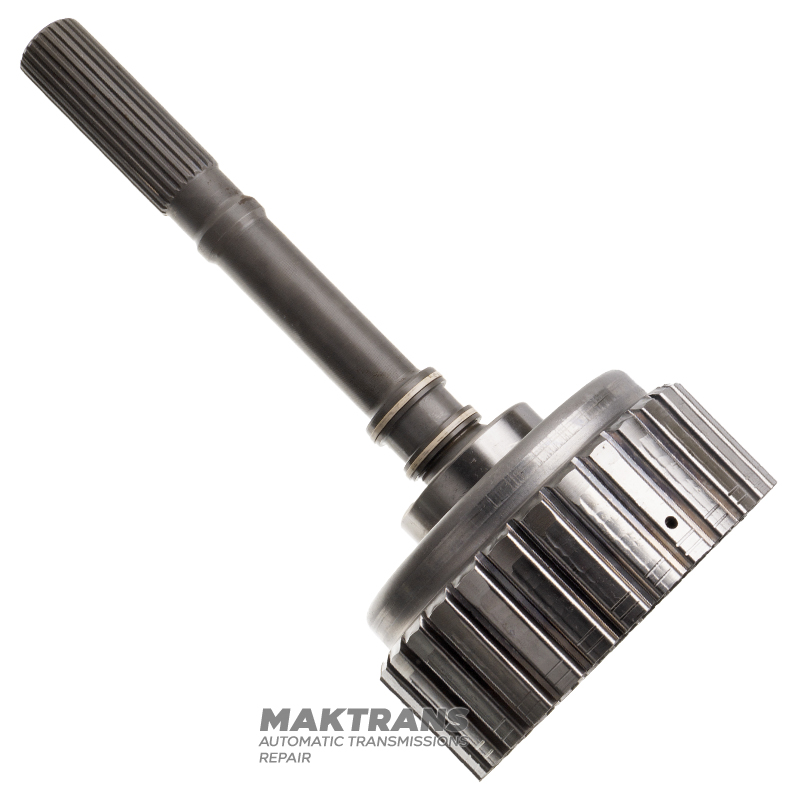

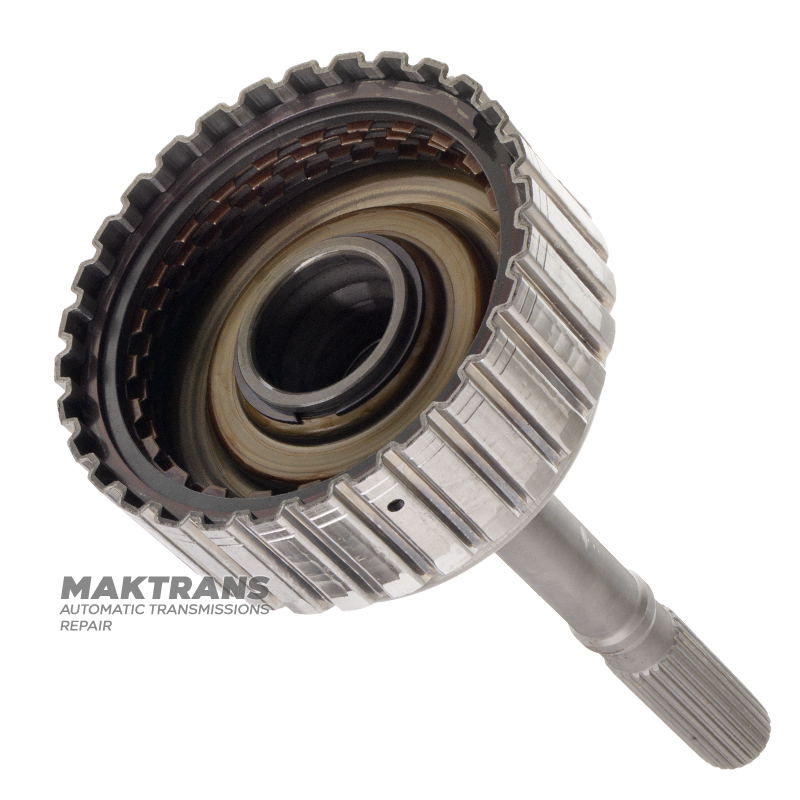

Rear-wheel drive clutch assembly with shaft Lineartronic CVT TR580 — 33123AA290

• Overall length - 265 mm;
• Number of splines - 24 pcs.;
• The outer diameter of the splined part is 24.55 mm;
• Outer diameter over Teflon rings - 29.55 mm;
• Drum outer diameter - 130.40 mm;
• Height from piston to retaining ring - 21 mm;

Set of steel and friction discs:

• The total thickness of the set is 20.75 mm;

Support disk:

• Thickness - 3.30 mm;
• Inner diameter - 104.60 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 118 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.65 mm;
• Inner diameter - 104.60 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Pressure disc:

• Thickness - 3.70 mm;
• Inner diameter - 104.60 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;
