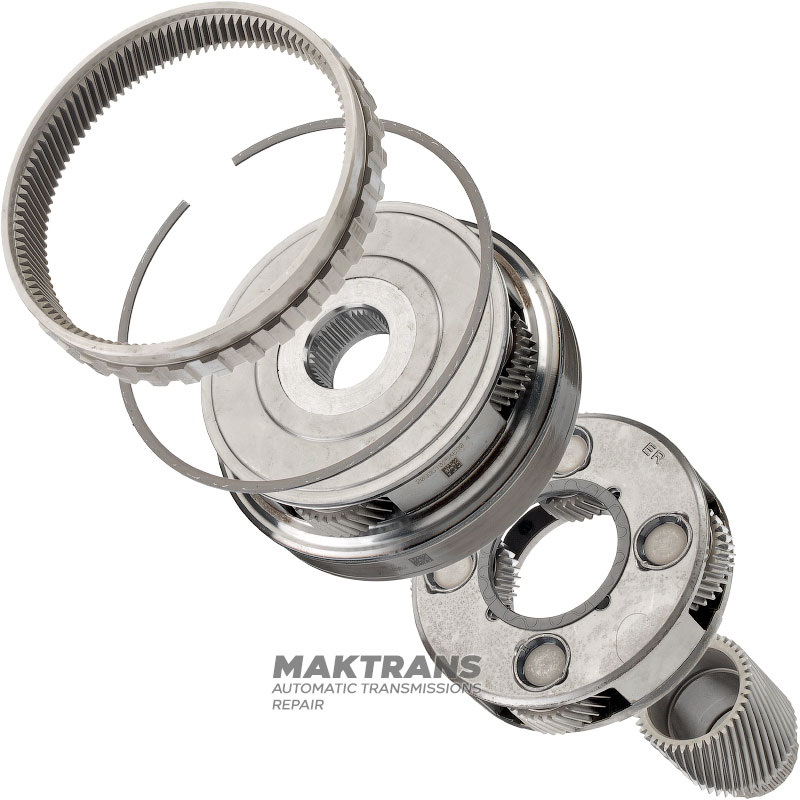

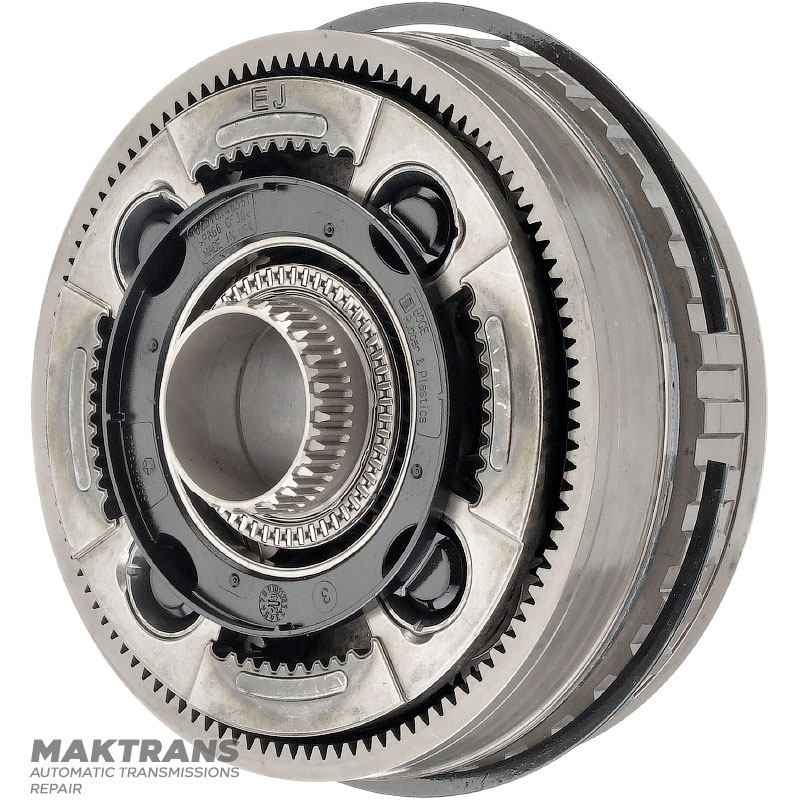

Planetary kit P4 P3 (front and central planet), automatic transmission ZF 9HP48 CHRYSLER 949TE 3235D04236889 047526646AA0

Planetary kit P4 P3 (front and central planet), automatic transmission ZF 9HP48 CHRYSLER 949TE 3235D04236889 047526646AA0 ​

Final gear:

• The number of teeth is 42 pcs.
• The number of slots is 44 pcs.

Front planet gear P3:

• The number of satellites is 4 pcs.
• The number of zuy on the satellite is 34 pcs.
• Satellite diameter - 47.70 mm
• Satellite height - 15.50 mm
• The number of teeth of the ring gear - 110 pcs

Central Pranet Gear P4:

• The number of satellites is 4 pcs.
• The number of zuy on the satellite is 34 pcs.
• Satellite diameter - 47.70 mm
• Satellite height - 15.50 mm
• The number of teeth of the ring gear is 110 pcs.

Ring gear:

• Overall height - 26.10 mm;
• Outer diameter of teeth - 161.65 mm;
• Outer diameter of gear - 157.05 mm;
• Number of teeth - 110 pcs.;
• Number of teeth on the outer side - 36 pcs.;

• ​
