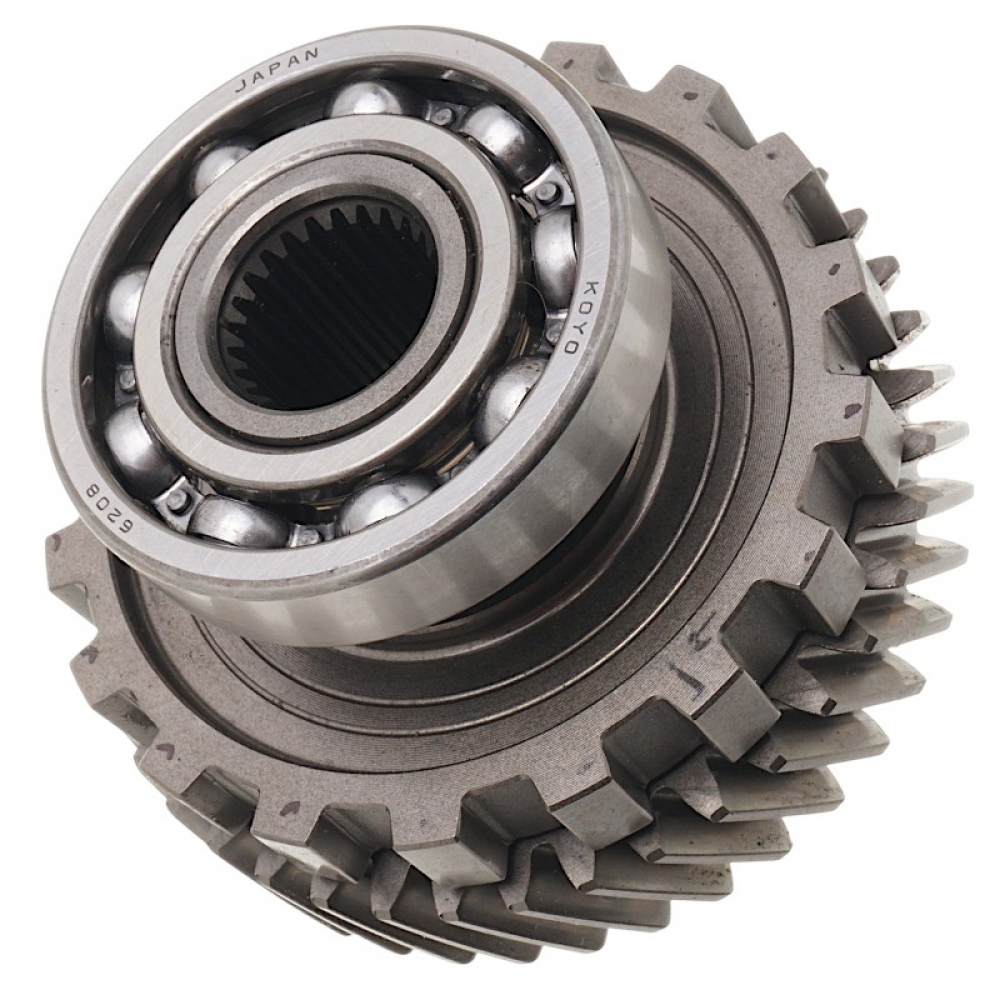

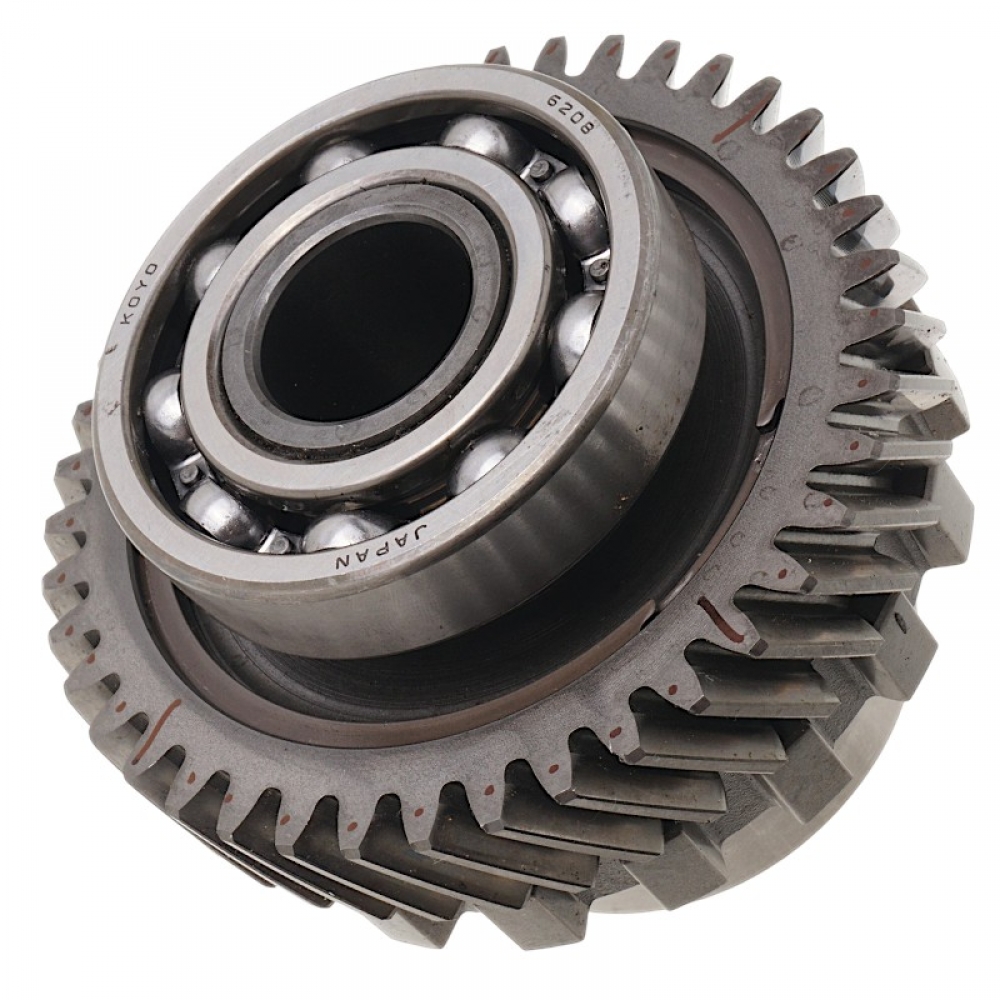

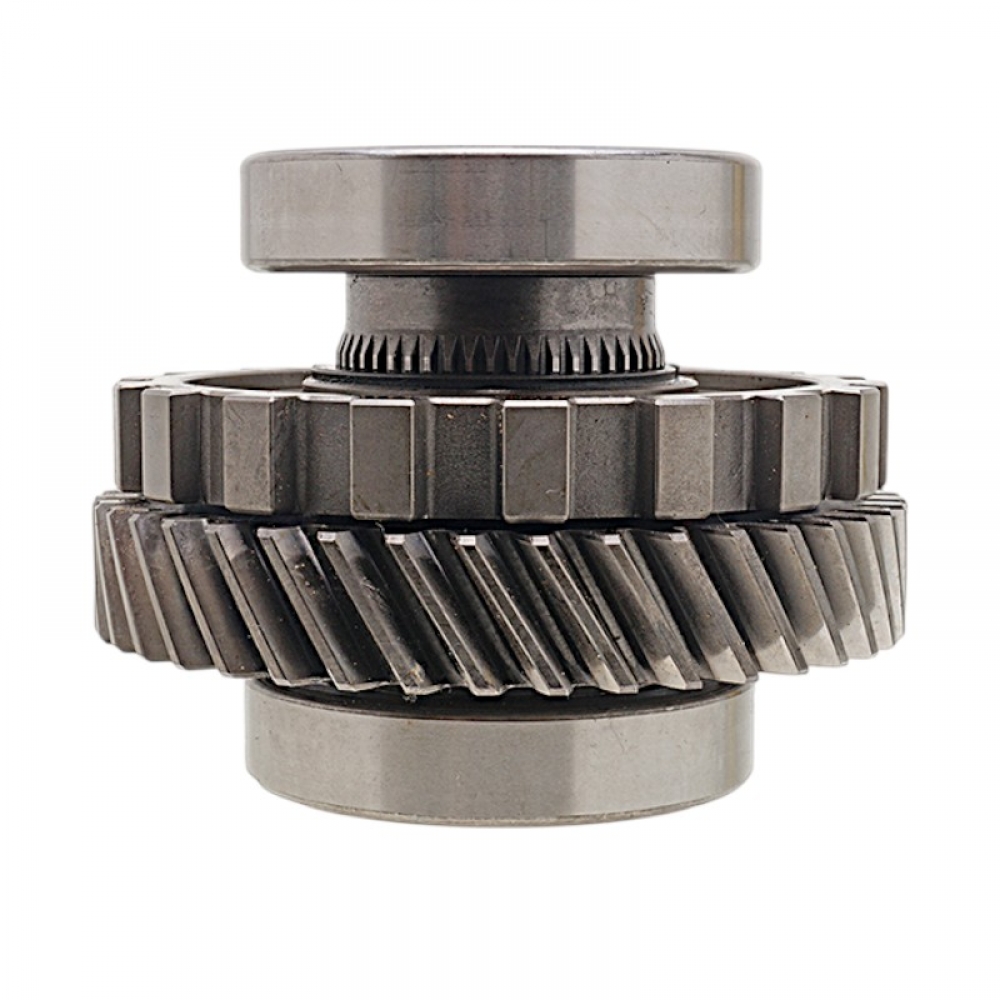

Intermediate gear (41 teeth, diameter 125.35 mm) of the differential drive 5EAT 806240060 31457AA060 31457AA110 complete with bearings and parking gear (18 teeth, diameter 119 mm) 05-up

Intermediate gear (41 teeth, diameter 125.35 mm) differential drive 5EAT 806240060 31457AA060 31457AA110 complete with bearings and parking gear (18 teeth, diameter 119 mm) 05-up

• Total height - 96 mm.

Bearings:

• The outer diameter of the bearings is 79.95 mm.
• Bearing thickness: 17.90 mm.

Intermediate gear:

• Number of gear teeth - 41 pcs.
• Gear diameter: 125.35 mm.
• Gear thickness: 21 mm.

Parking gear:

• Number of teeth of parking gear - 18 pcs.
• Gear diameter: 119 mm.

Splined internal part:

• Number of splines on the inner side - 25 pcs.
• Internal diameter along splines - 26.50 mm.
