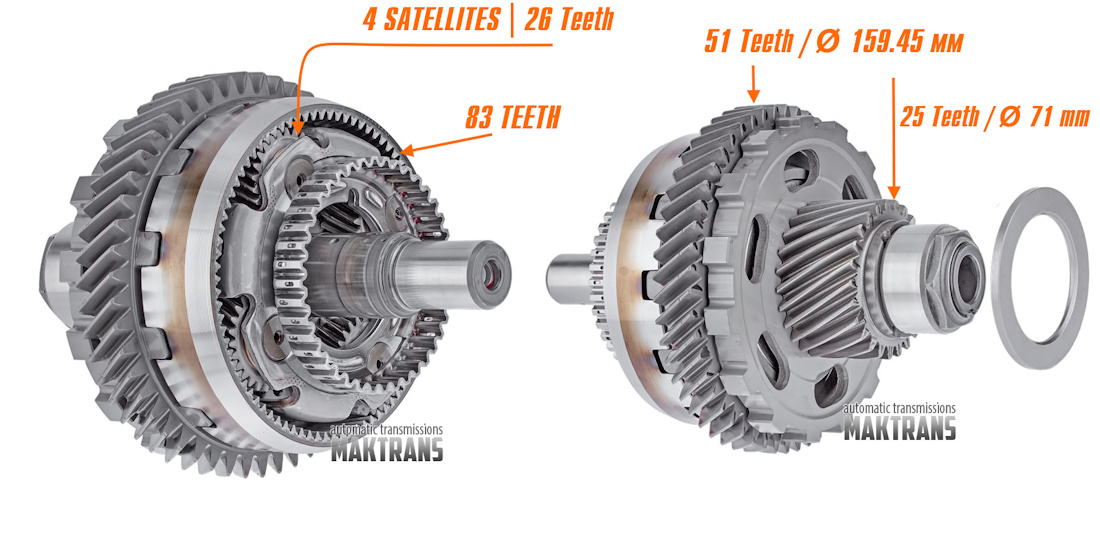

Intermediate shaft, planetary gear UNDERDRIVE TOYOTA U240E, U241E — 4 satellites (26 teeth), differential drive pinion 25 teeth (outer Ø 71 mm) | driven pinion 51 teeth (outer Ø 159.45 mm)

• Overall height - 225 mm;
• Bearing race outer diameter - 48 mm;

Differential drive pinion:

• Number of teeth - 25 mm;
• Gear outer diameter - 71 mm;

Parking gear (without notches):

• Number of teeth - 15 pcs.;
• Gear outer diameter - 147.55 mm;

Driven gear (1 notch):

• Number of teeth - 51 pcs.;
• Outer diameter - 159.45 mm;

Planetary gear:

• Number of satellites - 4 pcs.;
• Number of teeth on the satellites - 26 pcs.;
• Number of teeth on the ring gear - 83 pcs.;

Hub outer diameter - 89.25 mm;
