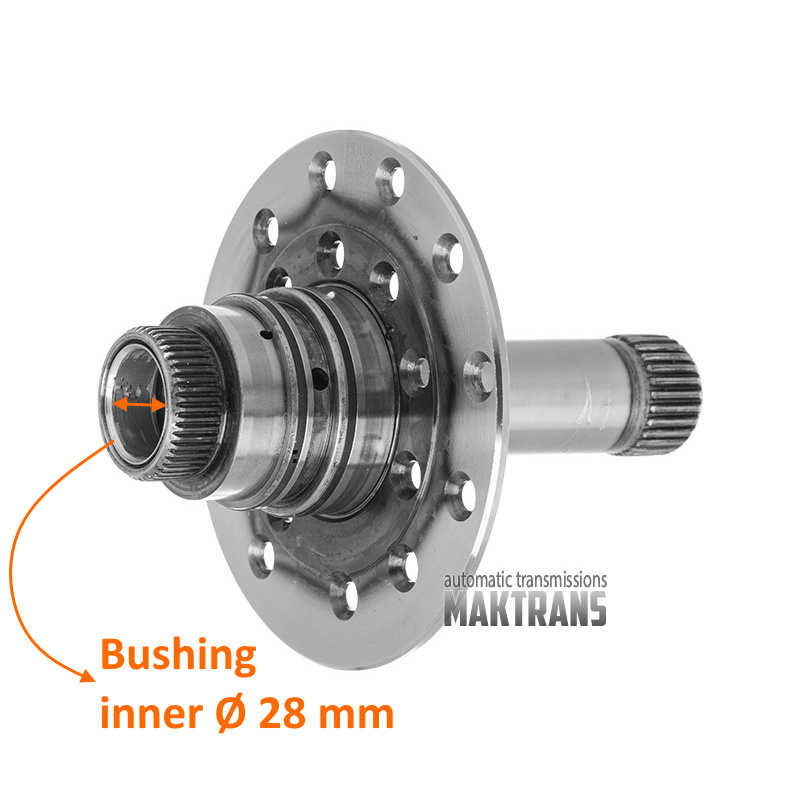

Oil Pump Hub, Drum Hub A Clutch 6R60, 6R75, 6R80 - Overall Height 178mm, 27 Splines (OD 35.10mm), Int. Bushing Ø 28mm

• Overall height - 178 mm;


Front side of the hub (torque converter mounting side, without bushing on the inner side of the stator):

• Stator height - 113 mm;
• Number of splines - 27 pcs.;
• Spline diameter: 35.10 mm;
• Inner diameter of the sleeve - 23 mm;


Hub mounting plate:

• Outer diameter - 143 mm;


Rear side of the hub (Forward A drum installation side):

• Diameters of the working parts of the hub - 59.80 mm / 49.95 mm;
• Number of splines - 49 pcs.;
• The outer diameter of the splined part is 39.40 mm;
• Inner diameter of the sleeve - 28 mm;
