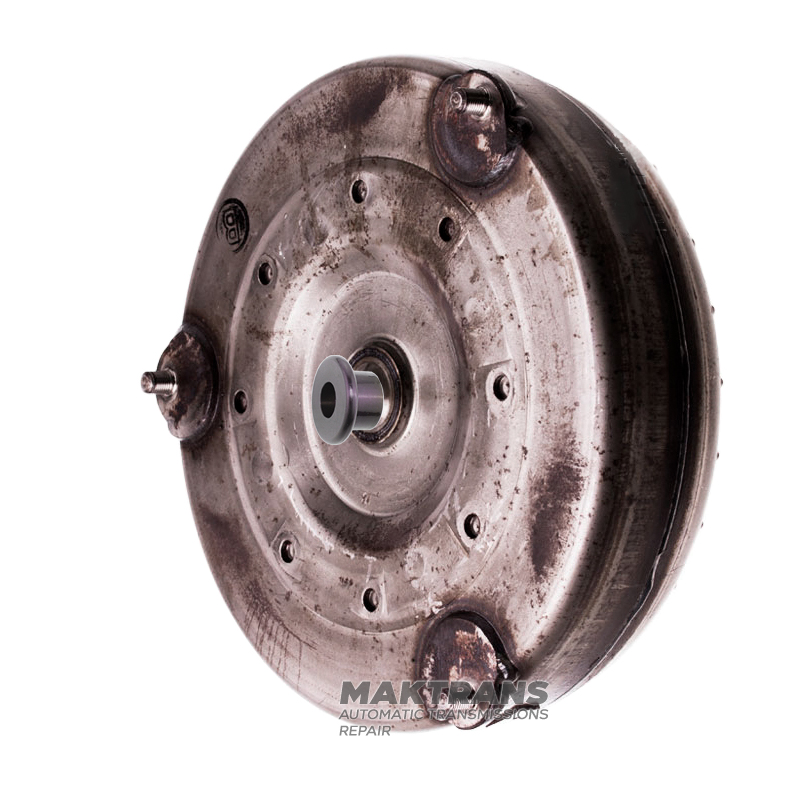

Torque converter (with protruding flat surface of mounting pins) DP0 AL4 97-up 2001.A9 7700109689 8200150155 8200480078SOLD WITH GUIDE BUSHING (adapter from 16 mm to 40 mm)

Torque converter (with protruding flat surface of mounting pins) DP0 AL4 97-up 2001.A9 7700109689 8200150155 8200480078 (with protruding flat surface of mounting pins)

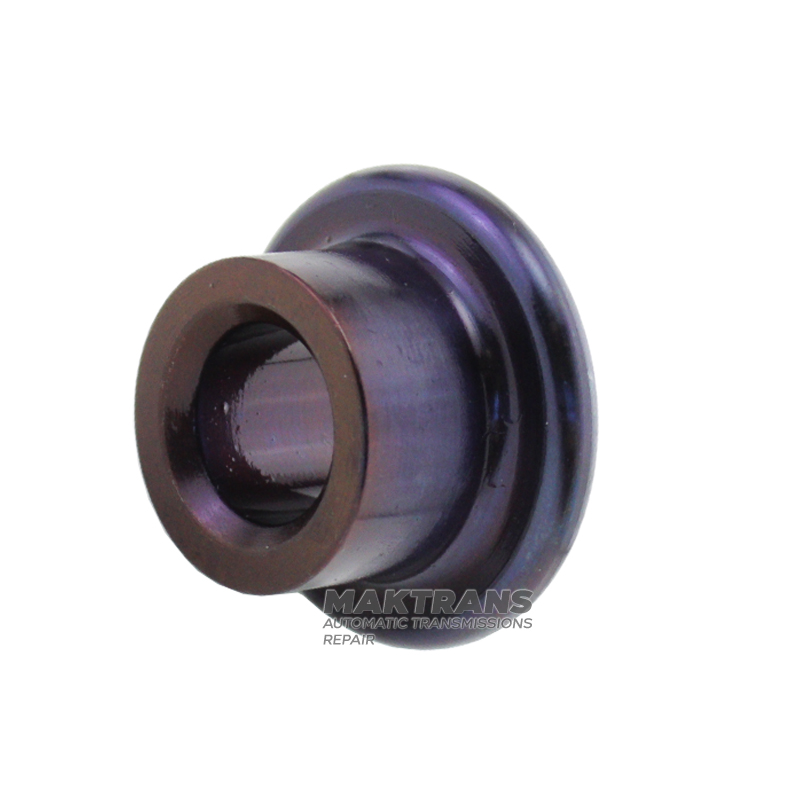

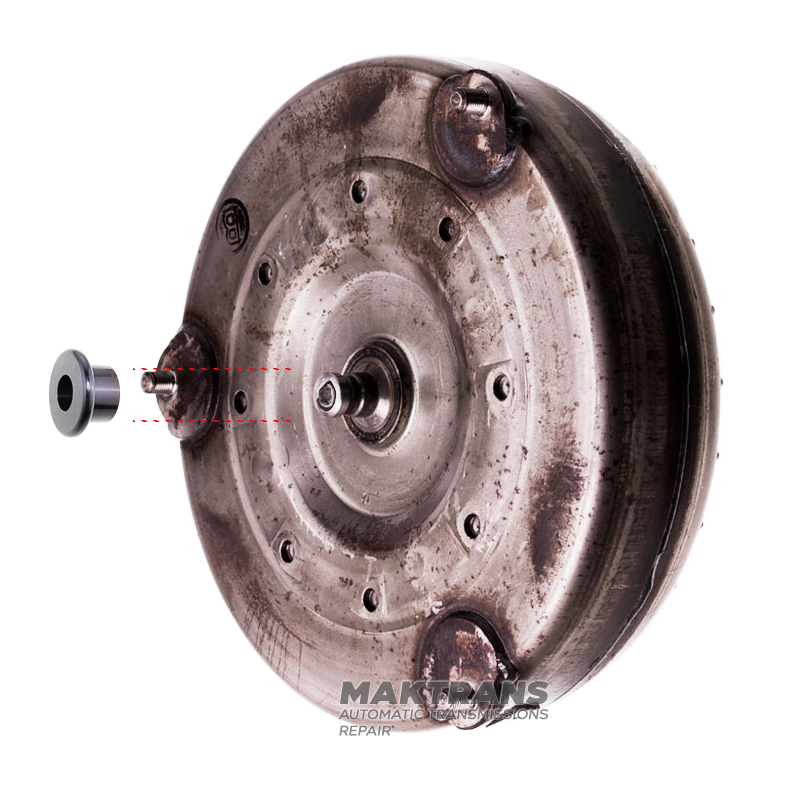

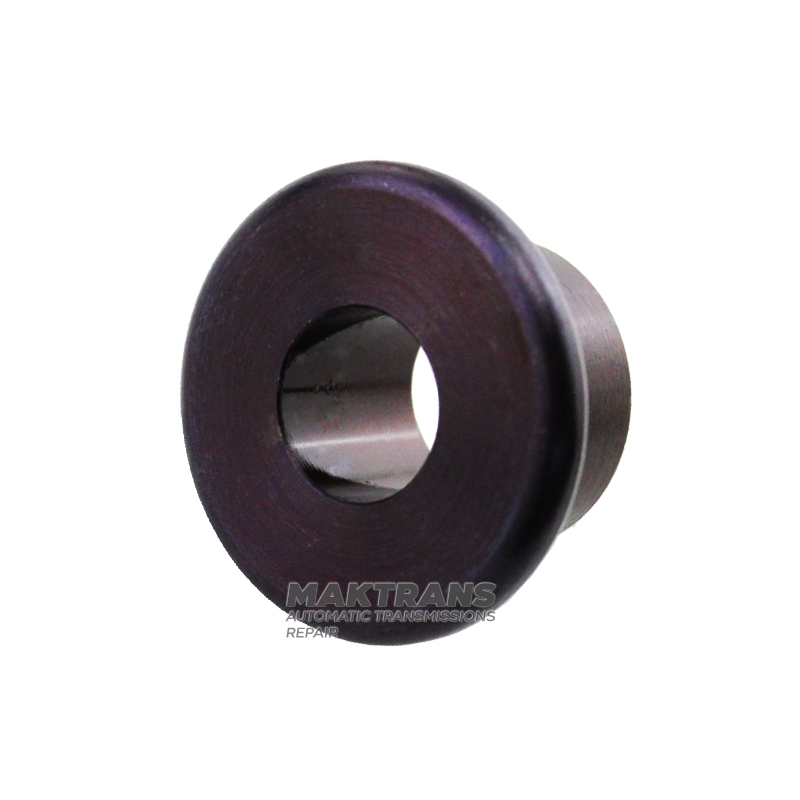

SOLD WITH GUIDE BUSHING (adapter from 16 mm to 40 mm)

• Total height - 106 mm.
• Torque converter height is 94 mm from bottom cover to upper cover.
• The outer diameter of the torque converter is 244 mm.

Torque converter neck:

• Neck height - 36.50 mm.
• The diameter of the neck is 54.40 mm.

Torque converter rear cover:

• The radius (from the center of the pilot to the center of the mounting pin) is 117.20 mm.
• The distance between the centers of the mounting pins is 204 mm.

Mounting pins:

• The number of mounting pins 3 pcs.
• Mounting pin diameter 8.90 mm.
• Mounting pin height 11 mm.

Pilot (in the center of the torque converter rear cover):

• Height - 26 mm.
• The diameter of the pilot 16 mm.
