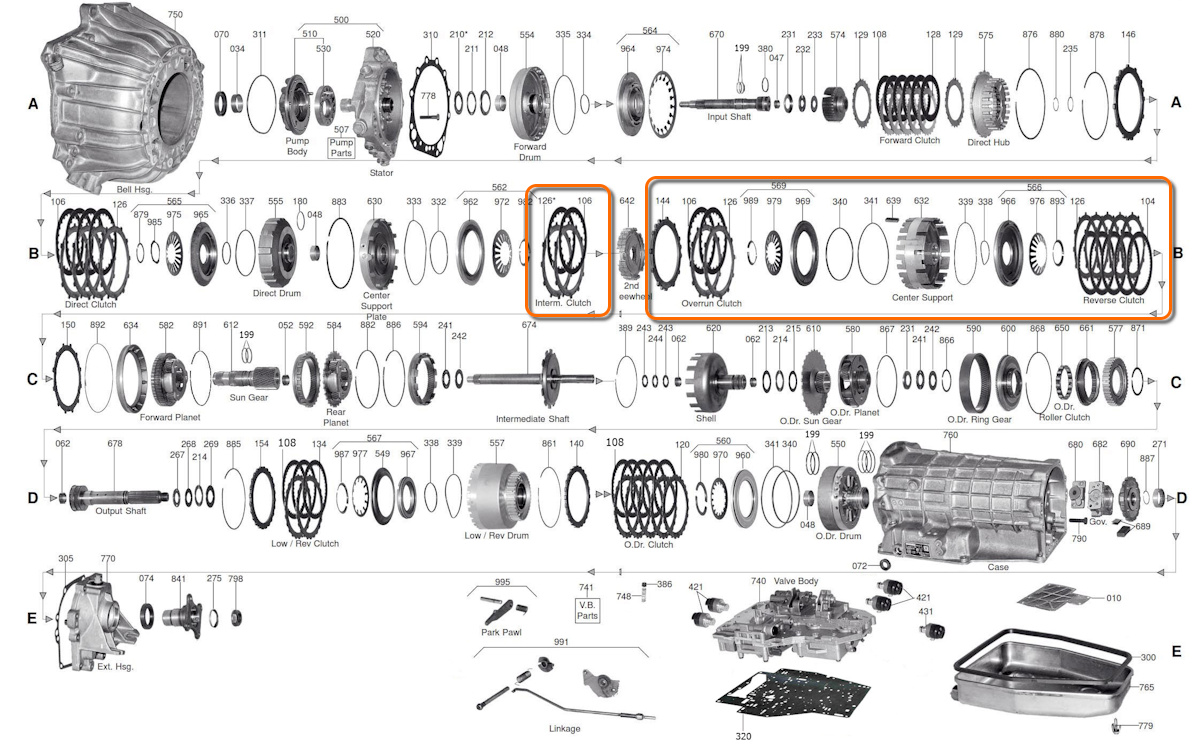

Drum Intermediate, Overrun, Reverse Clutch ZF 4HP22, 4HP24, 4HP24A — 1043417065, 1043417041 (Friction discs Intermediate, Overrun Clutch — 48 teeth)

Drum :

• Overall height - 67.50 mm;
• Inner diameter - 34.85 mm;
• Outer diameter - 156.95 mm;
• Number of splines on the hub - 60 pcs.;
• Outer diameter of spline part - 49.80 mm;

Intermеdiate Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 7.20 mm;


Friction disc:

• Thickness - 1.60 mm;
• Outer diameter -142.40 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 2 pcs.;

Steel disk:

• Thickness - 2.16 mm;
• Inner diameter - 119.30 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 2 pcs.;

Overrun Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 15.25 mm;

Support disk:

• Thickness - 4 mm;
• Inner diameter - 119.30 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter -142.40 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 2.15 mm;
• Inner diameter - 119.30 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 3 pcs.;

Reverse Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 16.25 mm;

Support disk:

• Thickness - 2.14 mm;
• Inner diameter - 122.05 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter -142.70 mm;
• Number of teeth - 58 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.22 mm;
• Inner diameter - 122 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 5 pcs.;
