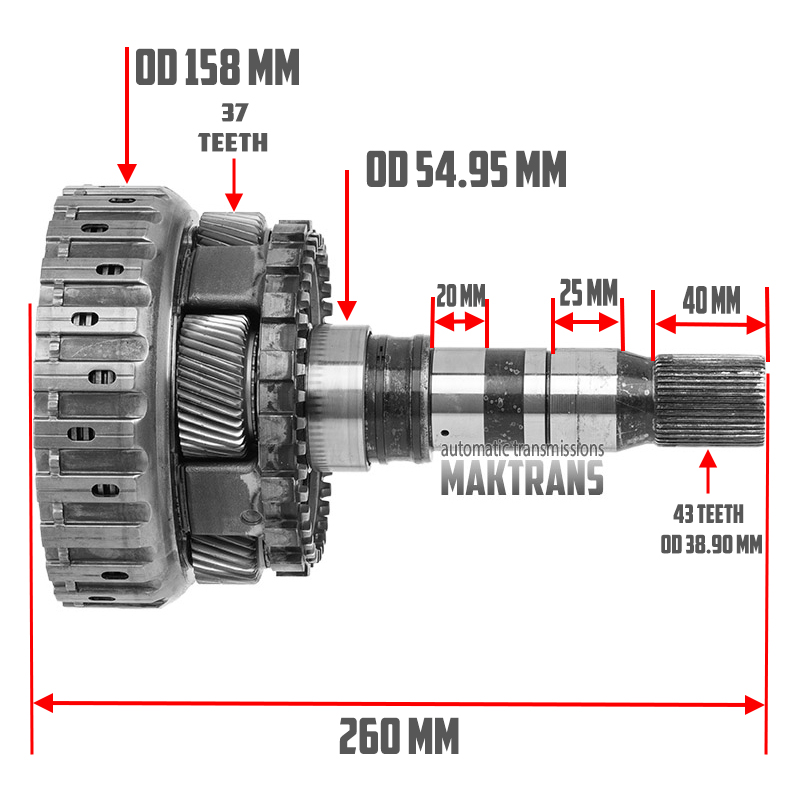

Rear Planetary Gear No.4 Output Shaft ZF 8HP45 4WD Assy - Overall Height 260mm, 43 Splines, 4 Pinions (37 Teeth on Pinions)

• Overall height - 259.50 mm.

Output shaft:

• Number of splines - 43 pcs.
• Working part diameter - 38.90 mm.
• The diameter of the housing bushing at the base of the shaft is 55 mm

Teflon shaft rings:

• Number of Teflon rings - 2 pcs.
• Diameter of Teflon rings - 47.45
• Thickness - 2.6 mm.

Number of teeth of parking gear - 18 pcs.

Planetary gear No. 4

• Number of satellites - 4 pcs.
• Number of satellite teeth - 37 pcs.
• The height of the toothed part of the satellite is 23 mm.

D Clutch Clutch Pack Steel and Friction Disc Kit

The total thickness of the package is 20.70 mm.

Support disk:

• Original number - 1090142372
• Thickness - 3 mm.
• Inner diameter - 125.70 mm
• Number of teeth - 24 pcs.
• Number of disks in the set - 1 pcs.

Steel disk:

• Thickness - 2.10 mm.
• Inner diameter - 125.70 mm
• Number of teeth - 24 pcs.
• Number of disks in the set - 4 pcs

Friction disc:

• Thickness - 2.10 mm.
• Outer diameter - 147.50 mm
• Number of teeth - 54 pcs.
• Number of disks in the set - 4 pcs.

Spring disc:

• Thickness - 0.55 mm.
• Inner diameter - 128.10 mm
• Number of teeth - 24 pcs.
• Number of disks in the set - 1 pcs.

Retaining ring:

• Thickness - 2.55 mm.
