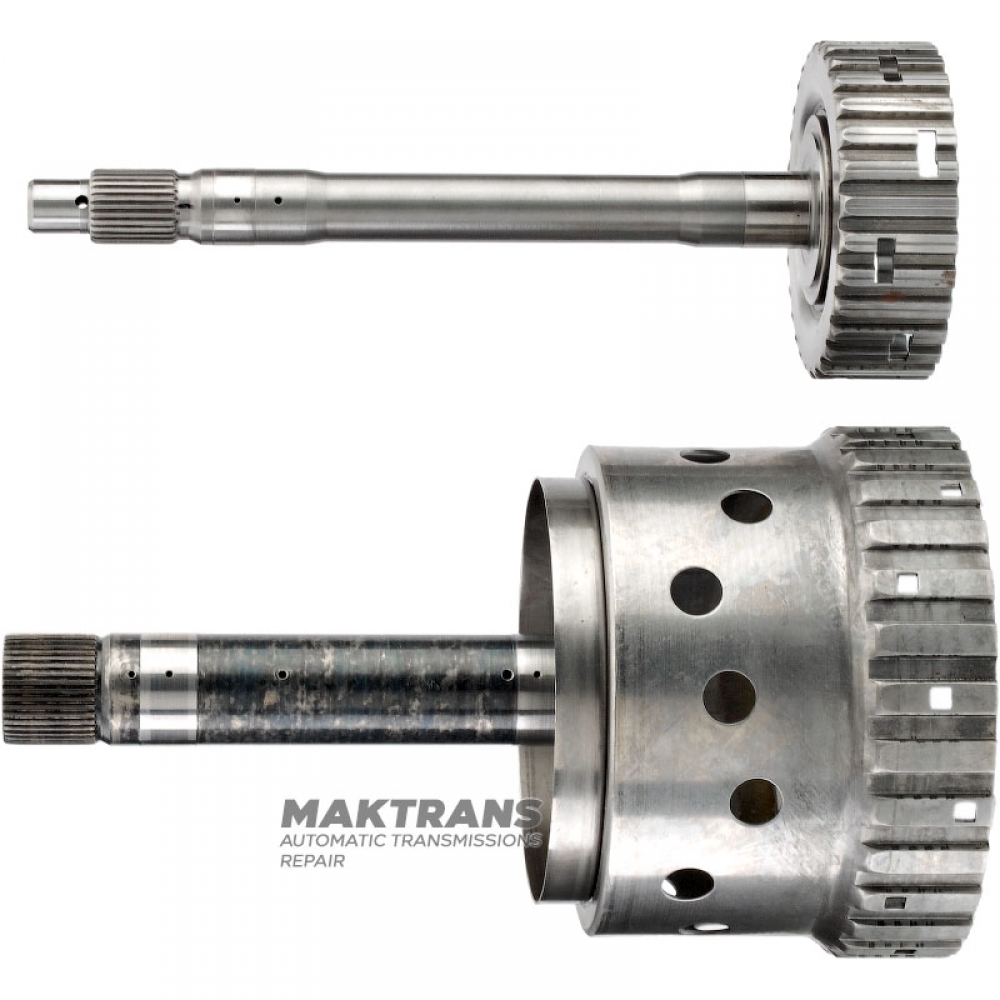

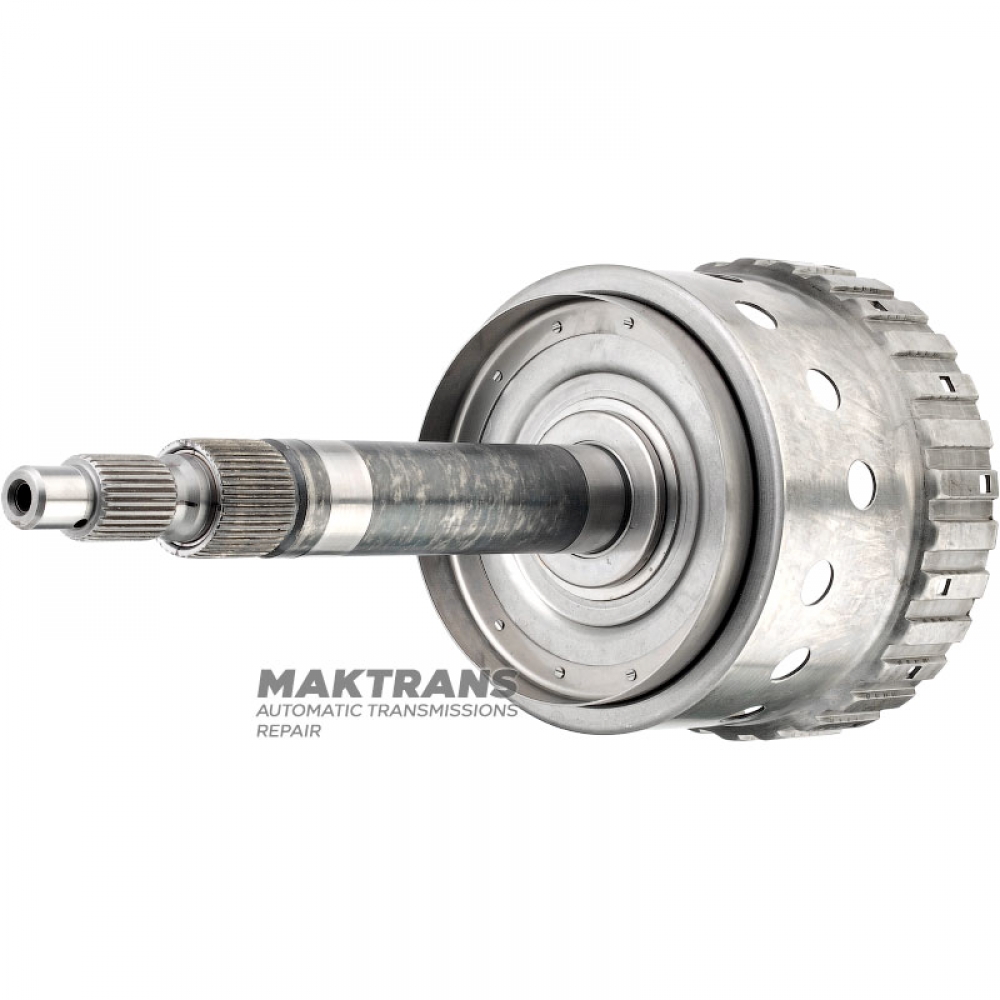

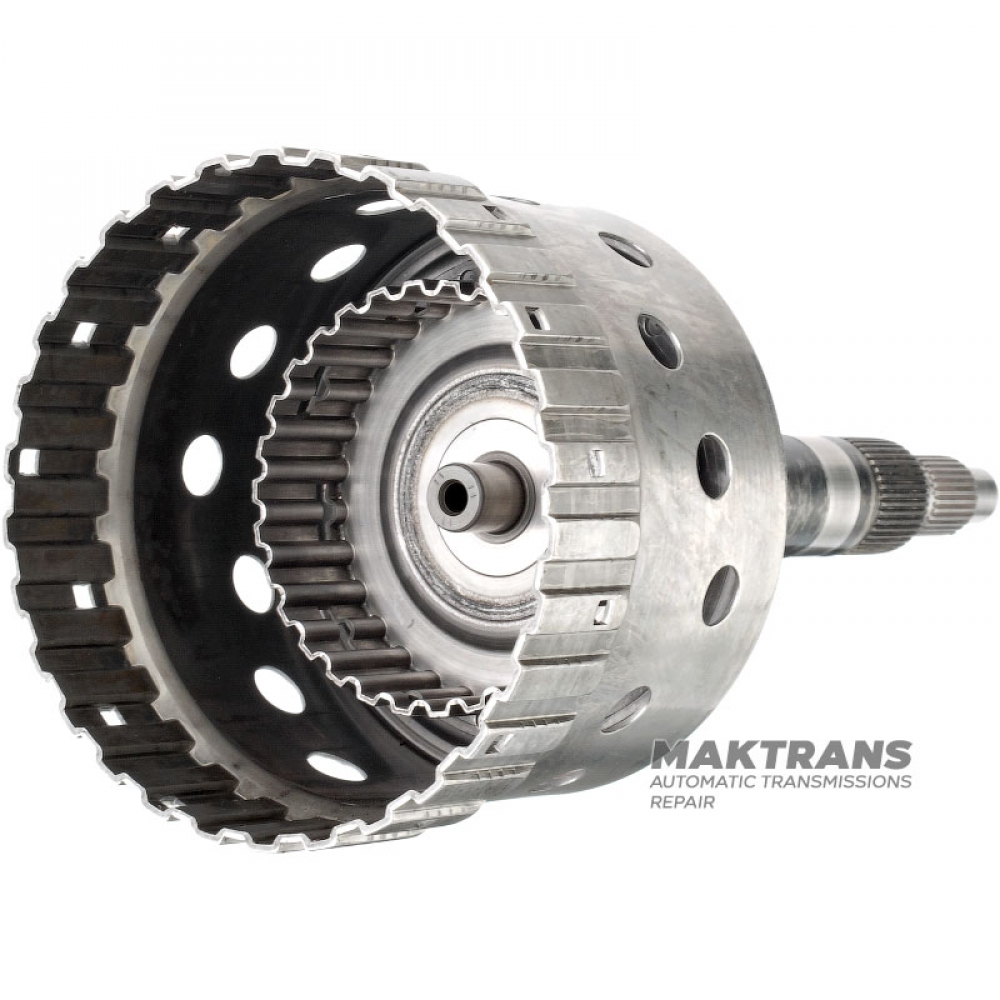

A Clutch / E Clutch ZF 6HP26 Hub Kit - (E Clutch Hub Outer Ø 24.10 mm)

A Clutch Hub:

• Overall height - 283 mm;
• Inner diameter of the sleeve - 24.30 mm;
• Number of splines - 41 pcs.;
• The outer diameter of the splined part is 33.05 mm;
• The outer diameter of the working parts of the shaft is 33.95 mm;
• Hub height - 124 mm;
• The outer diameter of the hub is 160.05 mm;

E Clutch Hub:

• Overall height - 278 mm;
• Number of splines on the shaft - 29 pcs.;
• The outer diameter of the splined part is 23.45 mm;

External diameters of the working parts of the shaft:

• 17 mm;
• 24.15 mm;
• 24.15 mm;
• 16.95 mm;

• Hub height - 36.05 mm;
• The outer diameter of the hub is 105.25 mm;
