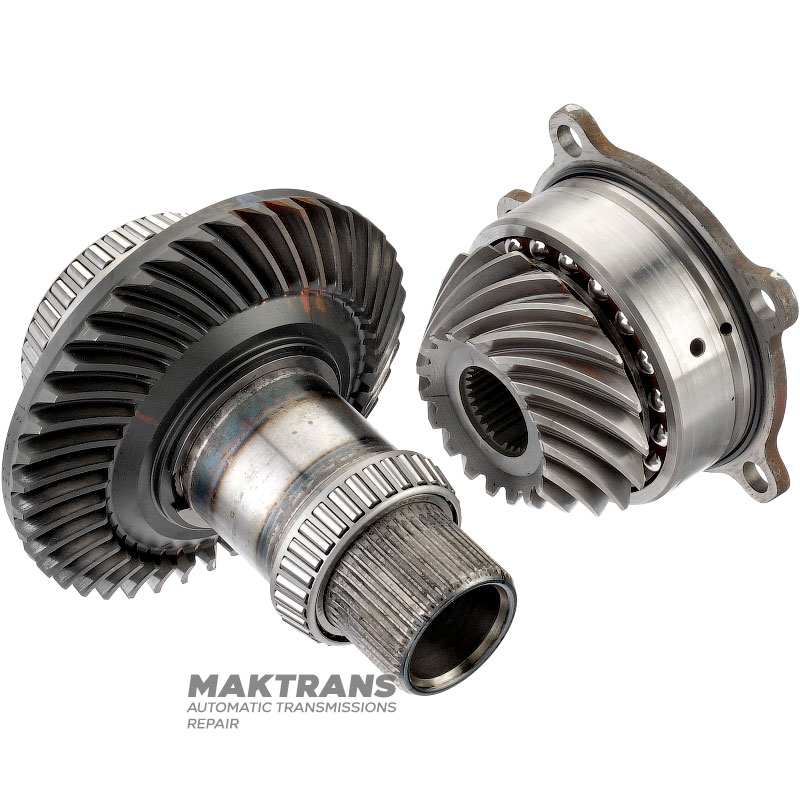

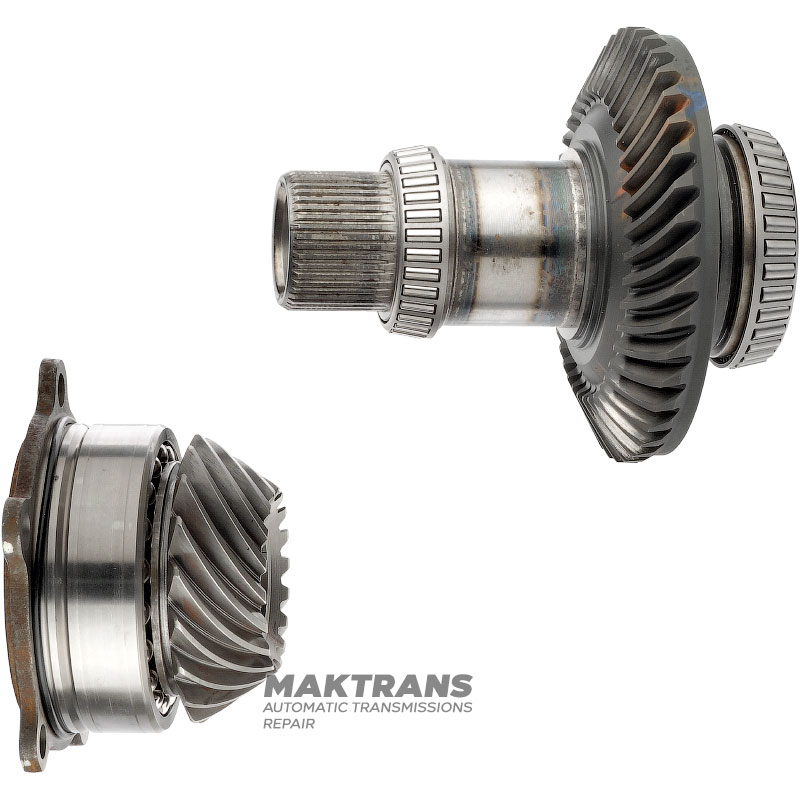

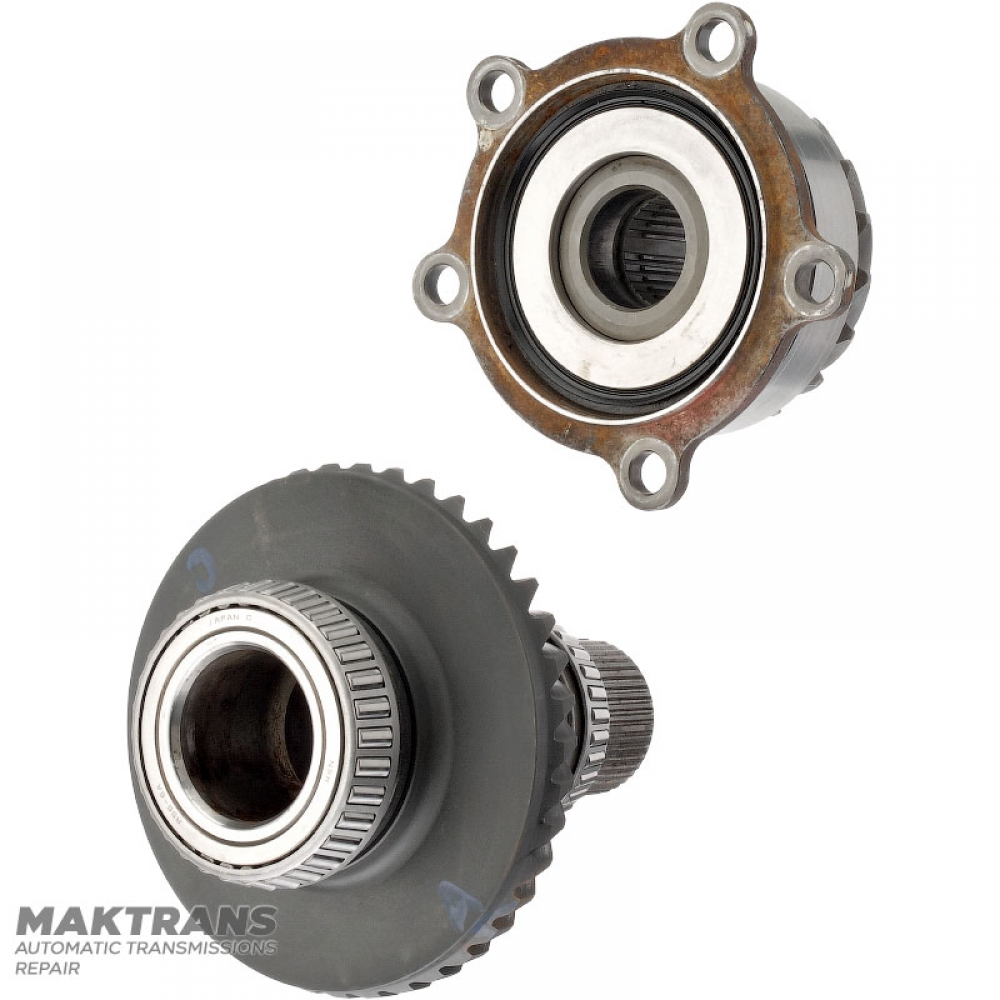

A set of hypoid gears for the angular reduction gear (transfer case) TOYOTA UB80F — 4120152010, 3625042030, 4131942011, 18 / 41 teeth, 44 splines on the input shaft (ext. Ø 45.30 mm)

Input shaft:

• Overall height - 163 mm;
• Number of splines on the shaft - 44 pcs.;
• The outer diameter of the splined part is 45.20 mm;
• Number of teeth on the gear - 41 pcs.;
• Gear outer diameter - 142.90 mm;

Bearings:

• NSK - R45Z-9A, 45.5 x 67 x 19;
• NSK - R56-6A, 56 x 85 x 20;

Driven gear:

• Total height - 80 mm;
• Number of teeth on the gear - 18 pcs.;
• Gear outer diameter - 93.50 mm;
• Inner diameter - 31.95 mm;
• Number of splines on the inner side - 27 pcs.;
• Number of holes on the mounting plate - 5 pcs.;
• Inner diameter of holes - 11.05 mm;
