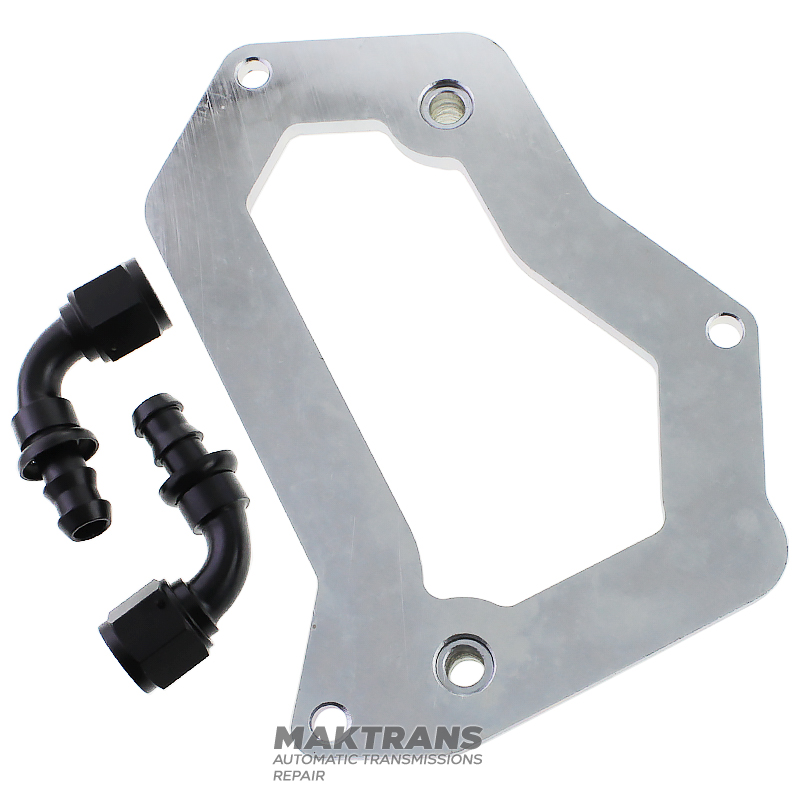

Adapter for connecting additional cooling and filtration DQ400 0dd

Adapter for connecting additional cooling and filtration DQ400 0dd

An external filter is installed after a major overhaul, a complete oil change, or the detection of chips in the system. It prevents wear products washed out by the new oil from entering the valve body and solenoids.
The SPX main filter wear products down to 10 microns , such as corrosive material, adhesive bonding of friction discs, small chips from clutches and locking clutches.

How do I connect filtration or cooling? You remove the heat exchanger and install an additional filter via an adapter.
The kit includes:

• JIC fitting 3/4x16 / M16x1.5 2 pcs
• Fitting 90° AN8 2 pcs

Description of the set:

• Which hose is the AN8 - HOSE13 fitting for?
• Which clamp should I take? D18-20 mm
• The tightening spanner size for the fitting is AN8/22mm
• The cross-section of the fitting is 9.0 mm
• The center-to-center distance of the fittings is 112.5 mm
• Adapter material: Steel, zinc galvanized
• Fitting material - Aluminum
