Additional filtration kit AW TF-70SC TF-72SC TF-73SC BMW 2nd Series TG-81SC Type 2

Complete filtration solution AW-TF70 AW TF-70SC TF-72SC TF-73SC TG-81SC . Does not require changes to the original automatic transmission components; it is quickly installed, serviced and removed.

The AF-279 transmission main filter wear products up to 20 microns , such as corrosive material, adhesive joints of friction discs, small chips from clutches and lock-up clutches.

An external filter is installed after a major overhaul, a complete oil change, or the detection of chips in the system; it prevents wear products washed with new oil from entering the valve body and solenoids.

AW-TF70 AW TF-70SC TF-72SC TF-73SC TG-81SC are equipped with cellular heat exchanger coolers, their narrow grooves become clogged with automatic transmission wear products within 120-150 tkm. Cleaning and flushing of the heat exchanger is not possible. With age, the machine heats the oil much more intensively, since it already has significant contamination and multiple leaks. To protect the hardware and clutches from overheating, which subsequently leads to expensive repairs, we produced an adapter. The adapter plate allows you to install an external radiator and an additional filter INSTEAD OF HEAT EXCHANGER HX-7089720

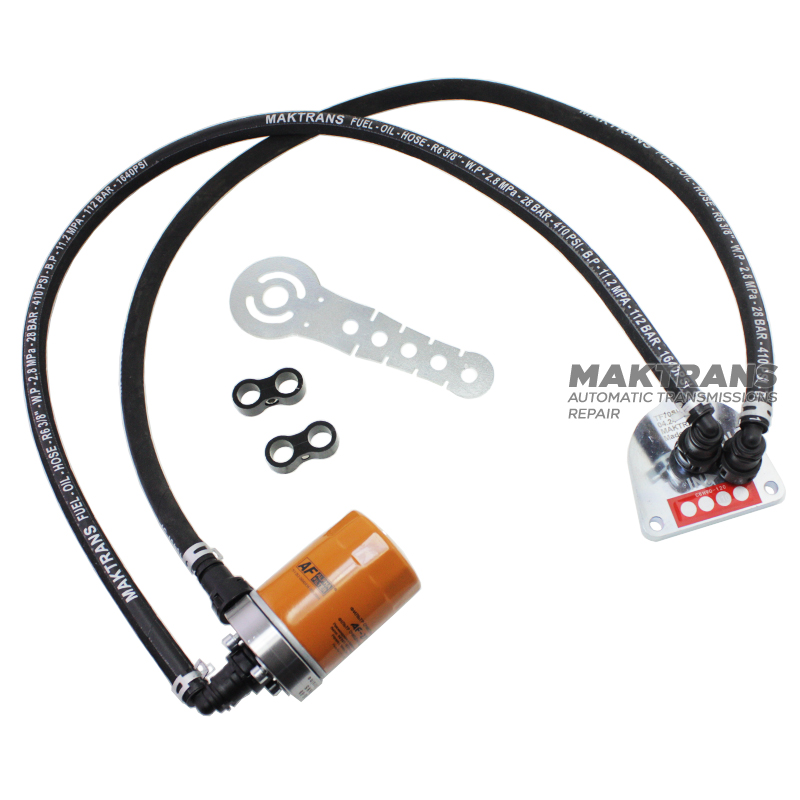

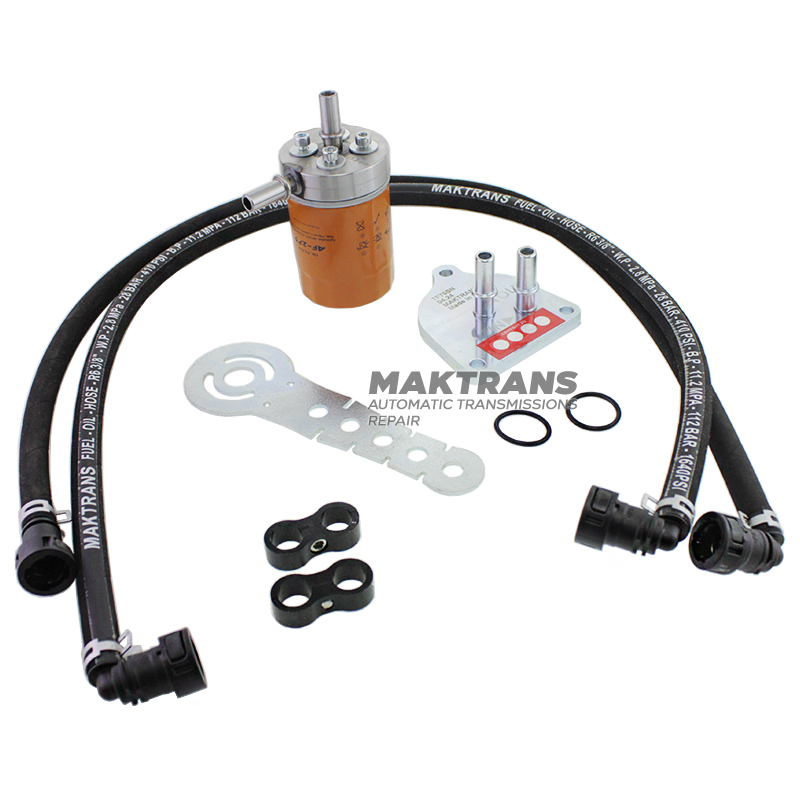

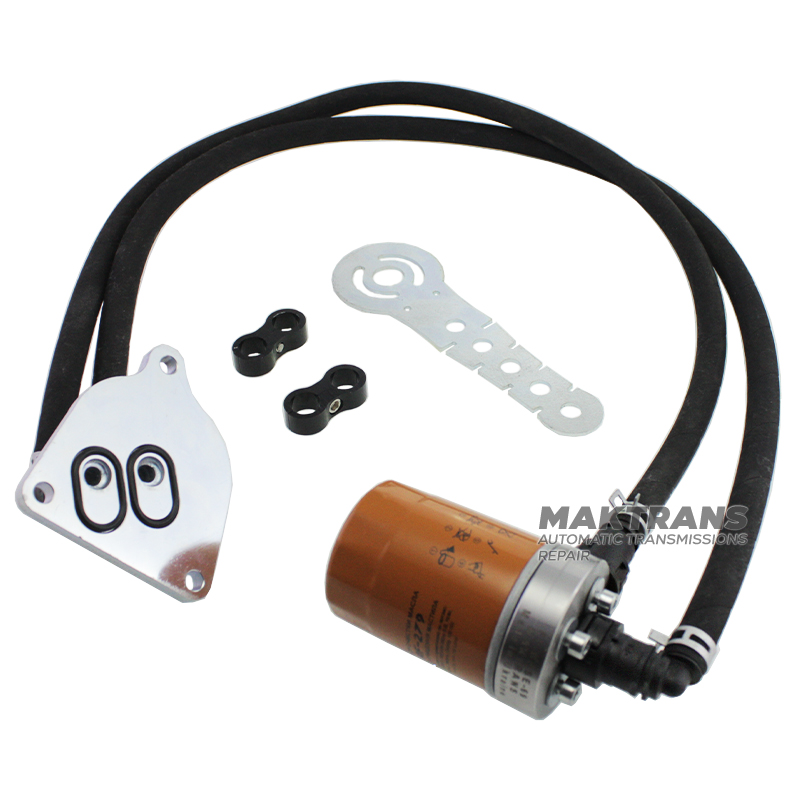

Package includes: Quantity:

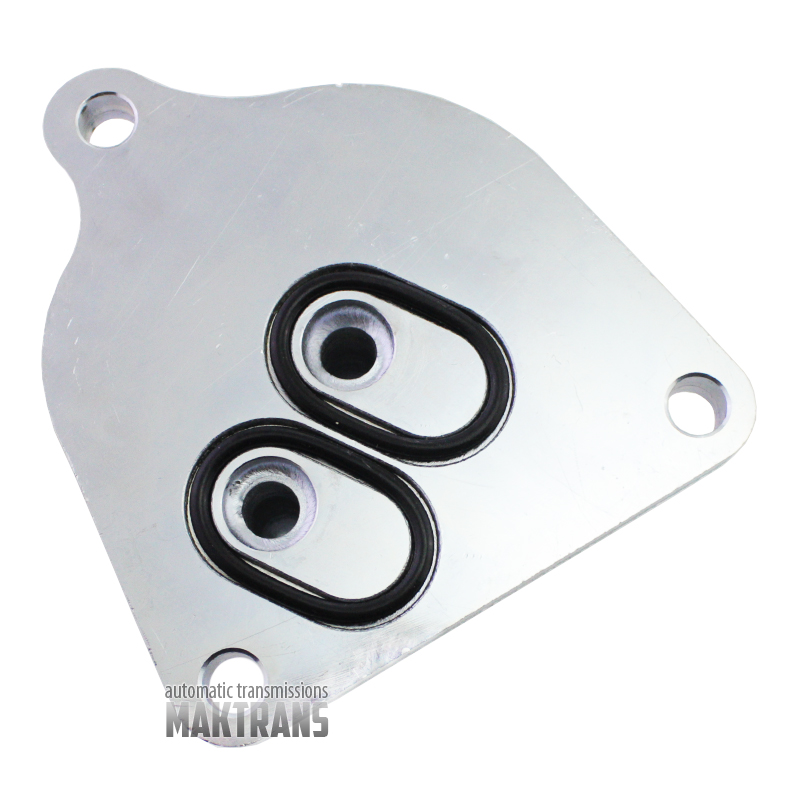

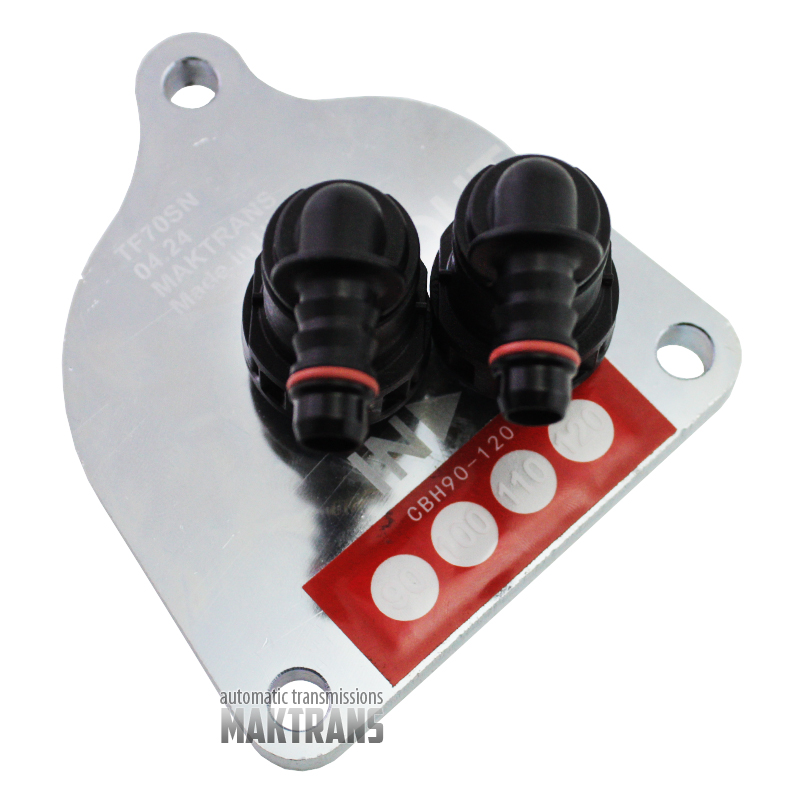

Adapter AW TF-80SC gen2 (TF-70SC TF-73SC) 1 pc.

Automatic transmission main filter AF-279 1 pc.

Adapter for additional automatic transmission filter D79  1 PC

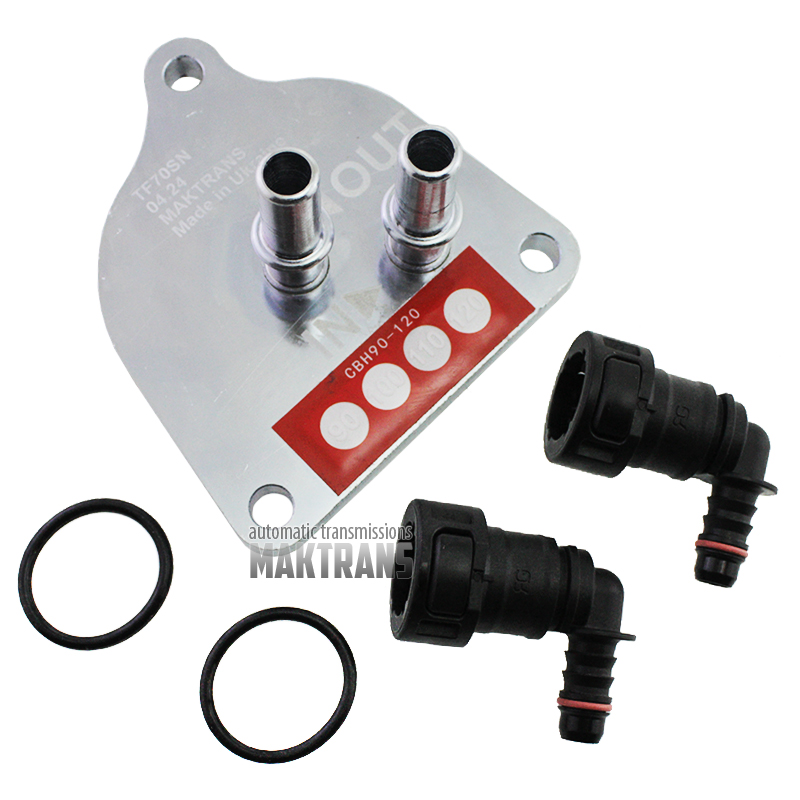

Quick Release Fitting 11.8 ID8 | L-shaped  3 pcs

Quick Release Fitting 11.8 ID8 | Straight  1 PC

Spring clamp D 16-18 mm  4 things

Oil resistant hose D10  2 meters

Bracket for mounting additional filtration 1 pc.
