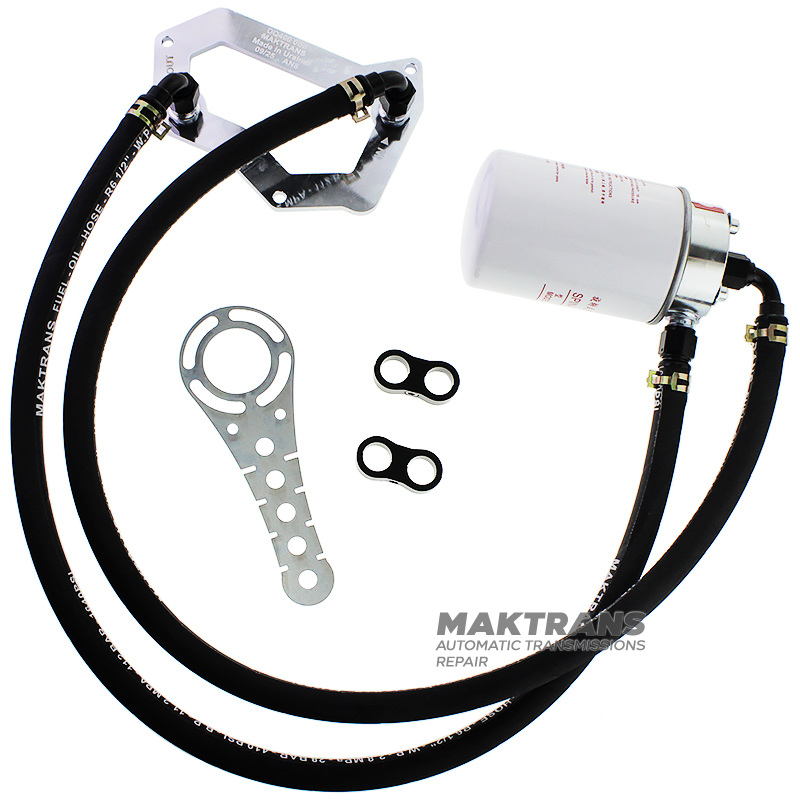

Additional filtration kit DQ400 0DD With a fine filter up to 10 microns.

Additional filtration kit DQ250 02E / Type.3 SPX. How do I connect the additional filter? You remove the heat exchanger and install the additional filter via an adapter.

The SPX main filter filters wear debris down to 10 microns , such as corrosive material, adhesive bonding between friction discs, and fine shavings from clutches and lock-up clutches. An external filter is installed after a major overhaul, a complete oil change, or the detection of shavings in the system. It prevents wear debris washed away by the new oil from entering the valve body and solenoids.

1. Why install temporary filtration? Cleaning oil from chips

An external filter is installed after a major overhaul, a complete oil change, or the detection of chips in the system. It prevents wear products washed out by the new oil from entering the valve body and solenoids .

Additional filter adapter description:

• Adapter diameter:

• 79 mm

• Filter adapter thread:

• 1ʼʼ-12UNF

• Adapter thread for fitting:

• AN8

• Adapter material:

• Steel, zinc galvanized coating

• Adapter cross-section:

• 9.5 mm

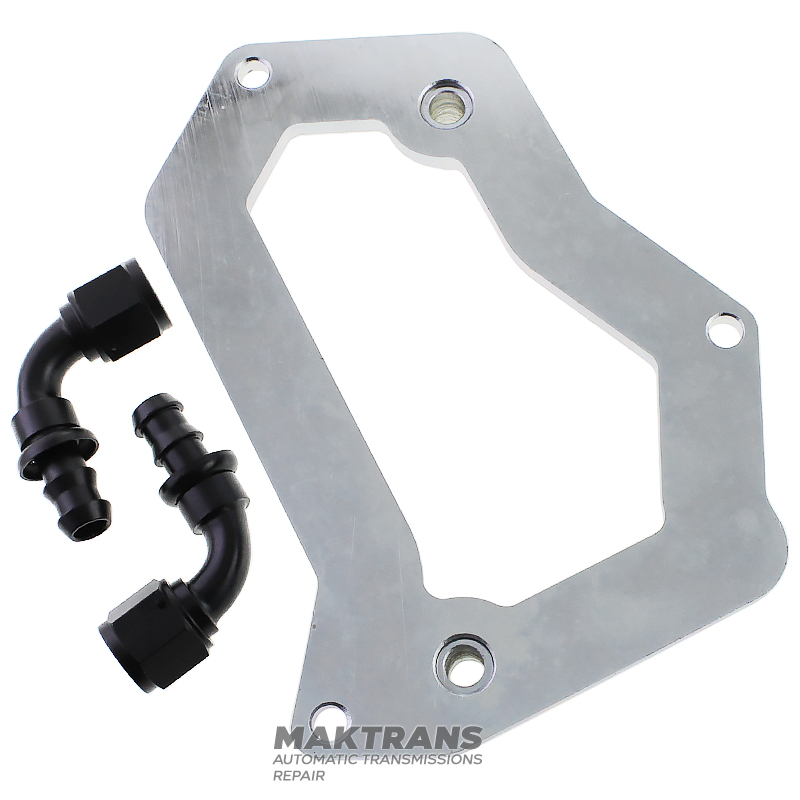

Description of the DQ250 adapter:

• Which hose is the AN8 - HOSE13 fitting for?
• Which clamp should I take? D 18-20 mm
• The tightening spanner size for the fitting is AN8/22mm
• The cross-section of the fitting is 9.0 mm
• Adapter material: Steel, zinc galvanized
• Fitting material - Aluminum

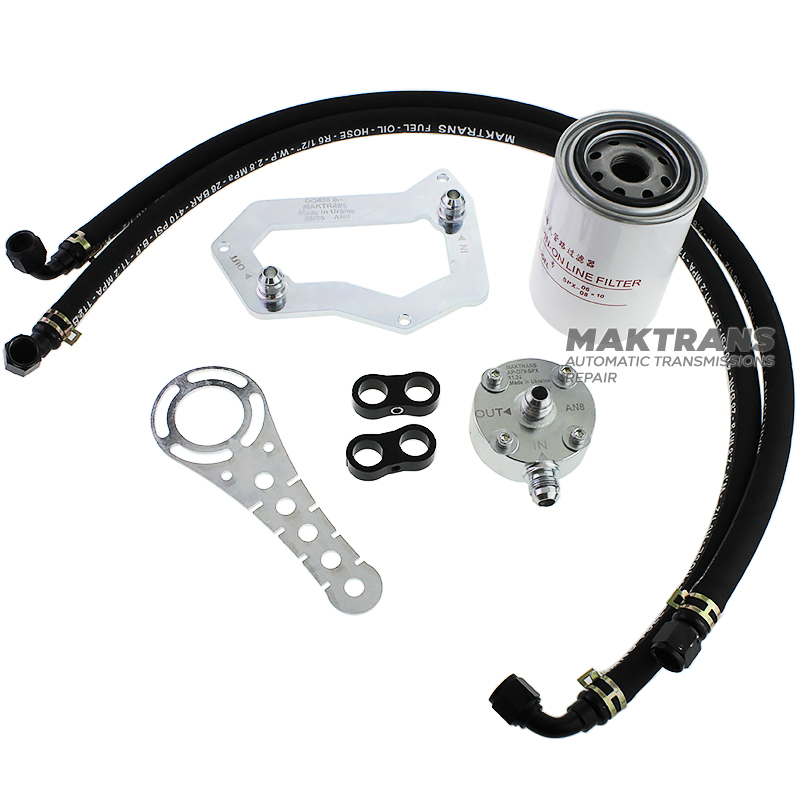

The kit includes:

SPX 10 µm main filter (1 pc.)

Adapter DQ400 0dd 1 piece

Spring clamp D 18-20 mm 4 pcs

Oil-resistant hose D13 2 meters

Bracket 1 pc.

Hose mount Ø19 2 pcs.
