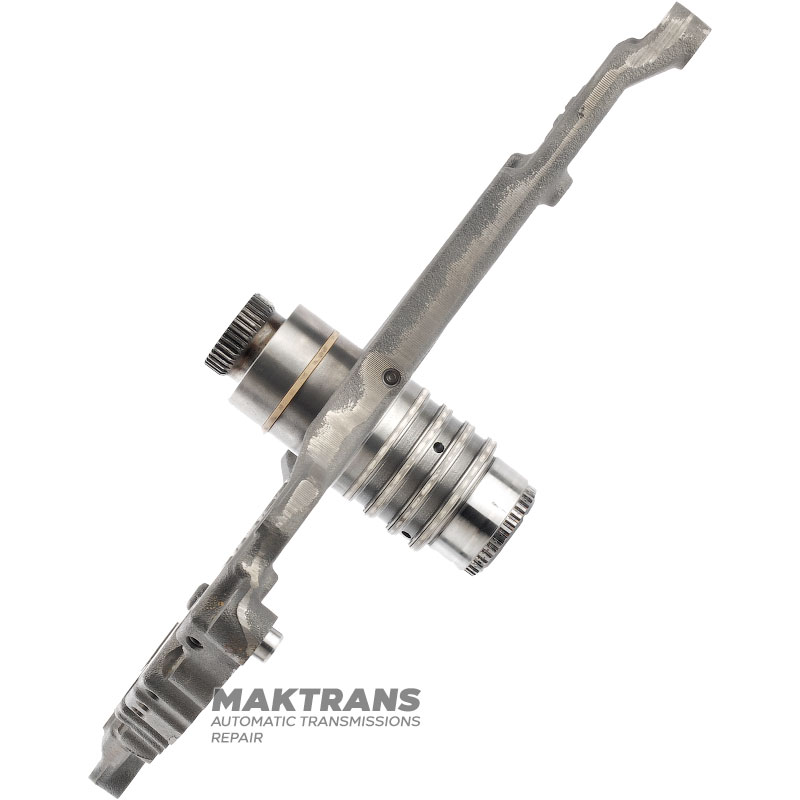

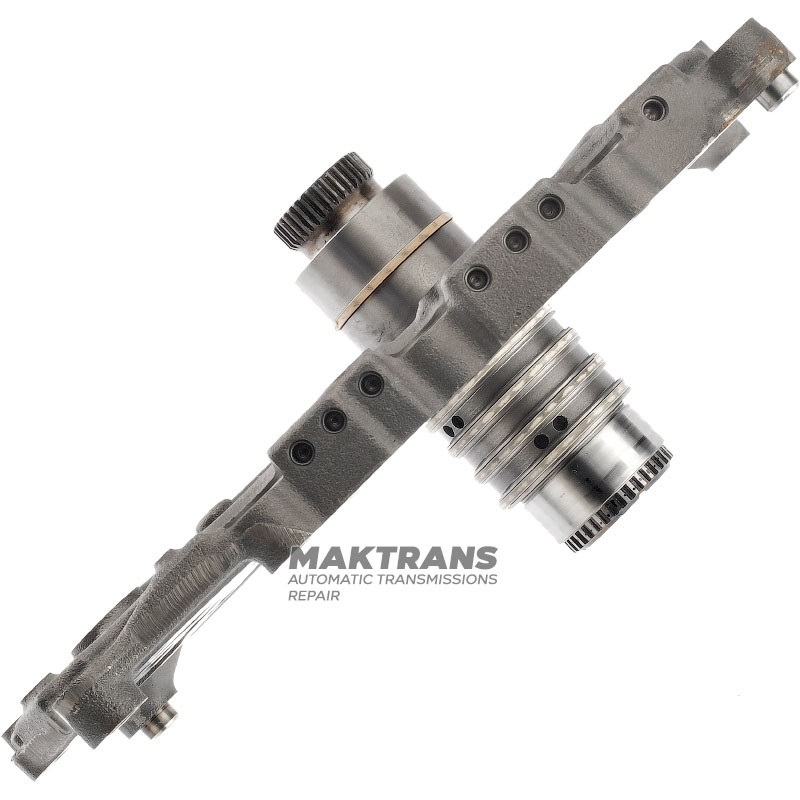

Aisin Warner Oil Pump Hub AWF8G30 - 8GB140 (Sealing rings must be replaced with new ones before installing to the transmission)

• Overall hub height - 119 mm;

Front side:

• Height - 118 mm;
• Number of splines - 38 pcs.;
• The outer diameter of the splined part is 30.85 mm;
• The inner diameter of the sleeve is 22.25 mm;
• Outer diameter of the hub (under the splined part) - 42.60 mm;

Rear Side (C3-C4 Clutch Drum Hub):

• Height - 60 mm;
• Number of splines - 37 pcs.;
• The outer diameter of the splined part is 37.25 mm;
• The outer diameter of the working part of the C3-C4 Clutch drum sleeve is 40 mm;
• The outer diameter of the Teflon ring sockets is 47 mm;
