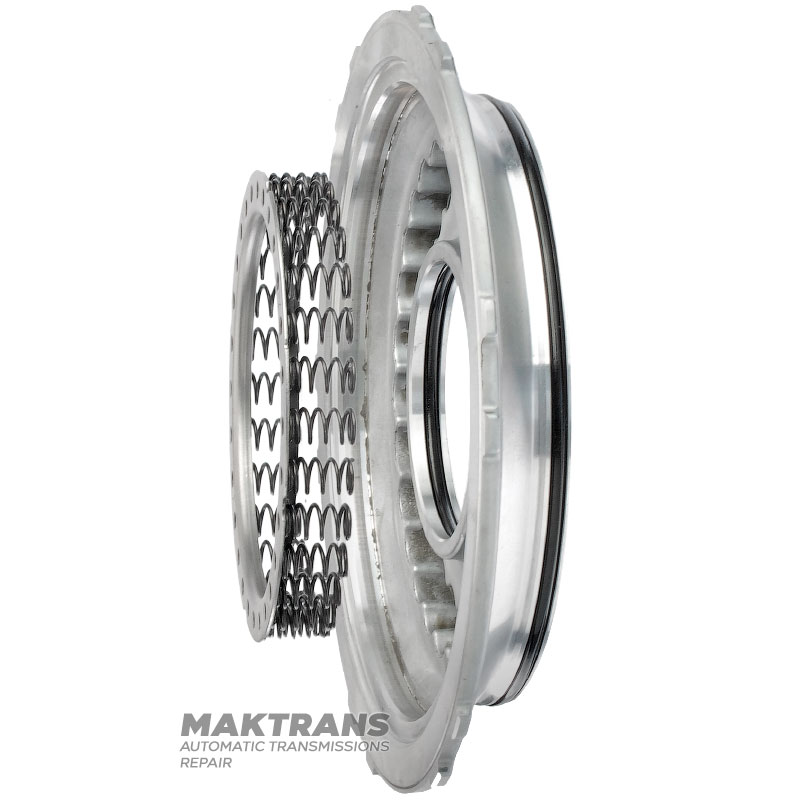

Aisin Warner TF-70SC/TF-71SC/TF-72SC Spring Return Piston

Aluminum piston:

• Total height - 22 mm;
• Inner diameter - 52.30 mm;
• Outer diameter - 151 mm;
• The outer diameter of the outer rubber ring is 113.55 mm;

Piston return spring unit:

• Overall height - 14.73 mm;
• Outer diameter - 98.95 mm;
• Inner diameter - 79.60 mm;
