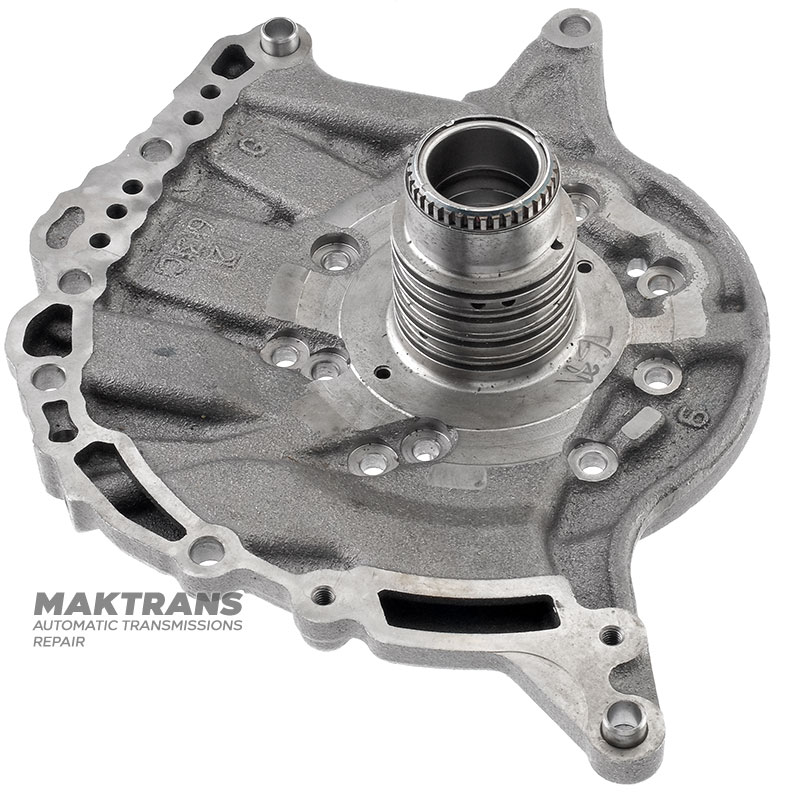

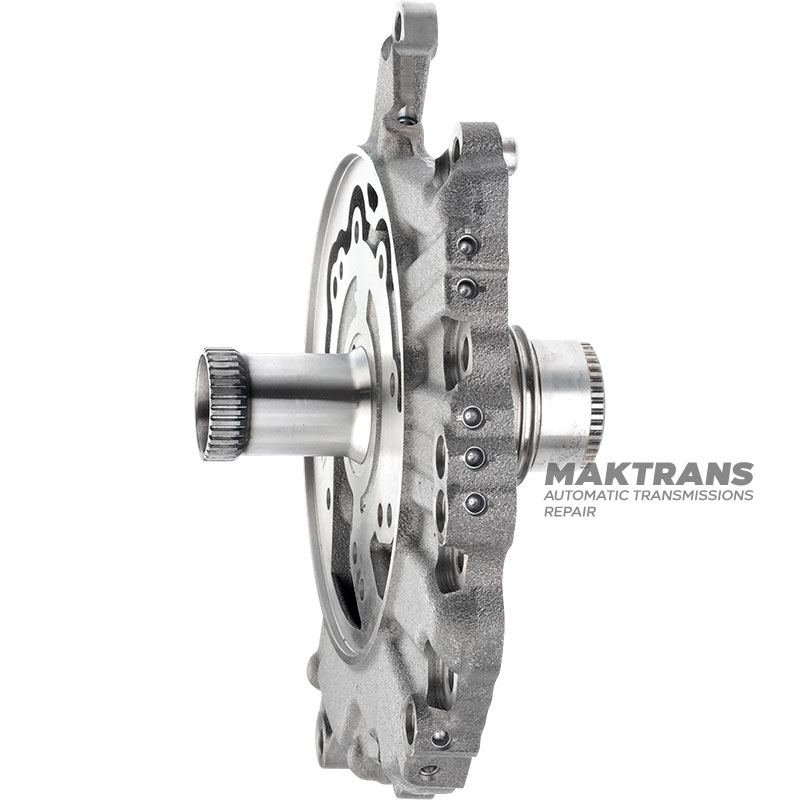

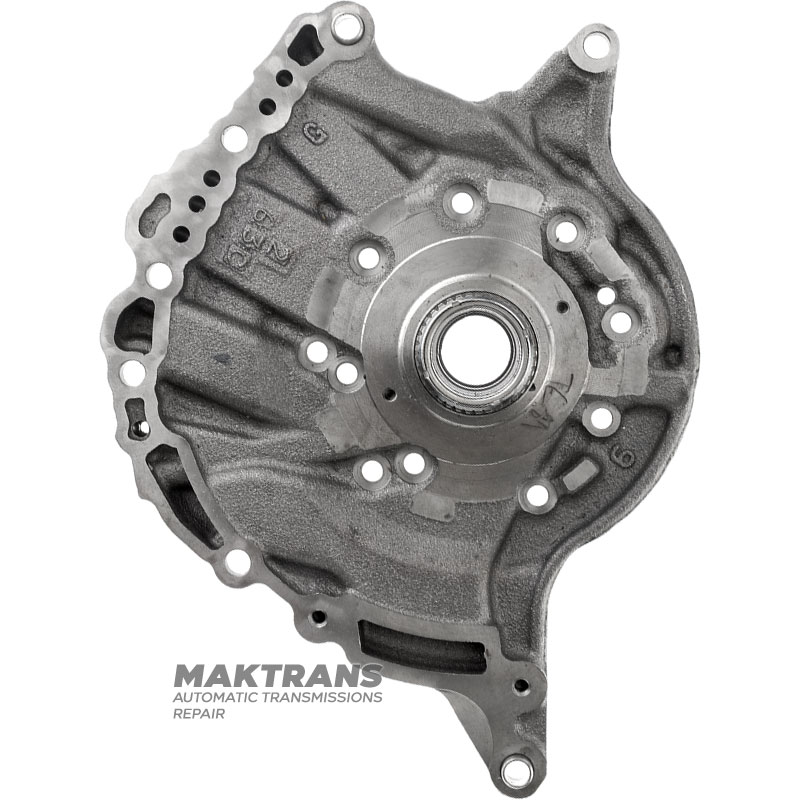

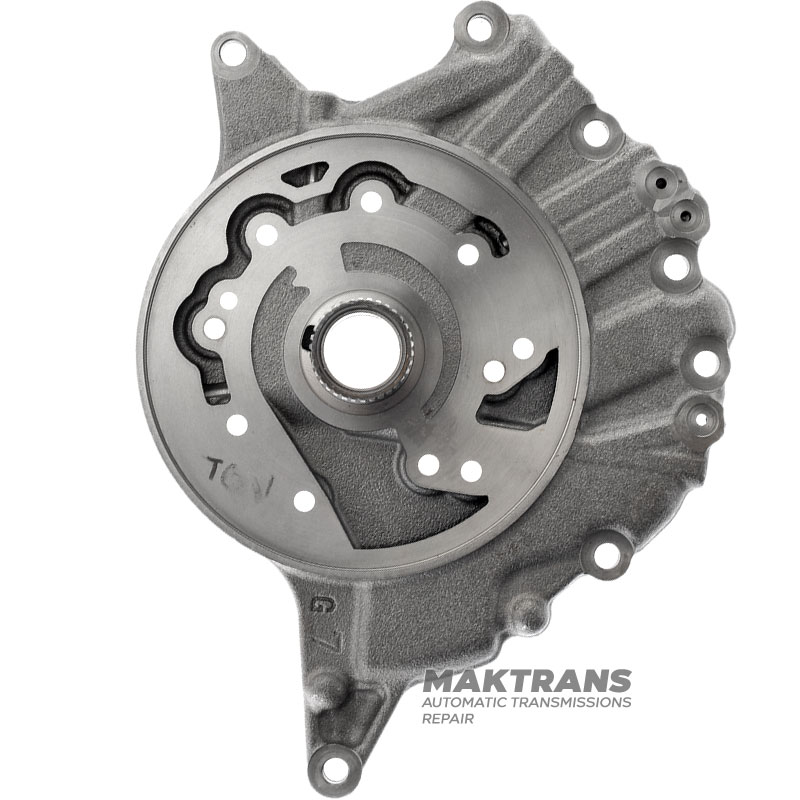

Aisin Warner TG-81SC oil pump hub - 34 splines (outer Ø 34.60 mm), stator front height 48.95 mm

• The total height of the stator is 121 mm;

Front side:

• Height - 48.95 mm;
• Number of splines - 34 pcs.;
• The outer diameter of the spline part is 34.60 mm;
• The inner diameter of the sleeve is 25.25 mm;

Rear side of stator:

• Height - 62 mm;
• Number of Teflon rings - 4 pcs.;
• The outer diameter of the Teflon ring seat is 50.25 mm;
