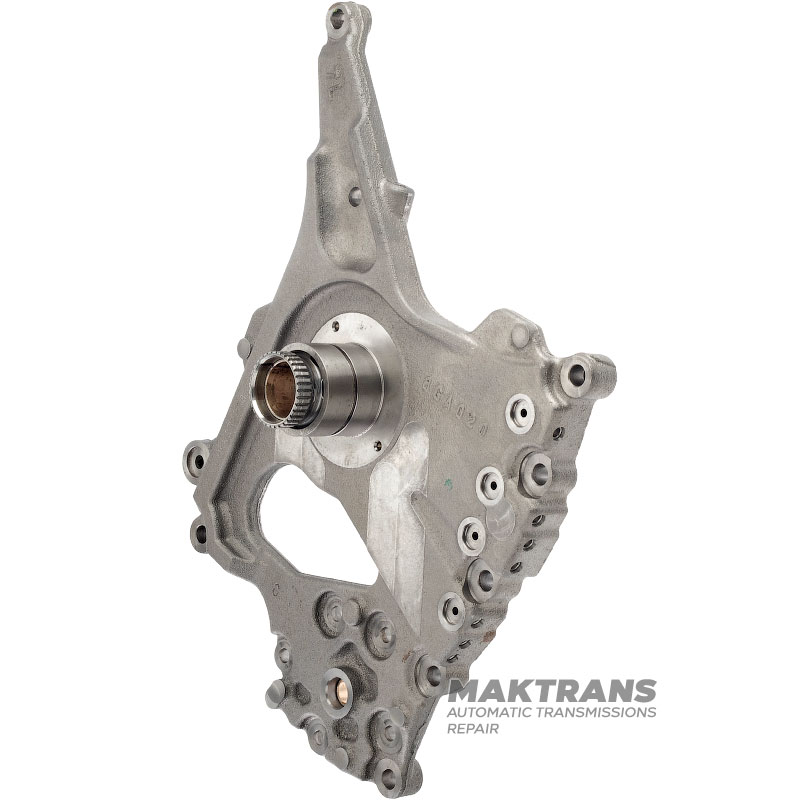

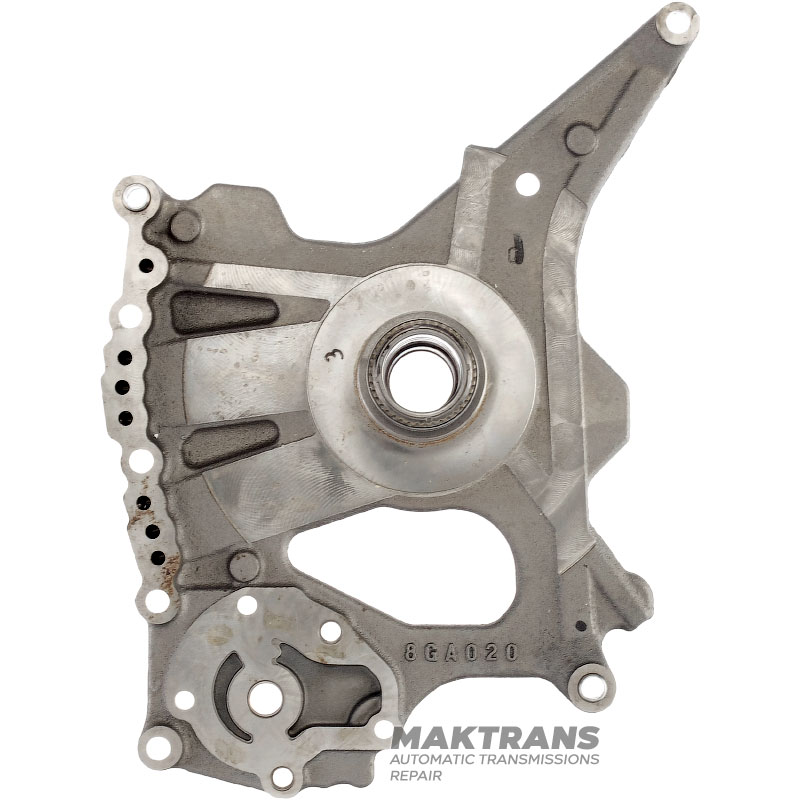

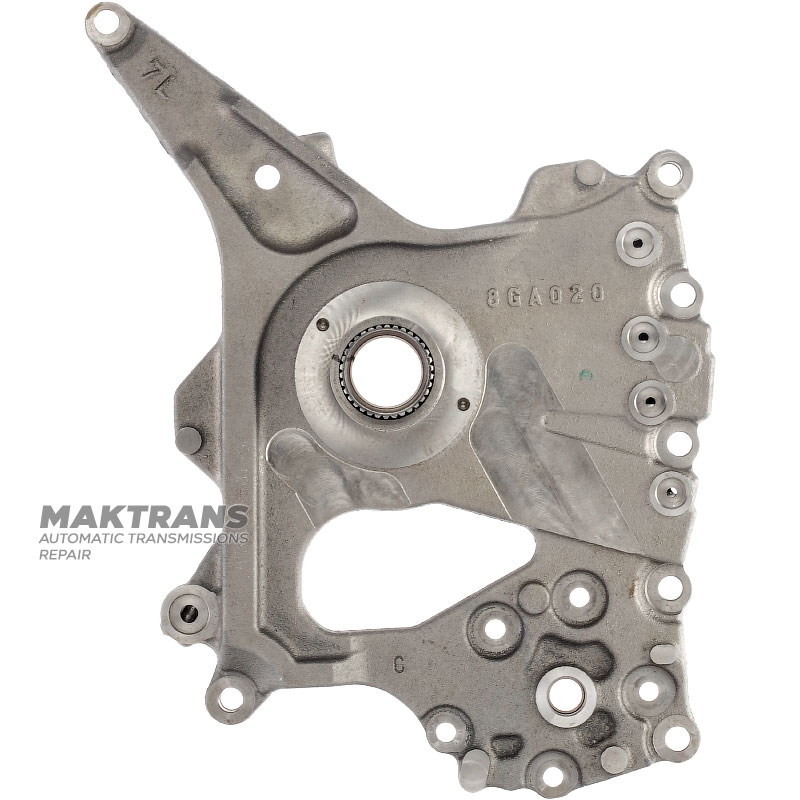

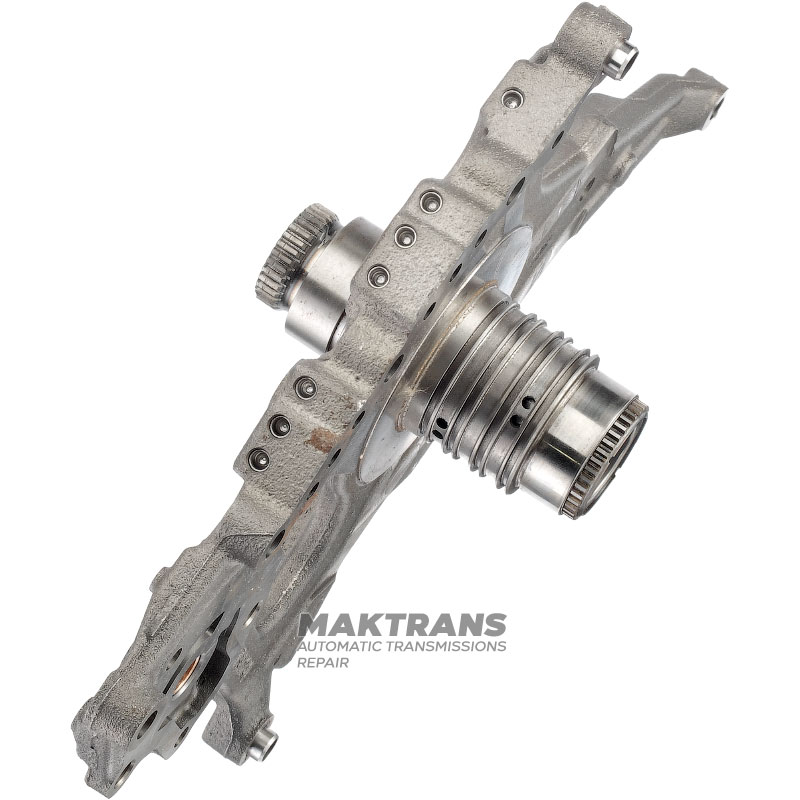

Aisin Warner/BMW Oil Pump Hub AWF8G45 - BMW/Mini Cooper only

• Overall hub height - 119.50 mm;

Front hub:

• The height of the front part of the hub (from the base) is 47.50 mm;
• Inner diameter of the sleeve - 25 mm;
• Number of splines - 34 pcs.;
• The outer diameter of the spline part is 34.60 mm;
• The outer diameter of the working part (under the spline part) is 42.60 mm;

Rear hub:

• The height of the rear part from the base is 61 mm;
• The outer diameter of the Teflon ring seat is 50 mm;
• Outer diameter of the working part of the needle bearing of the drum C3 | C4 Clutch - 43.10 mm;
• Number of splines - 40 pcs. / adv. Ø 40.65 mm;
• Inner diameter - 29.35 mm;
