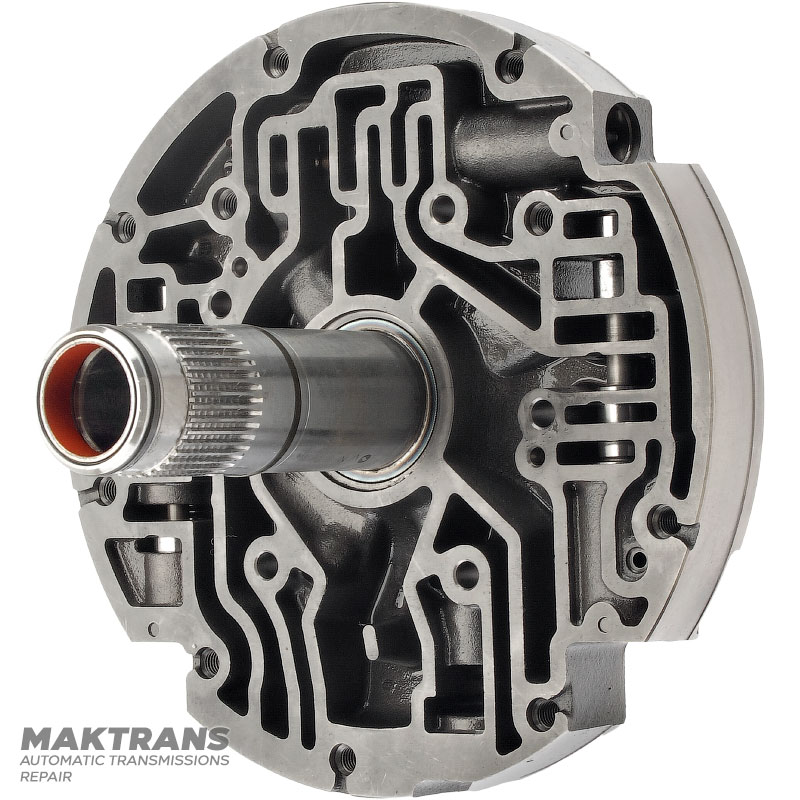

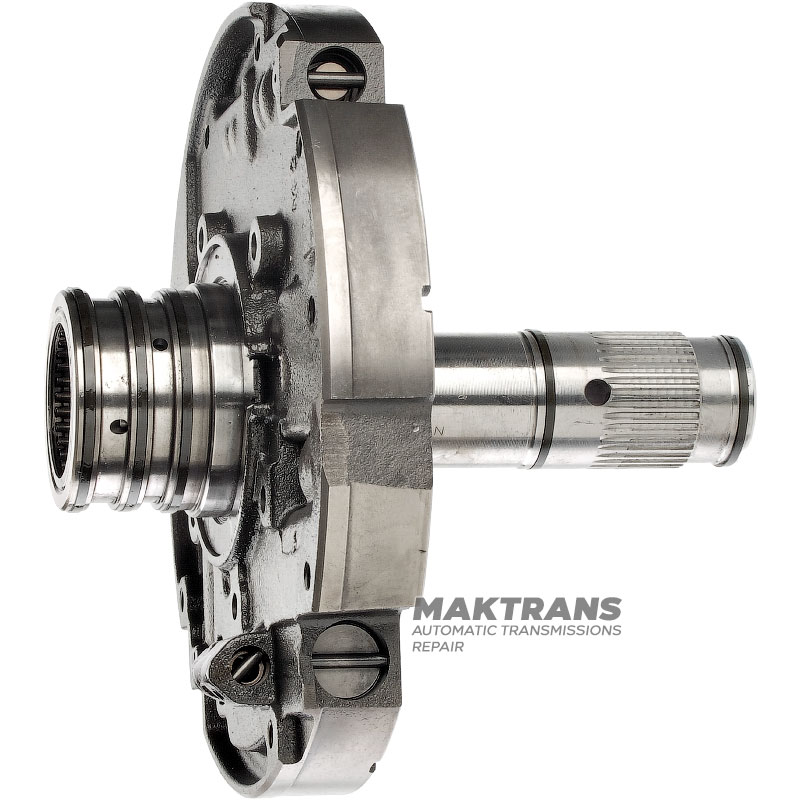

Allison 1000, 2000, 2400 Oil Pump Hub - 24266398, (236mm Height, 37 Splines)

• Overall height - 236 mm;

Front side:

• Stator height - 142 mm;
• Inner diameter of the sleeve - 33.70 mm;
• Number of splines - 37 pcs.;
• The outer diameter of the splined part is 47.30 mm;
• Valve plate height - 33.70 mm;
• Outer diameter of valve plate - 264 mm;

Back side:

• Hub height - 56 mm;
• The outer diameter of the working part at the base is 77.85 mm;
• Hub outer diameter - 73.20 mm;
• Number of Teflon rings - 3 pcs.;
• Bearing marking - SCE328;
