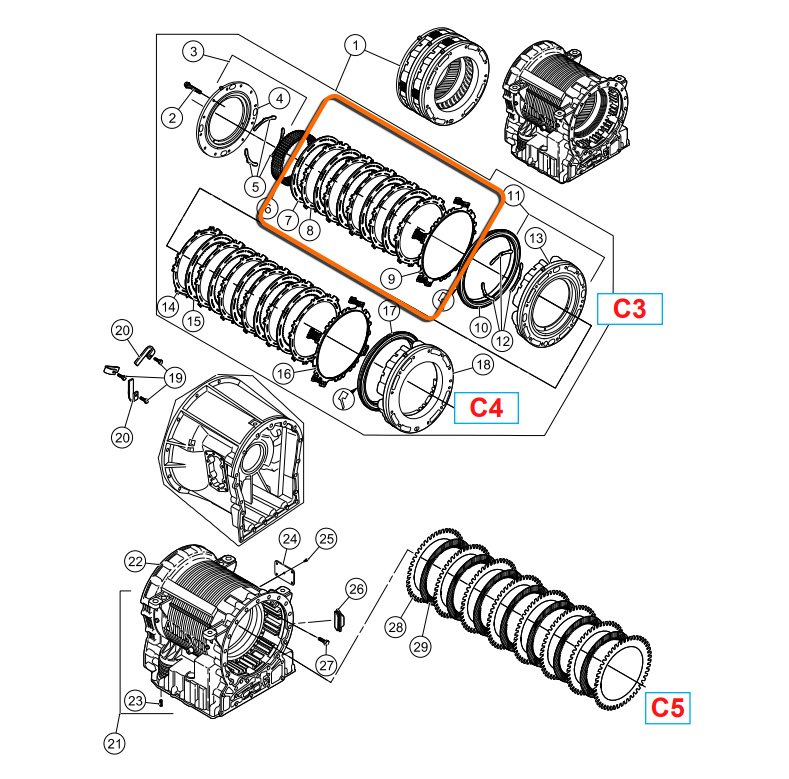

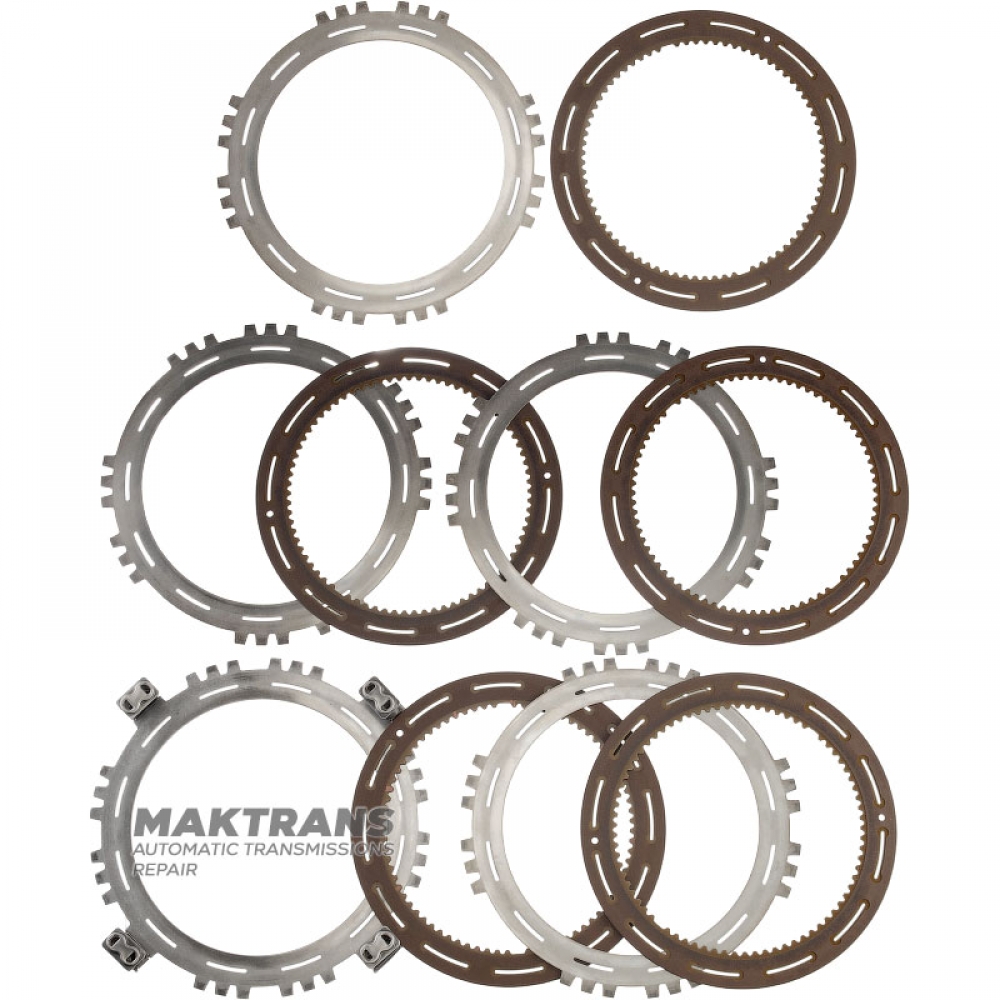

C3 Clutch ALLISON 3000 Series Steel & Friction Plate Kit - 29536345, 29536336, 29501424, 5 Friction Plates (Total Kit Thickness 26.60mm)

• The total thickness of the set is 26.60 mm;

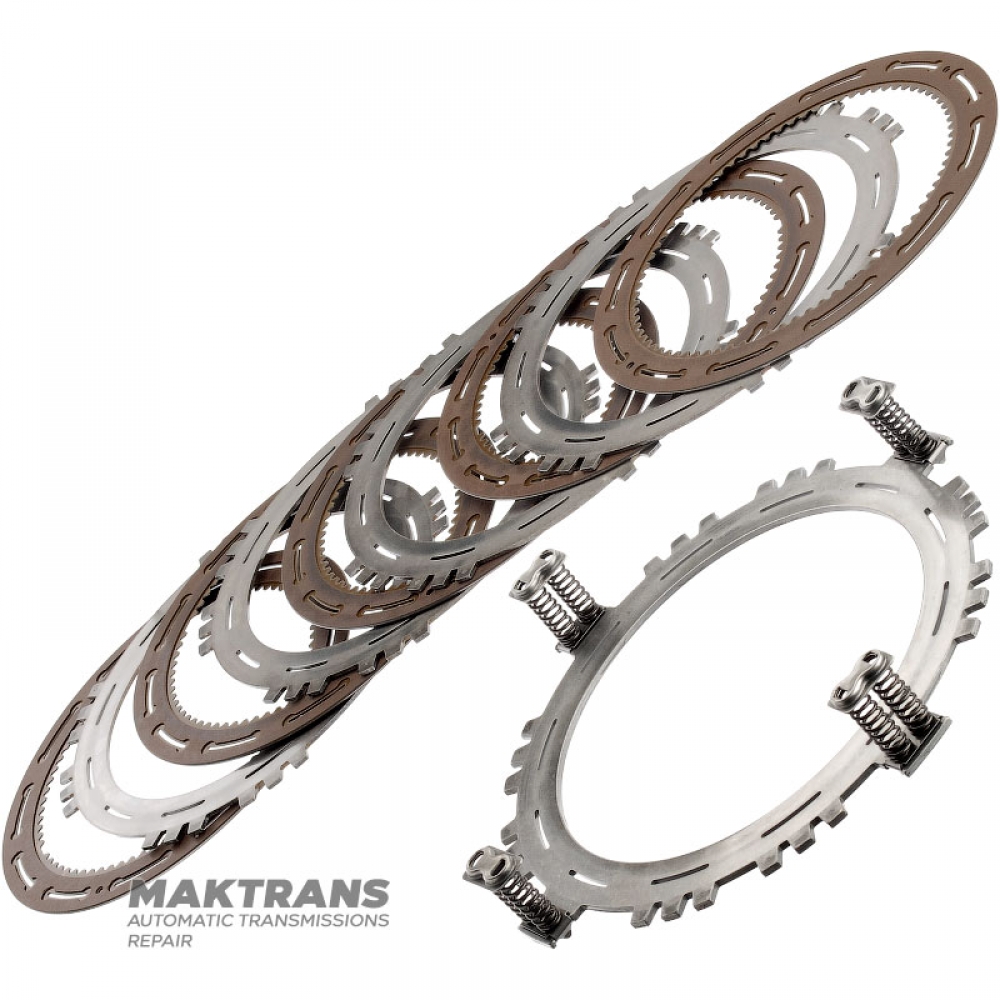

Support disk (with return springs):

• Thickness - 3.50 mm;
• Inner diameter - 195.65 mm;
• Number of teeth - 24 pcs. (3 spring block supports);
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.65 mm;
• Outer diameter - 242.25 mm;
• Number of teeth - 75 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 2.50 mm;
• Inner diameter - 195.45 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Tags: 29501424, 29536345, 29536336
