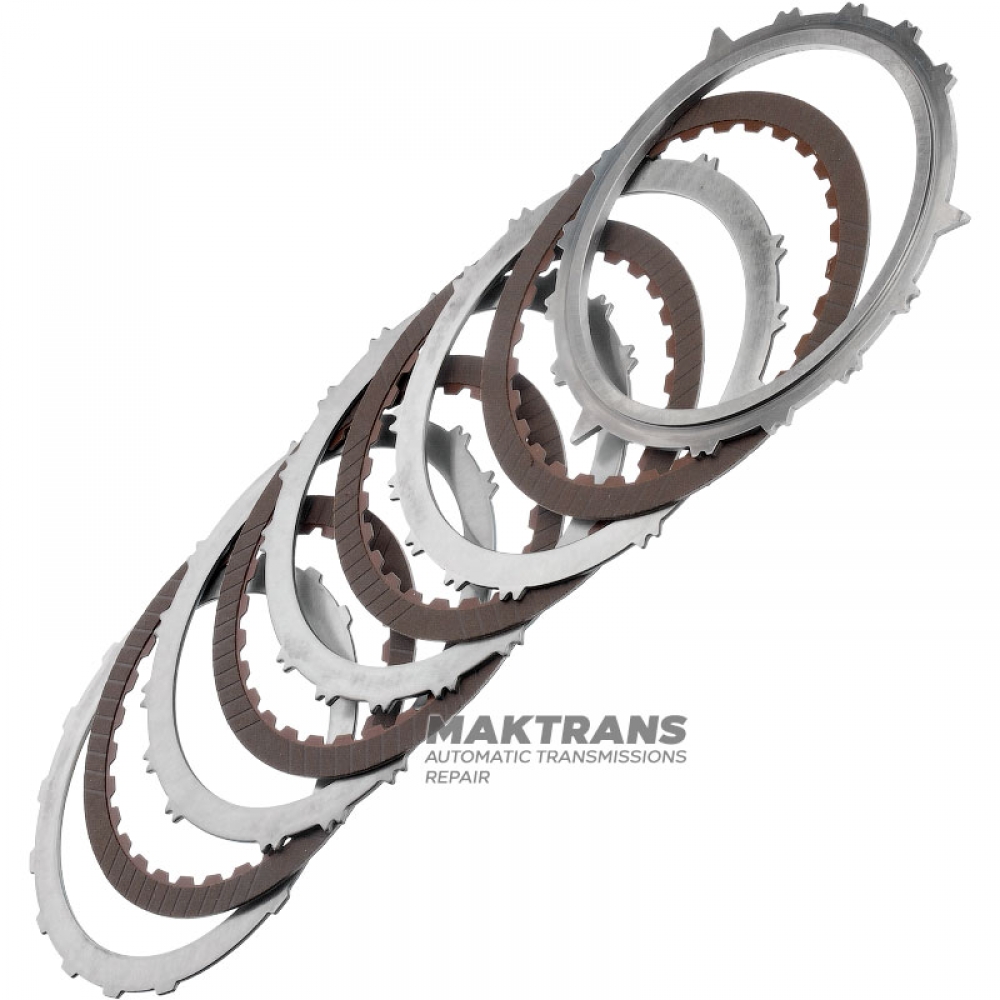

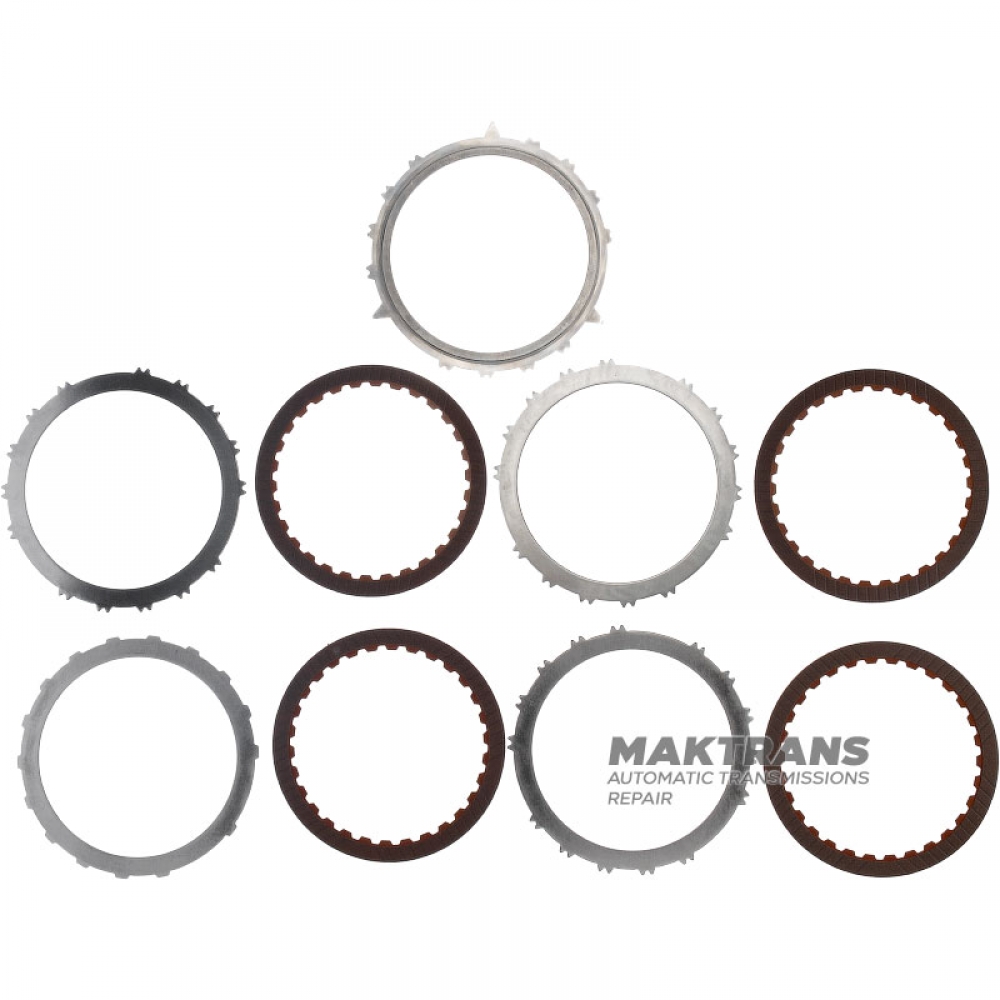

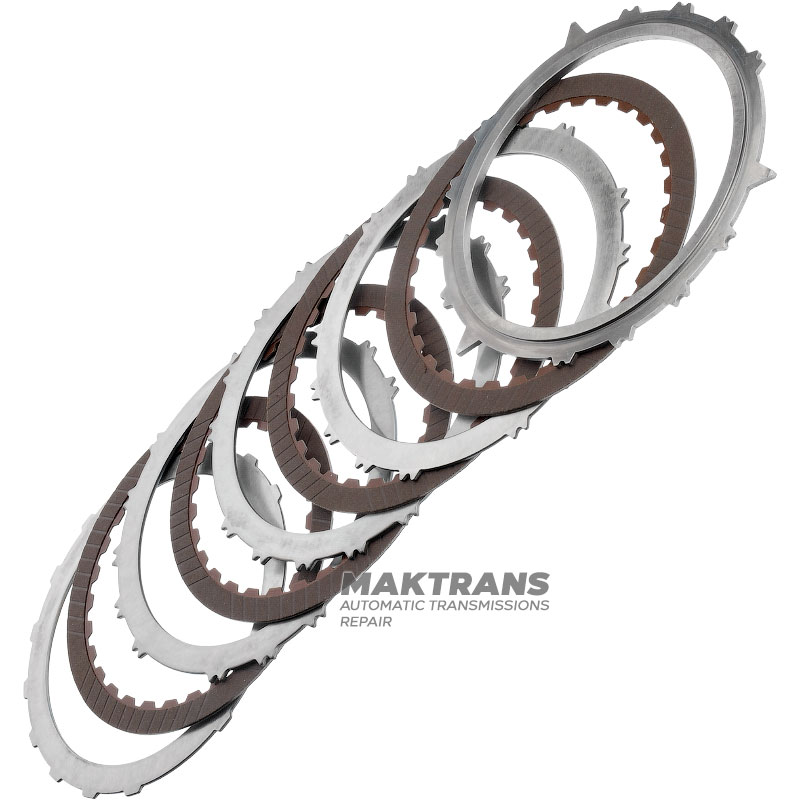

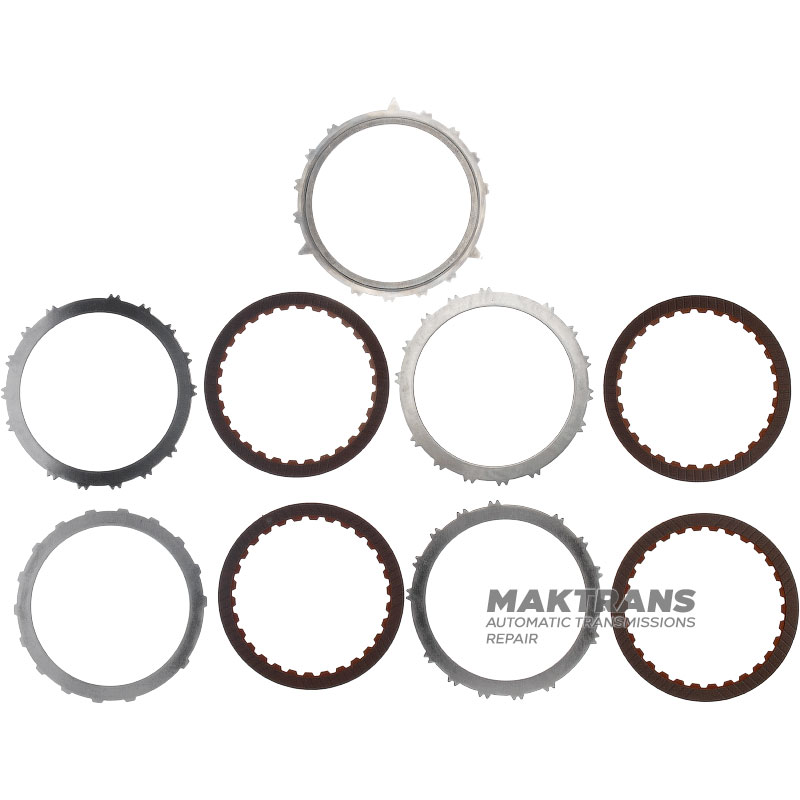

B2 Low Coast Brake RE5R05A 3166290X02 Steel and Friction Disc Set - 4 friction discs (30 teeth per disc), 15 teeth per steel disc, total set thickness 16.45 mm

• Total thickness of the set - 12.55 mm;

Support disk:

• Thickness - 2.15 (3.55) mm;
• Inner diameter - 112.70 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.75 mm;
• Outer diameter - 132.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 112.85 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk (lower):

• Thickness - 1.60 mm;
• Inner diameter - 112.85 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;
