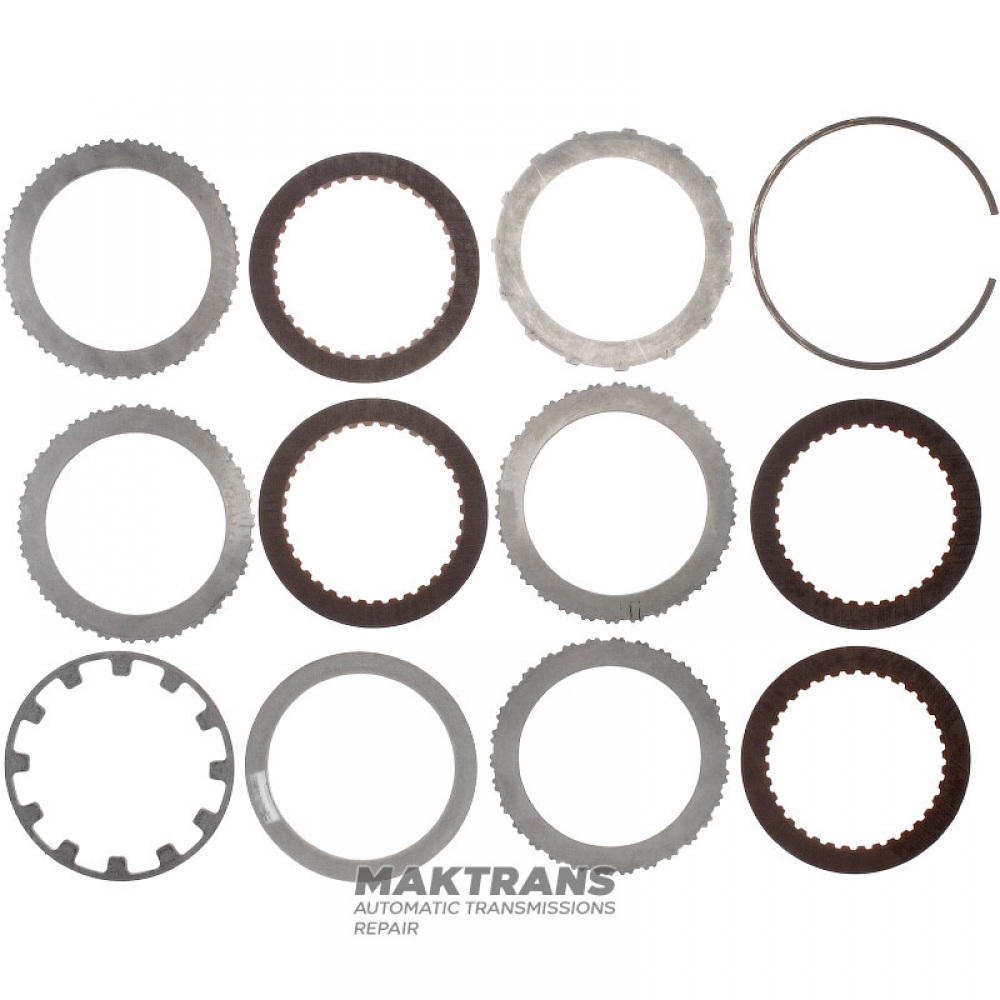

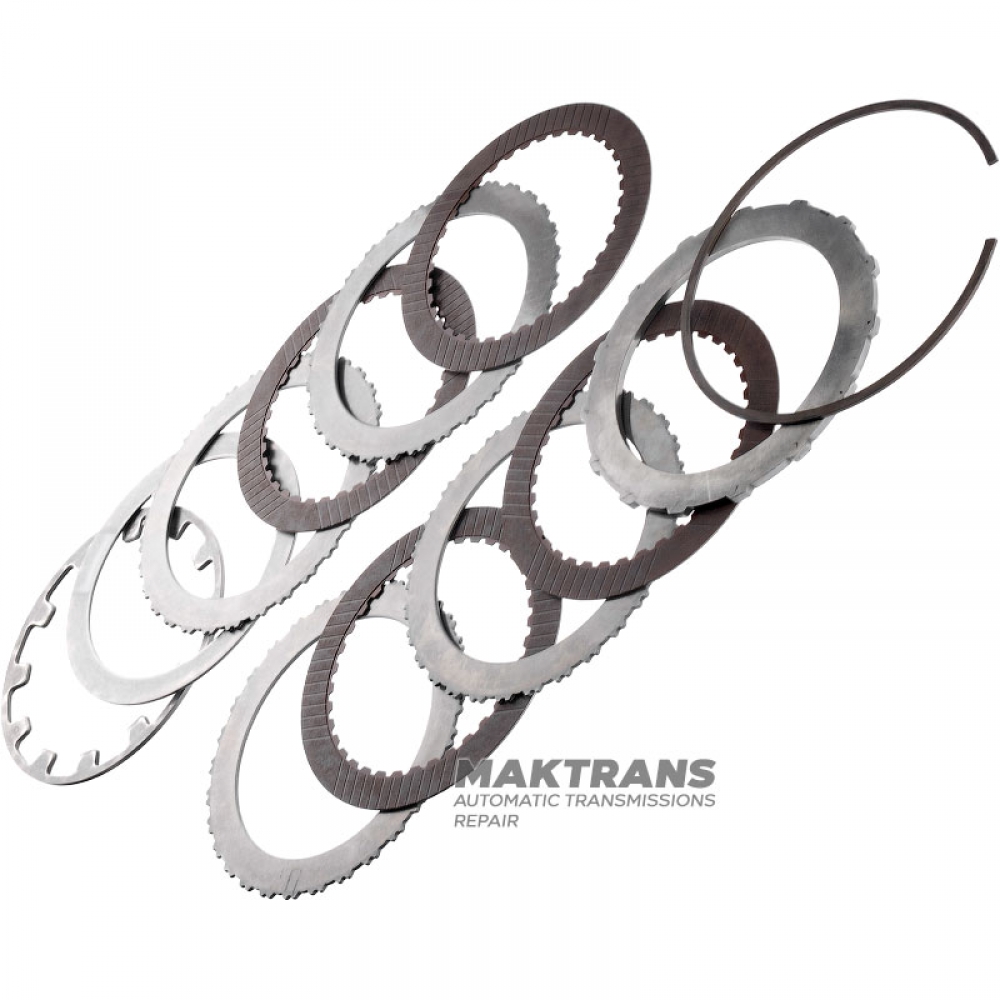

B3 Brake Steel and Friction Disc Set (2-3-4-6) 31662-1XJ0B - 4 friction discs, total set thickness 18.05 mm

• Total thickness of the set (without spring discs) - 18.05 mm;

Support disk:

• Thickness - 3.95 mm;
• Inner diameter - 115.80 mm;
• Number of teeth - 15 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 147 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 115.90 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 4 pcs.;

Spring disc (petal):

• Thickness - 2.70 mm;
• Outer diameter - 149.30 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.65 mm;
• Outer diameter - 149.30 mm;
• Inner diameter - 119.20 mm;
• Number of discs in the set - 1 pc.;
