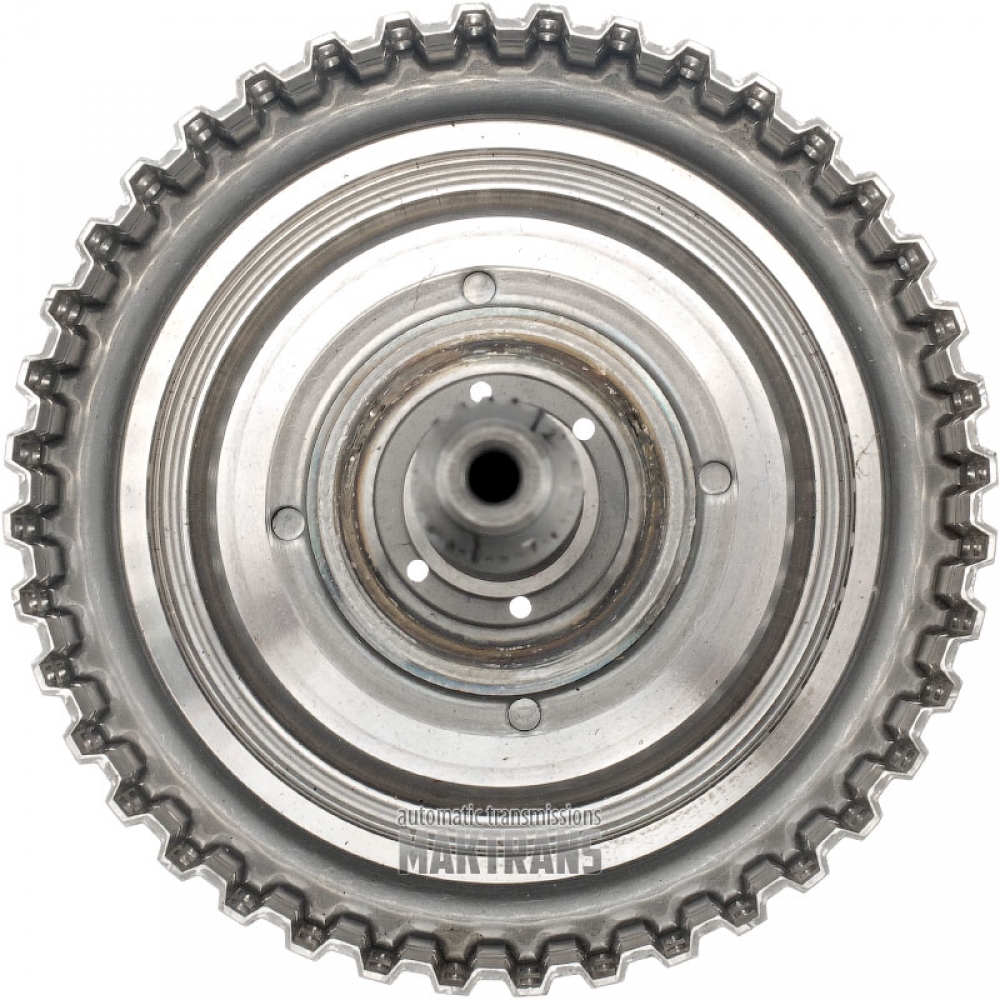

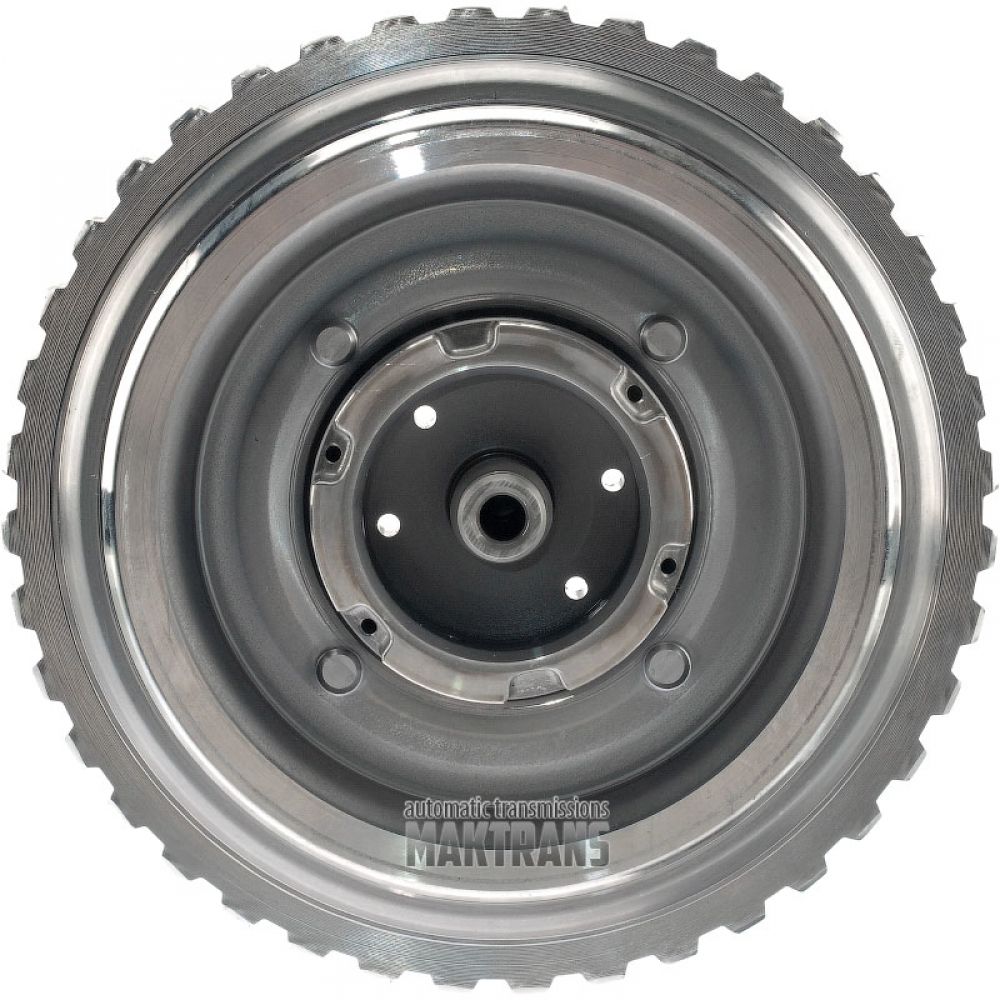

C1 / C2 Clutch drum TOYOTA U760 / [empty, without plates and pistons]

• Total shaft height - 235 mm;
• Number of splines on the shaft - 18 pcs.;
• The outer diameter of the spline part is 23.50 mm;

C1/C2 Clutch drum:

• The height of the wall on the outside is 43.45 mm;

Heights on the inside:

• From the base of the wall to the locking ring - 18 mm;
• From the top edge to the locking ring - 13 mm;
