Main Specifications
Condition (used, new):
used and inspected
If you order more than 2 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 2 pcs. |
  |
| Ukraine | 3 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)

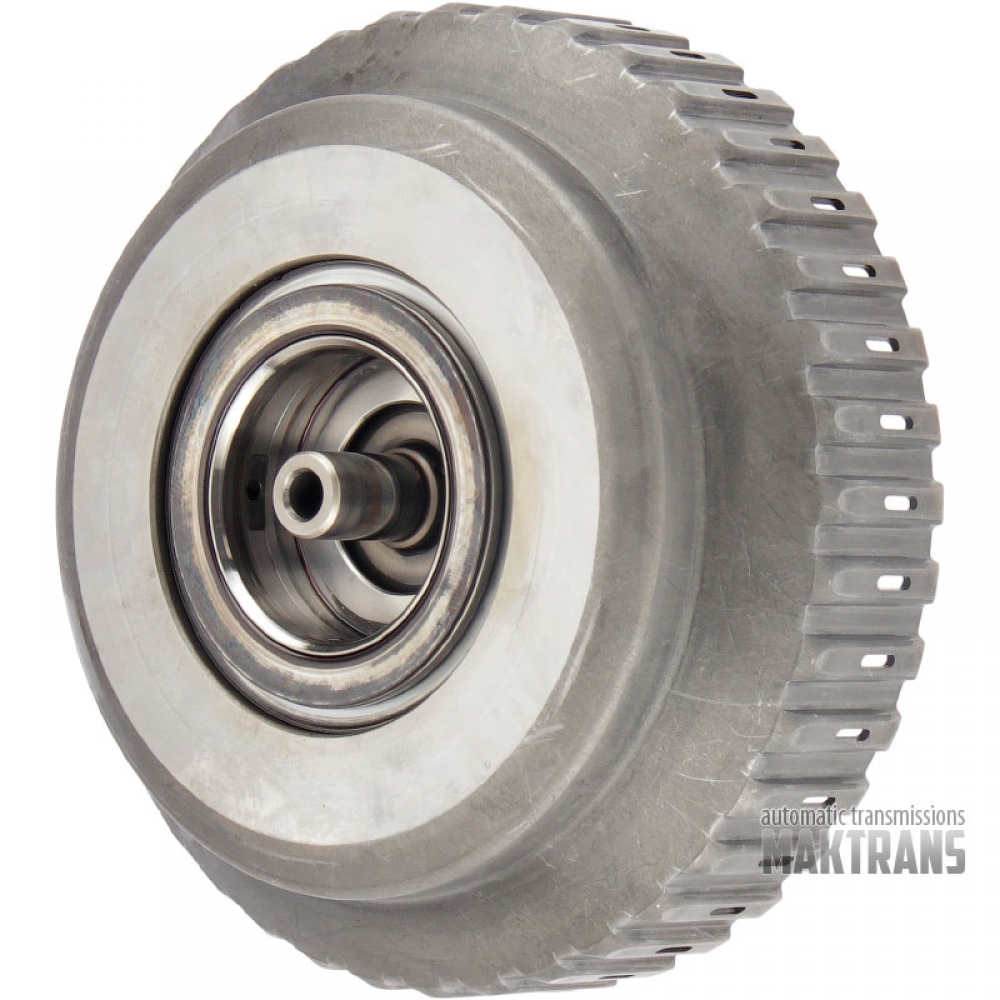

- Total height - 125 mm.
- The height of the intermediate shaft from the base inside the drum is 95 mm.
- The diameter of the working parts of the intermediate shaft is 22 mm.
- The number of splines on the shaft is 21 pcs.
- The diameter of the splined part is 21.50 mm.
- The height of the friction and steel plate drum (from the piston to the retaining ring seat) is 12.50 mm.
- The diameter of the pilot on the back of the drum is 13.05 mm.
- Pilot height -25.30 mm.
