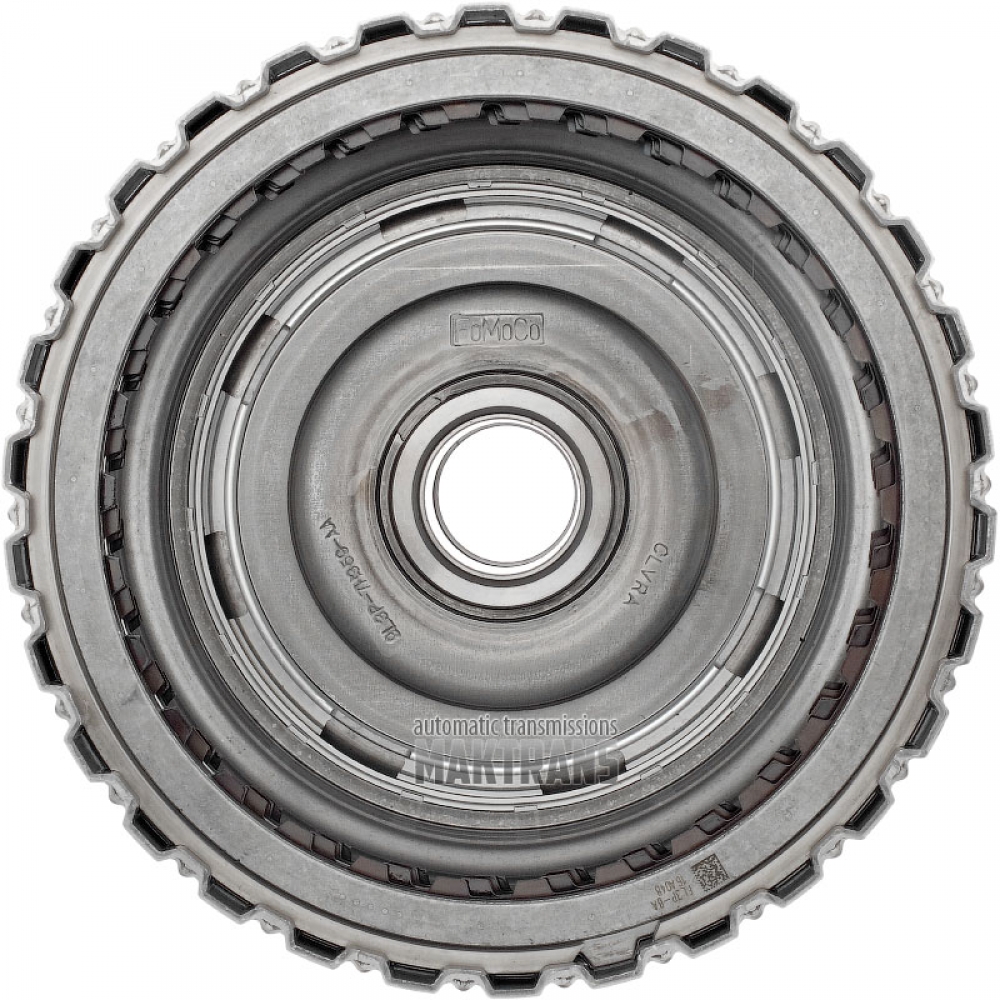

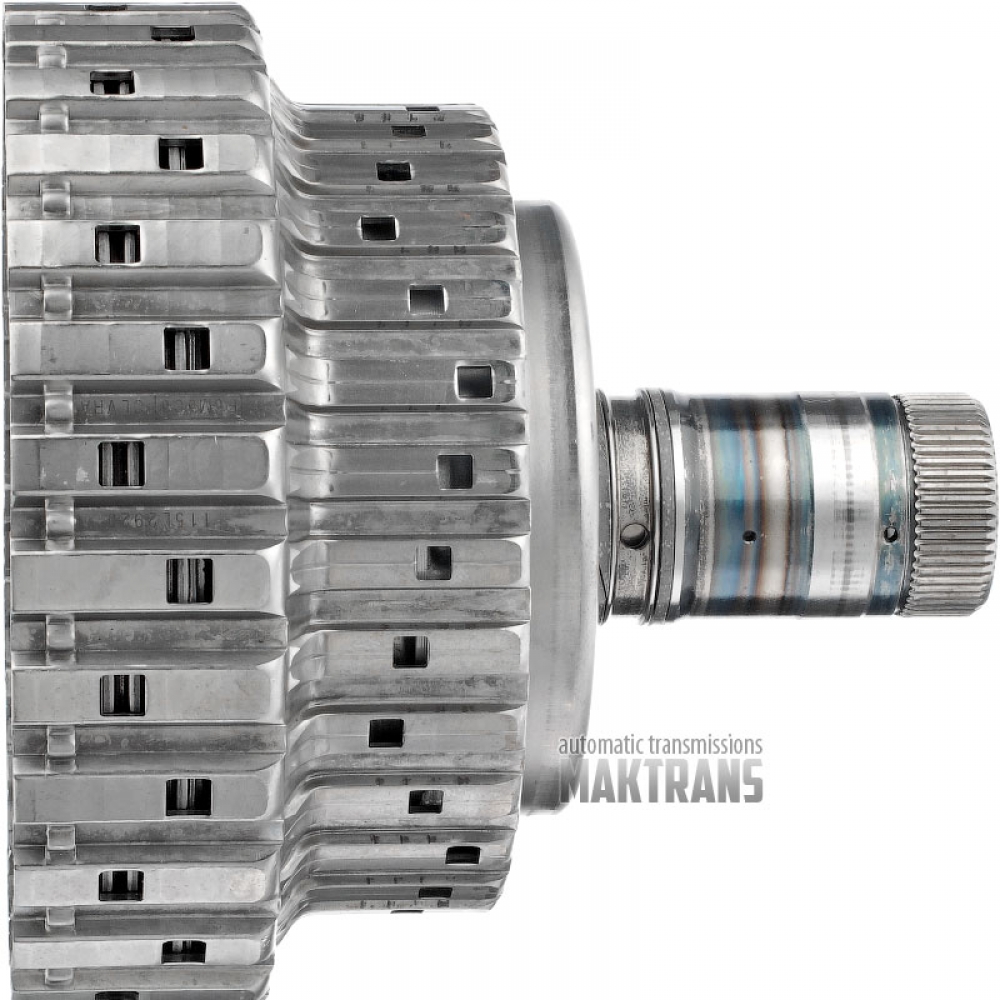

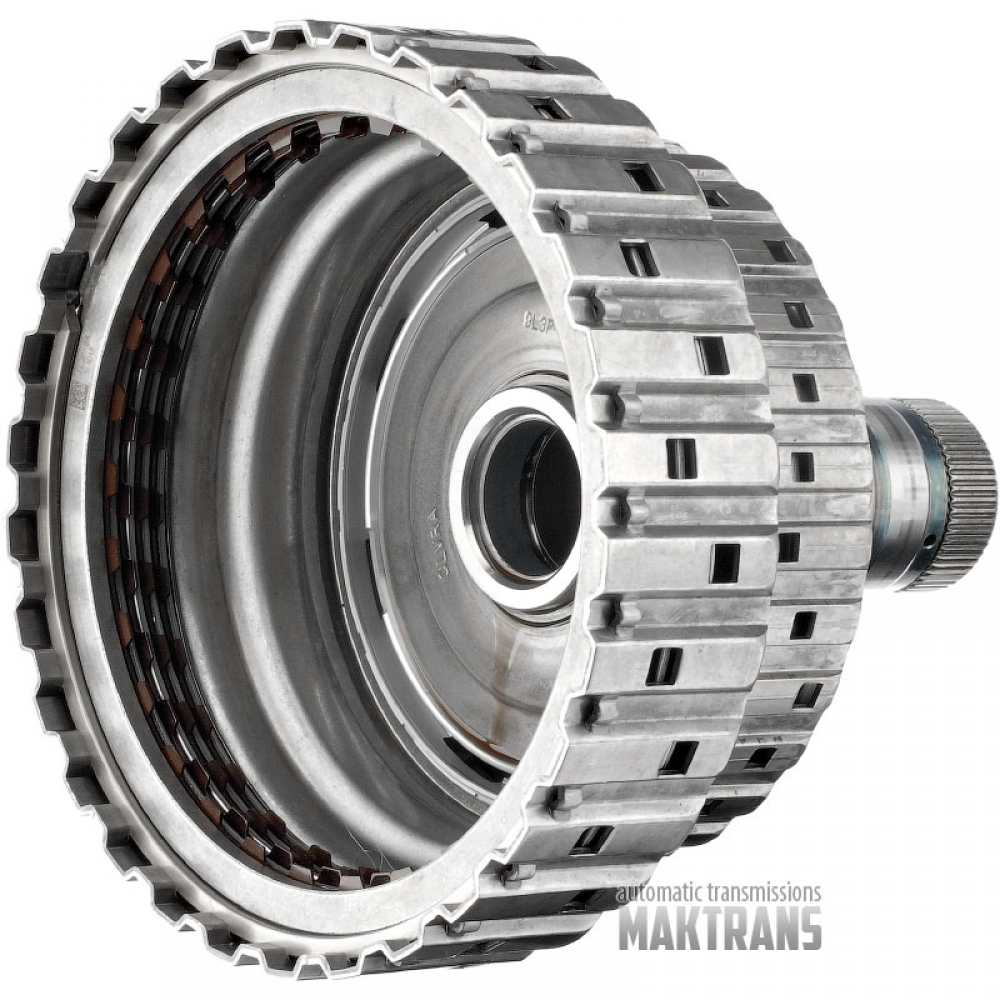

Drum DIRECT B Clutch 6R60 6R75 6R80 9L3P-7H359-AA / [4 friction plates, total set thickness 21.05 mm]

Drum:

• Total height - 22 mm;
• Number of splines - 56 pcs.;
• The outer diameter of the spline part is 45 mm;
• Inner diameter of the sleeve - 34 mm;
• Outer diameter of the drum - 200.35 mm;
• Height from piston to retaining ring - 22.50 mm;

Direct Clutch friction and steel plate kit:

• The total thickness of the plate pack is 21.05 mm.

Thrust plate:

• Inner diameter - 163.75 mm;
• Number of teeth - 30 pcs.;
• Thickness - 5.05 / 4.10 mm;
• Number of plates - 1 piece;

Steel plate:

• Internal diameter - 163.65 mm.
• Number of teeth - 30 pcs.;
• Thickness - 2.10 mm;
• Number of plates - 4 pcs.;

Friction plate:

• Outer diameter - 187.50 mm;
• Number of teeth - 30 pcs.;
• Thickness - 2.15 mm;
• Number of plates - 4 pcs.;

Spring disc:

• Thickness - 0.80 mm
