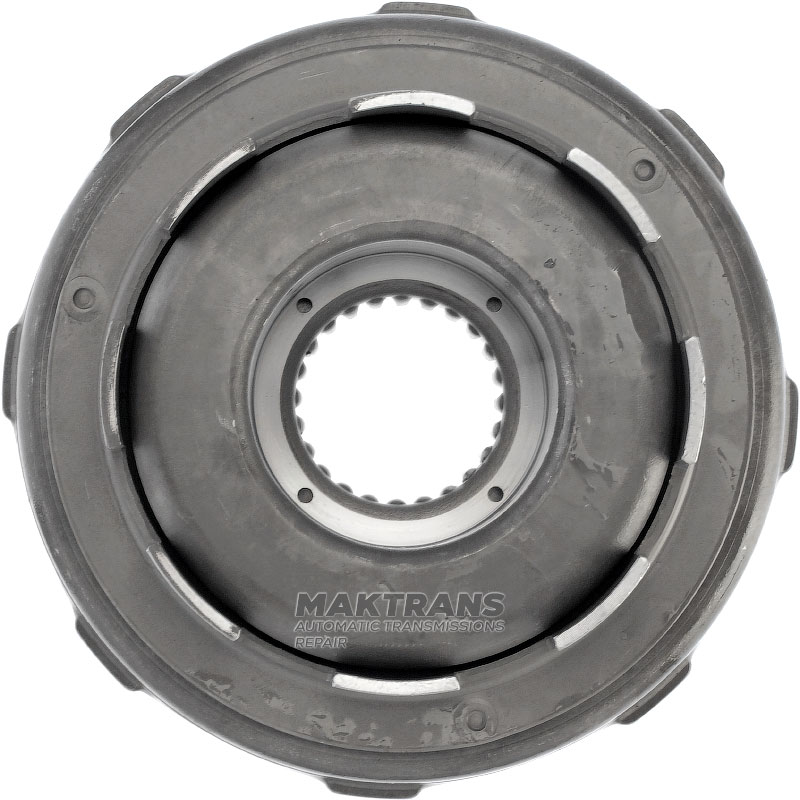

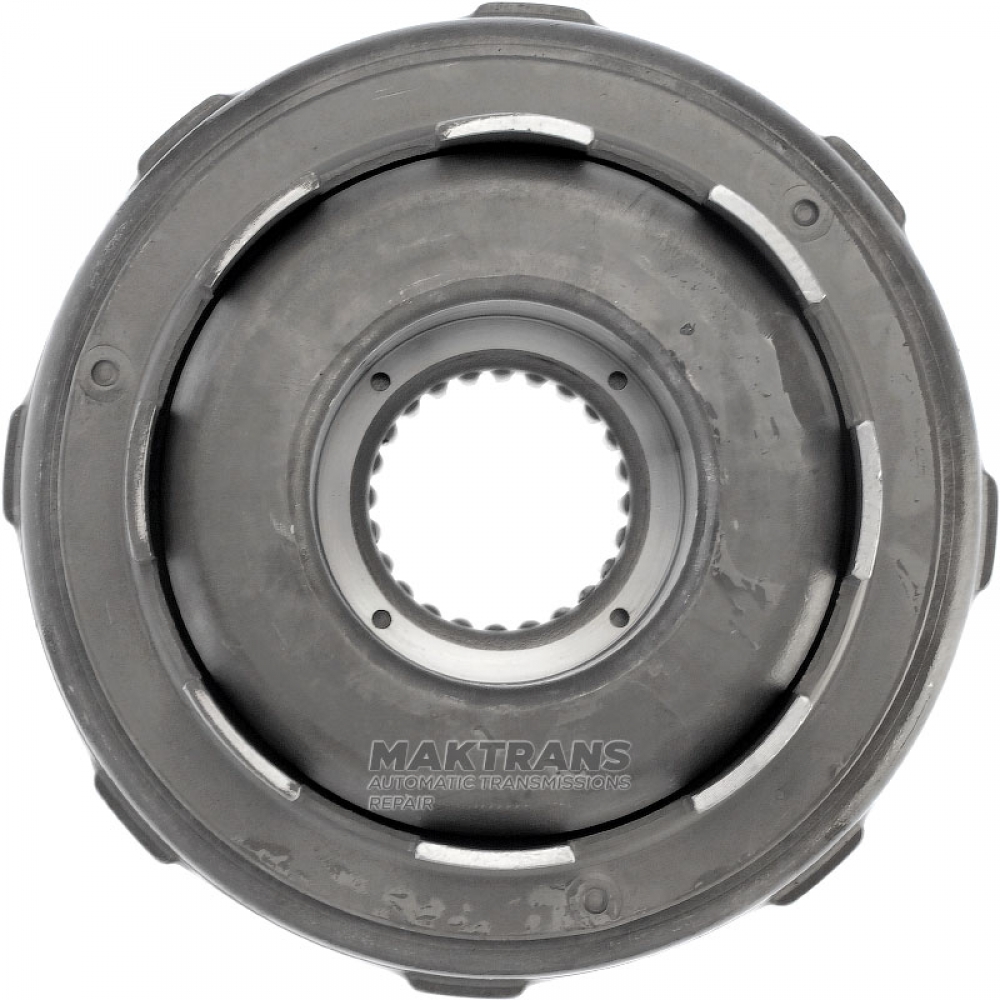

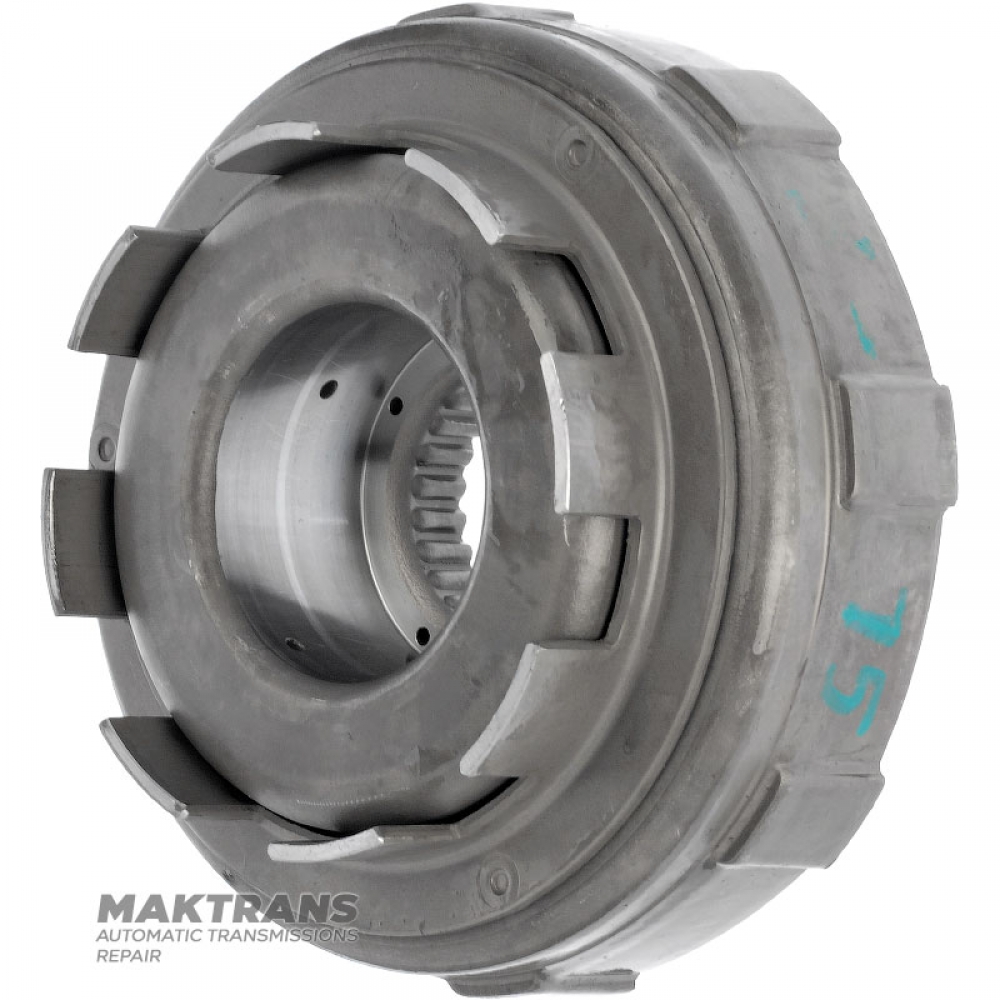

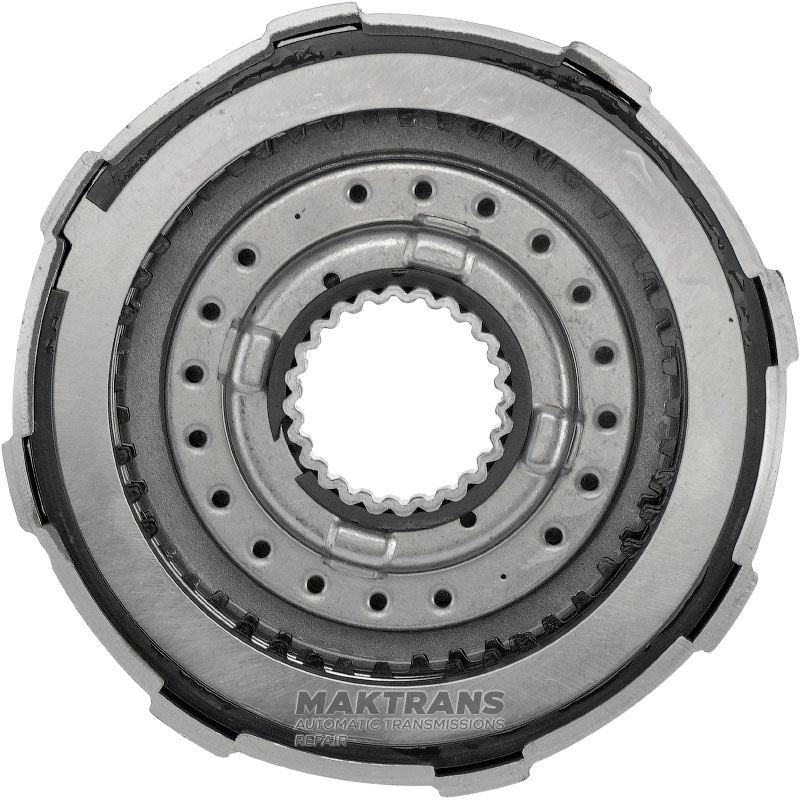

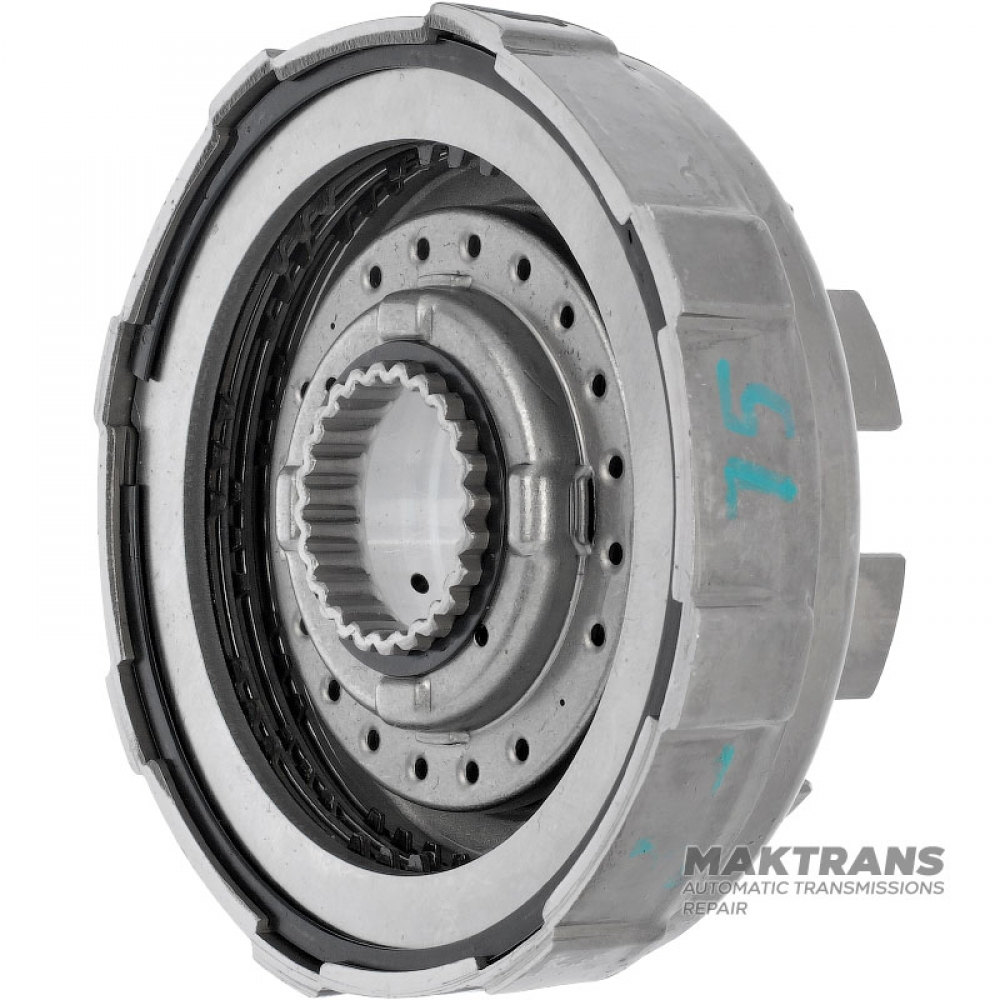

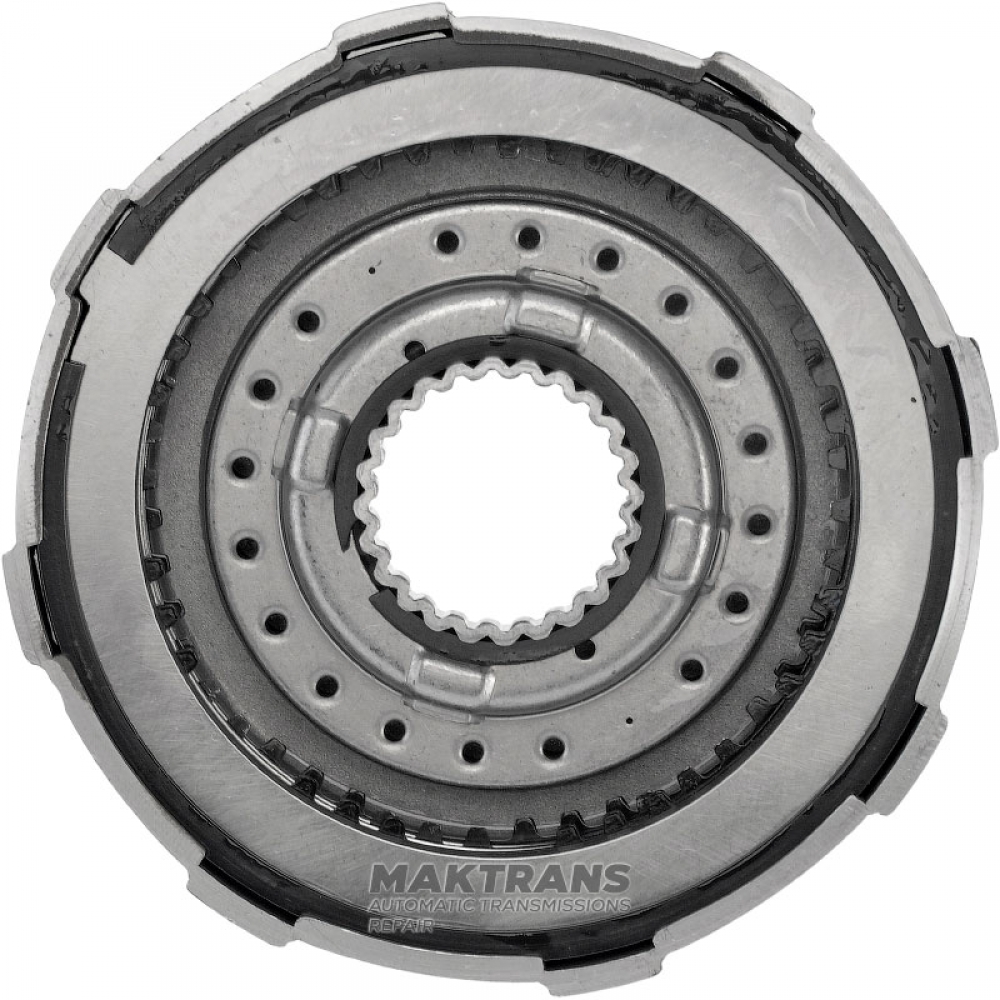

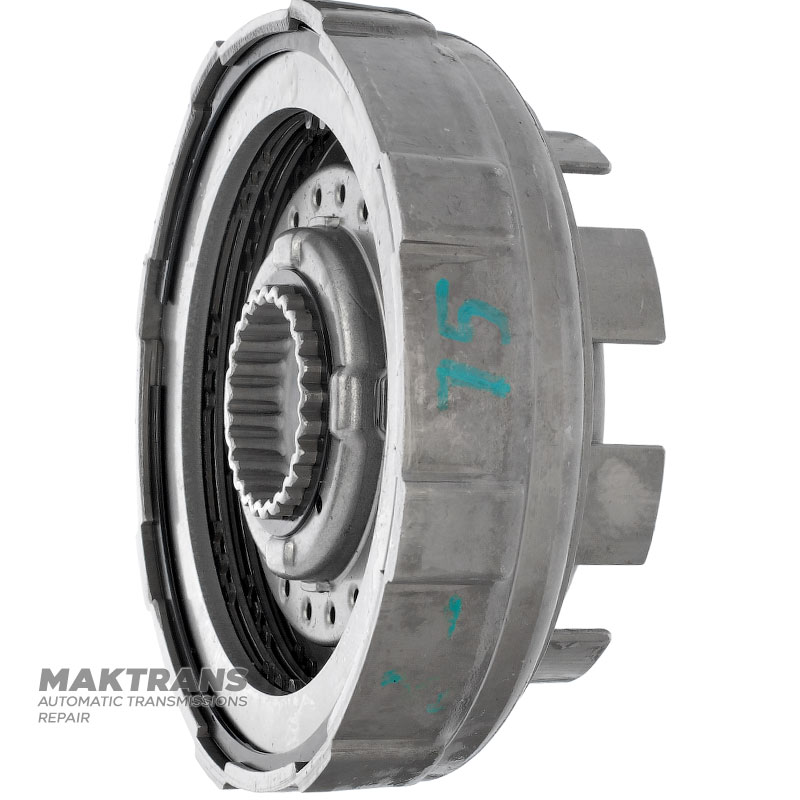

Drum Direct Clutch Aisin Warner 03-70LS / 03-72LS / 3 friction plates (total thickness of the set 16.60 mm)

Drum:

• Total height - 55 mm;
• Drum outer diameter - 141.50 mm;
• Inner diameter for the hub - 51.95 mm;
• Height from piston to retaining ring - 18 mm;

Direct Clutch steel and friction plate kit:

• The total thickness of the set is 16.60 mm;

Thrust plate:

• Thickness - 3.95 mm;
• Inner diameter - 101.85 mm;
• Number of teeth - 8 pcs.;
• Number of plates - 1 piece;

Friction plate:

• Thickness - 2.30 mm;
• Outer diameter - 127.2 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 1 piece;

Friction plate:

• Thickness - 2.03 mm;
• Outer diameter - 126.15 mm;
• Number of teeth - 24 pcs.;
• Number of plates - 2 pcs.;

Steel plate:

• Thickness - 2 mm;
• Inner diameter - 102 mm;
• Number of teeth - 8 pcs.;
• Number of plates - 2 pcs.;

Steel plate:

• Thickness - 1.8 mm;
• Inner diameter - 102 mm;
• Number of teeth - 8 pcs.;
• Number of plates - 1 piece;

Tags: 26602-66D30 26692-57B10 26621-65DU0 26691-57B00 26622-65DT0 26632-57BT1
