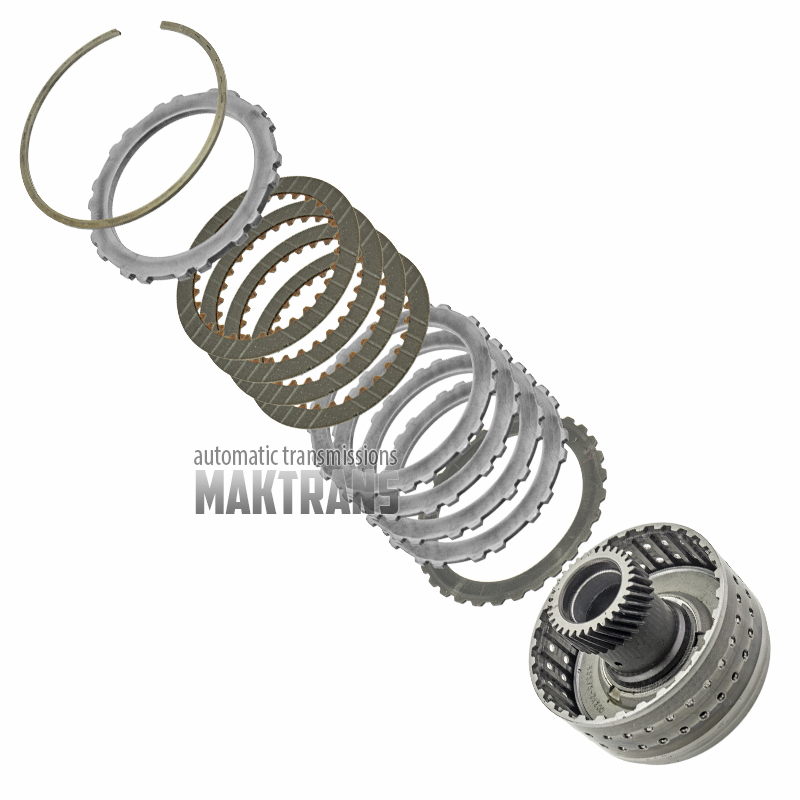

Drum Direct Clutch Hyundai / KIA A5GF1 4555039502 455503A200 4556139520 455613A200 [32 teeth (out.Ø 49.40 mm), Direct Clutch 4 friction plates

Drum Direct Clutch:

• Overall height - 106 mm;
• Drum outer diameter - 111.95 mm;
• Overrunning clutch hub outer diameter - 68.55 mm;
• Height from piston to retaining ring - 20 mm; (for Direct Clutch kit 4 friction plates);

sun gear:

• Number of teeth - 32 pcs;
• Outer diameter - 49.40 mm;
• Gear width - 18.15 mm;
• Sleeve inner diameter - 29.95 mm;

Fiction and steel plate kit Direct Clutch :

• The total thickness of the pack is 23.15 mm;

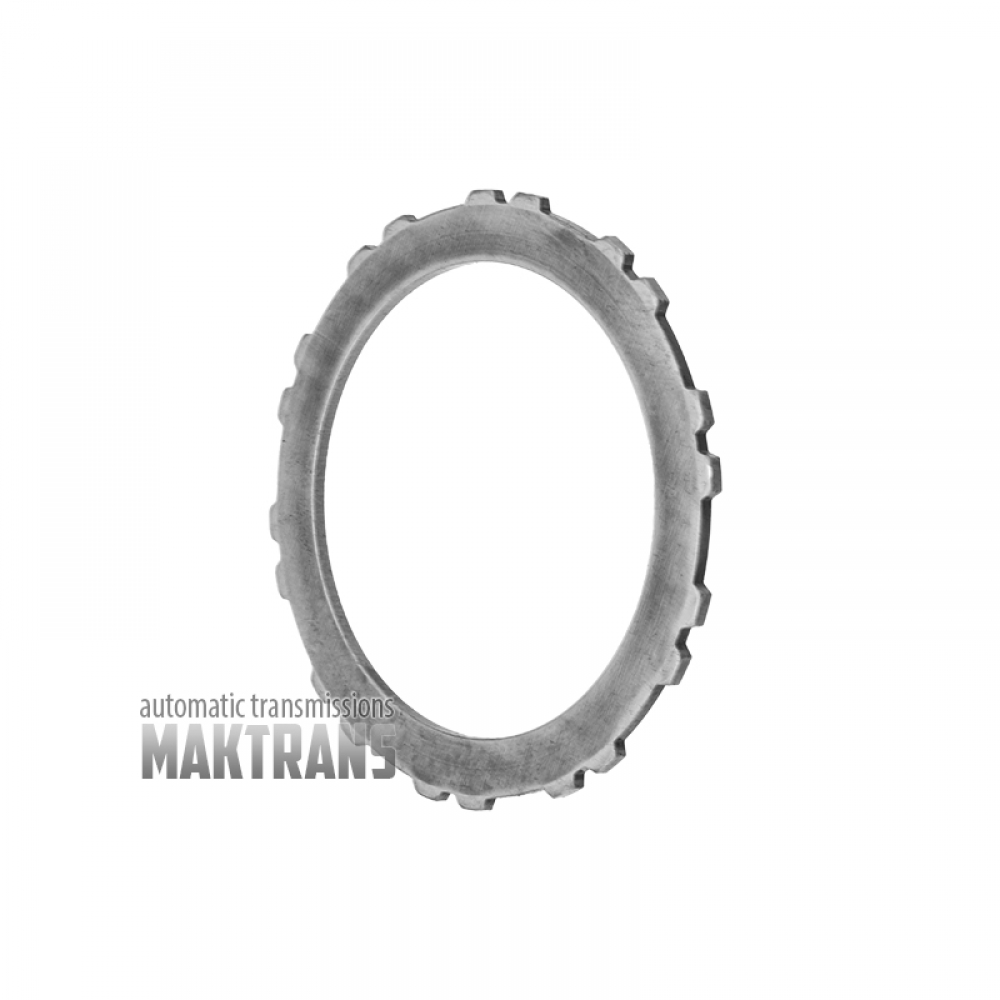

Thrust plate:

• Thickness - 4.55 mm;
• Number of teeth - 20 pcs;
• Inner diameter - 81.80 mm;
• Quantity in a set - 1 piece;

Friction plate:

• Thickness - 1.70 mm;
• Number of teeth - 30 pieces;
• Outer diameter -101.50 mm;
• Quantity in a set - 4 pieces;

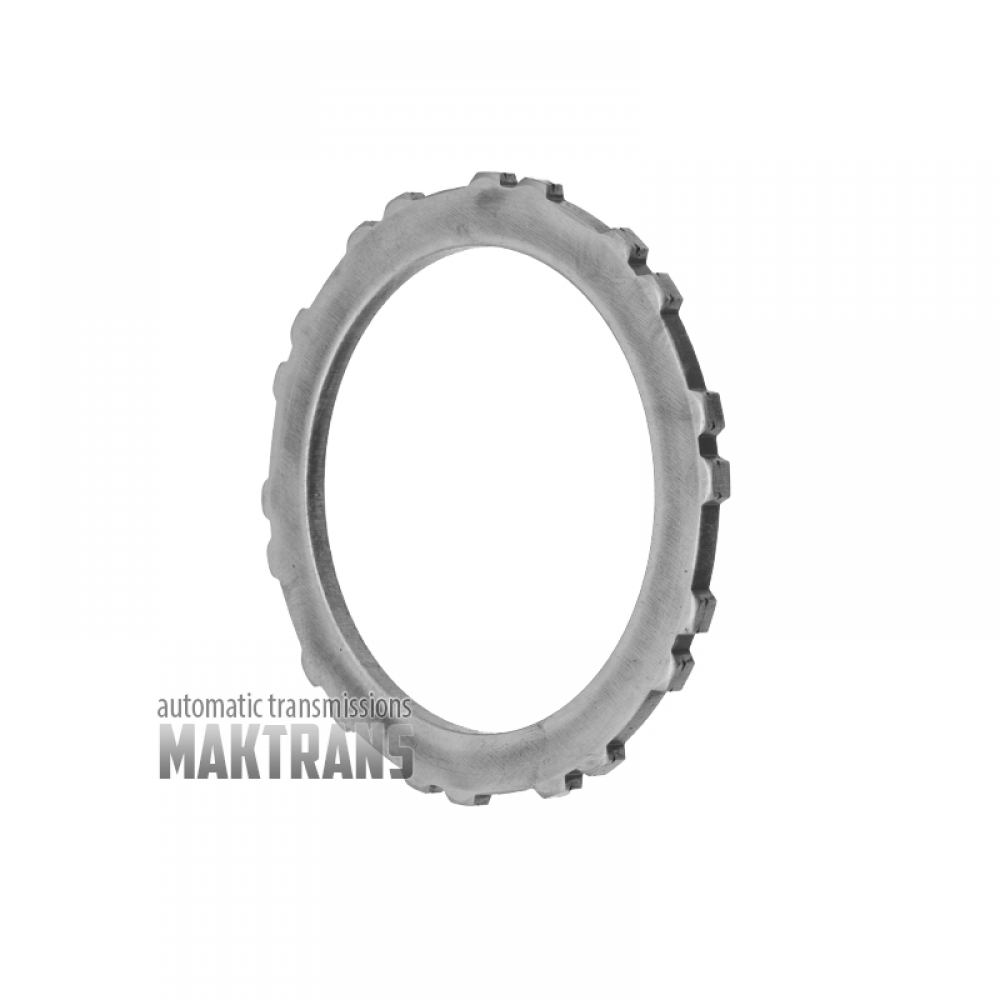

Steel plate:

• Thickness - 2.90 mm;
• Number of teeth - 20 pcs;
• Inner diameter - 81.80 mm;
• Quantity in a set - 4 pieces;

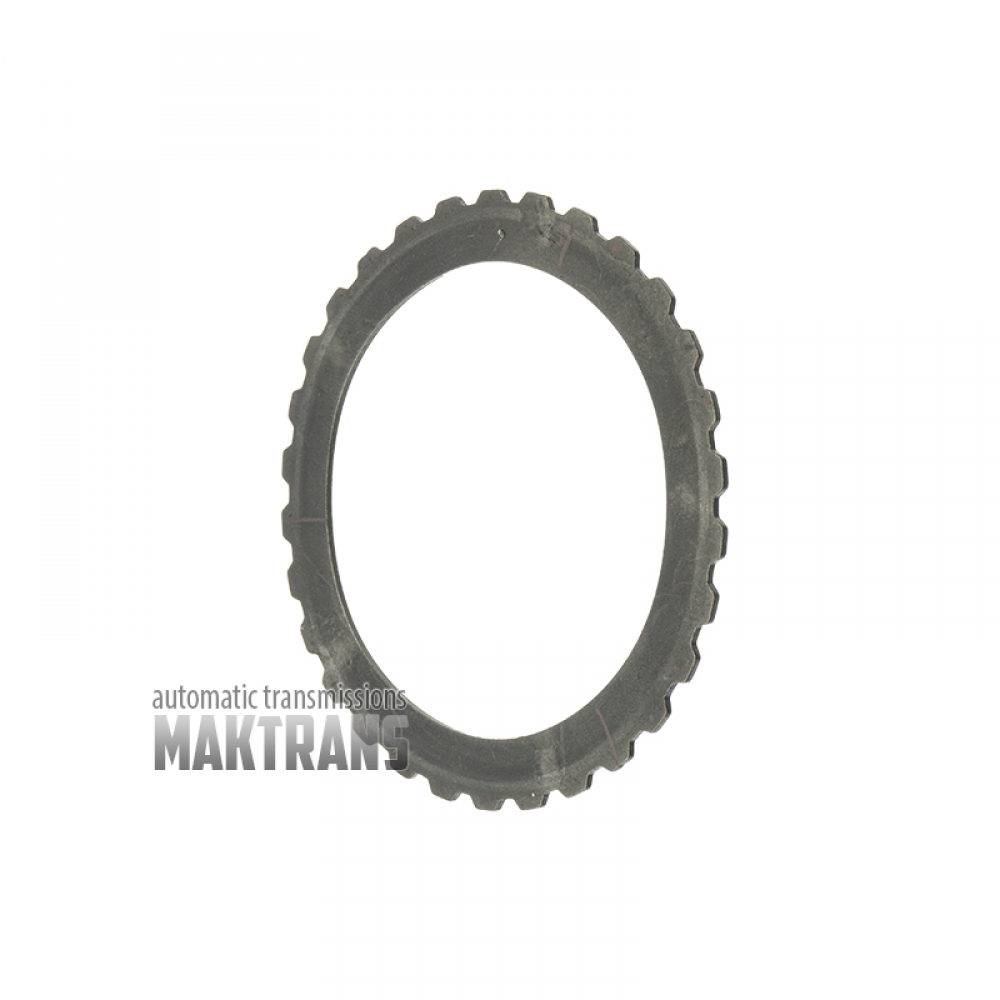

Spring plate:

• Thickness - 1.60mm;
• Number of teeth - 30 pieces;
• Quantity in a set - 1 piece;
