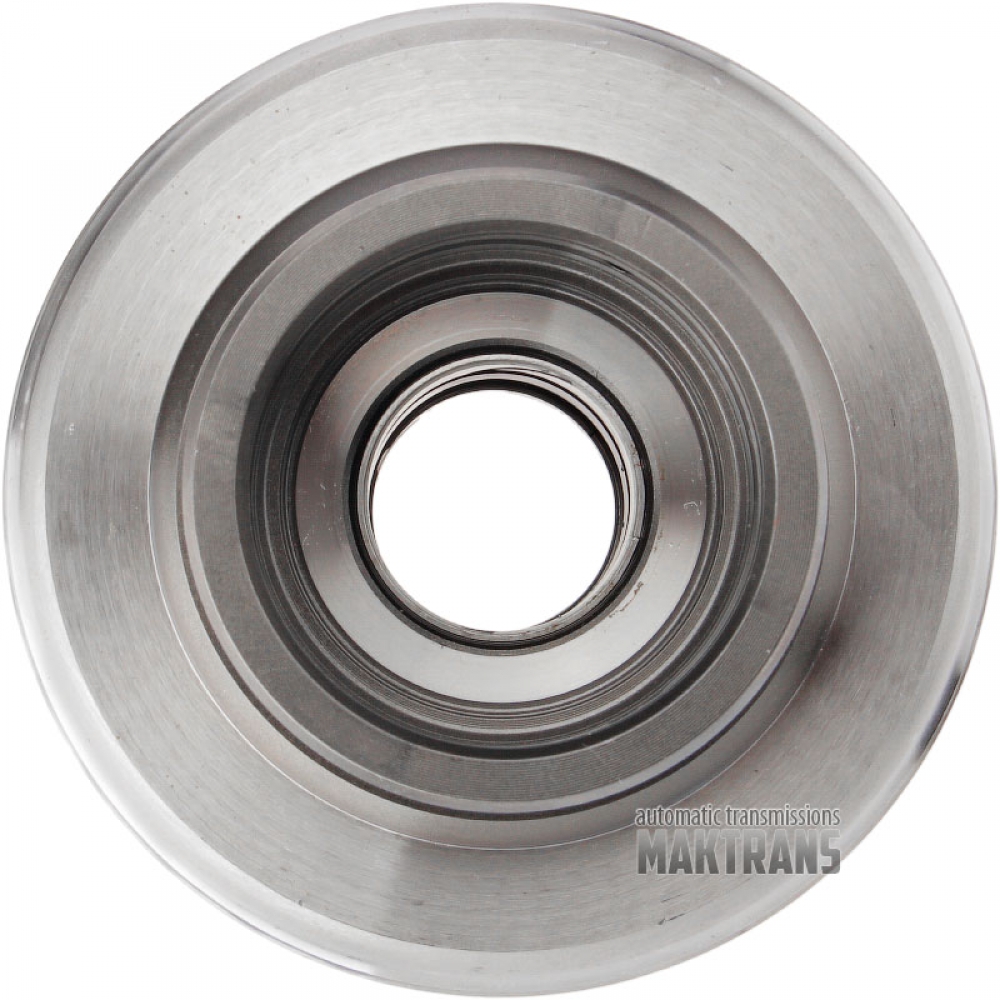

Direct Clutch drum assembly HYUNDAI / KIA A5GF1 455503A200 [4 friction plates, 32 teeth sun gear, outer Ø 49.45 mm]

• Total height - 106 mm;
• Outer diameter of the drum - 112 mm;

Sun gear:

• Number of teeth - 32 pcs.;
• Gear outer diameter - 49.45 mm;
• Gear width - 18 mm;
• Inner diameter of the sleeve - 30.05 mm;

Direct Clutch steel and friction plate kit:

• The total thickness of the set is 23.30 mm;

Thrust plate:

• Thickness - 4.55 mm;
• Inner diameter - 81.85 mm;
• Number of teeth - 20 pcs.;
• Kit plate quantity - 1 piece;

Steel plate:

• Thickness - 2.90 mm;
• Inner diameter - 81.85 mm;
• Number of teeth - 20 pcs.;
• Kit plate quantity - 4 pcs.;

Friction plate:

• Thickness - 1.75 mm;
• Outer diameter - 101.50 mm;
• Number of teeth - 30 pcs.;
• Kit plate quantity - 4 pcs.;

Spring plate:

• Number of teeth - 30 pcs.;
• Inner diameter - 81.20 mm;
• Thickness - 1.65 mm;

Tags: 455503A200 455753A200
