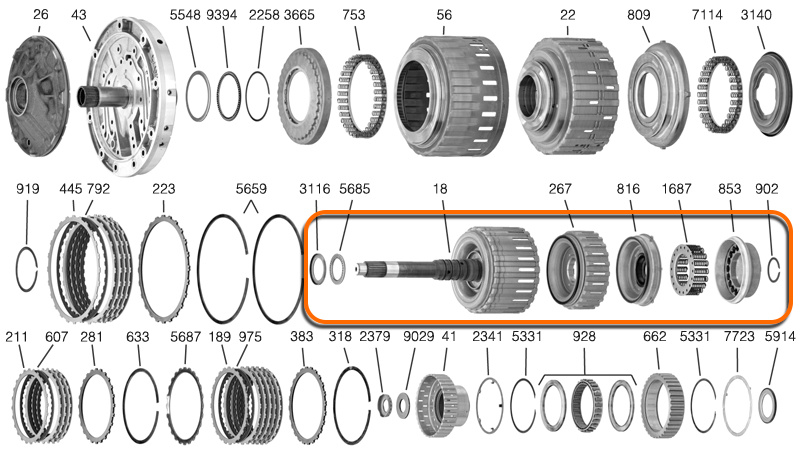

Input shaft, drum C4 / C1Clutch (puts, without discs) AB60E, AB60F 07-up - 357100C010, 3571060010

Input shaft, drum C4 / C1Clutch (puts, without discs) AB60E, AB60F 07-up - 357100C010, 3571060010
Input shaft, drum C4 / C1Clutch (puts, without discs) AB60E, AB60F 07-up - 357100C010, 3571060010

Worldwide Shipping 🌎

Product Code:
AB60FDRFWD
Product model copied to clipboard
Brand
TOYOTA
Availability: Out Of Stock
Weight (kg): 4.7
€171.00

Shipping Icon Shipping to United States from €96.39

Main Specifications
Condition (used, new): used and inspected
Type: Input shaft, C4/C1Clutch drum
Applicability: Lexus GX470 (V8 4.6L), LX570 (V8 5.7L) Toyota Landcruiser (5.7L), Sequoia (5.7L), Tundra (4.6L, 5.7L)
  • Product overview
  • Shipping & Payment
  • Questions - Answers (0)
  • Общая высота - 290 мм;
  • Высота вала - 215 мм;
  • Количество шлицев на валу - 24 шт.;
  • Наружный диаметр шлицевой части - 25.35 мм;

Наружные диаметры рабочих частей:

  • нар.Ø 19.15 мм;
  • нар.Ø 25.85 мм;
  • нар.Ø 35.95 мм;

  • Количество тефлоновых колец на валу - 4 шт.;
  • Высота барабана C4 / C1 Clutch- 93 мм;
  • Наружный диаметр барабана - 139.20 мм;
  • Высота от поршня до стопорного кольца C4 Clutch - 18 мм;
  • Высота от поршня до стопорного кольца C1 Clutch - 27 мм;



Tags: 357100C010, 3571060010
