Drum K27 Clutch and output shaft [2WD] Mercedes-Benz 725.0 [total height 197 mm, 30 splines (ext.Ø 31.65 mm), 5 friction plates]

• Total height - 197 mm;
• The number of splines is 30 pcs;
• The outer diameter of the slotted part is 31.65 mm;

Parking gear:

• The number of teeth is 16 pcs;
• External diameter -153.85 mm;

Friction and steel plate kit K27 Clutch:

• Total thickness - 23.85 mm;

Thrust plate:

• Thickness - 3.95 mm;
• Inner diameter - 120.25 mm;
• The number of teeth - 36 pcs;
• Kit plate quantity - 1 pc;

Friction plate:

• Thickness - 2.10 mm;
• External diameter - 139.30 mm;
• The number of teeth - 32 pcs;
• Kit plate quantity - 5 pcs;

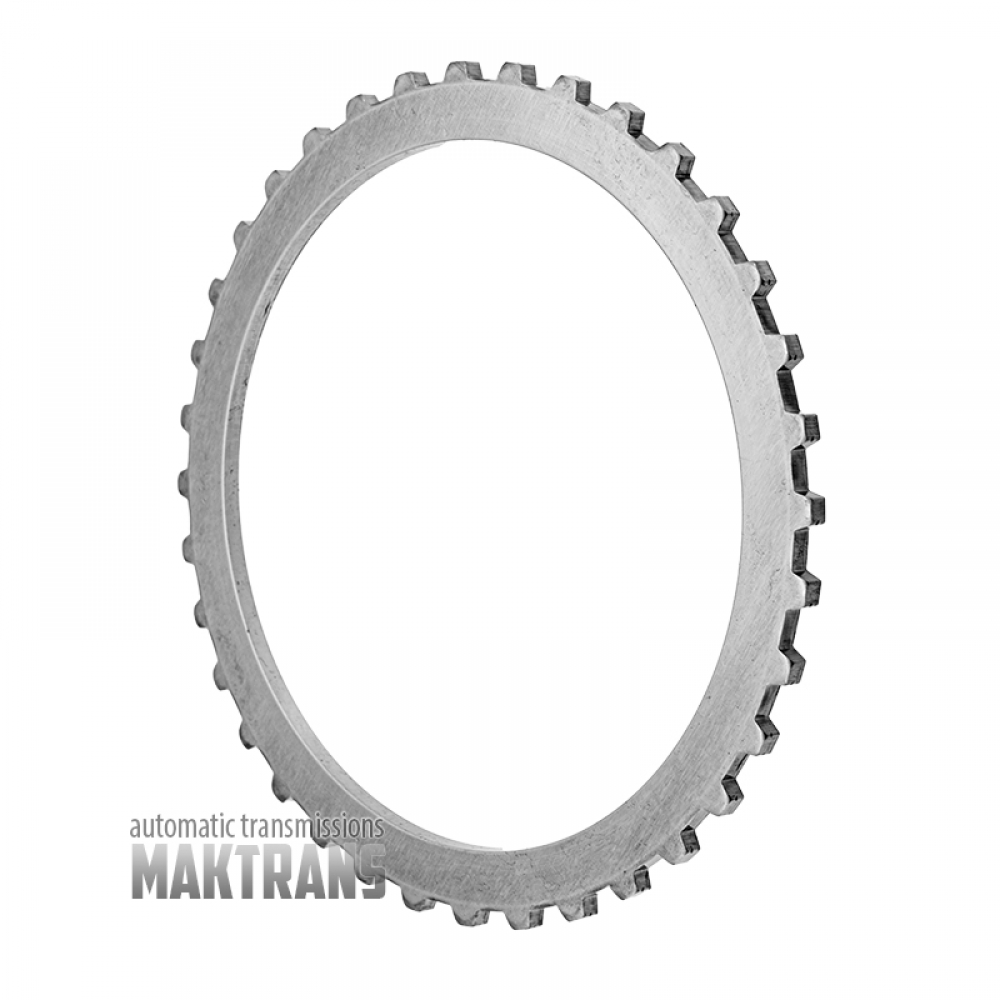

Steel plate:

• Thickness - 1.75 mm;
• Inner diameter - 120.15 mm;
• The number of teeth - 36 pcs;
• Kit plate quantity - 5 pcs;

Spring plate:

• Thickness - 1.70 mm;
