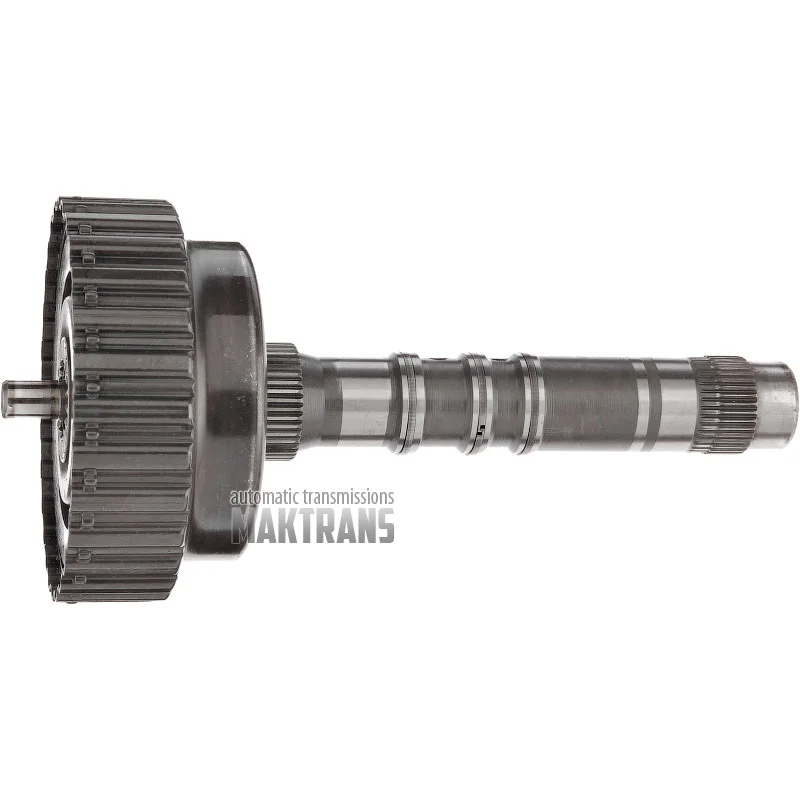

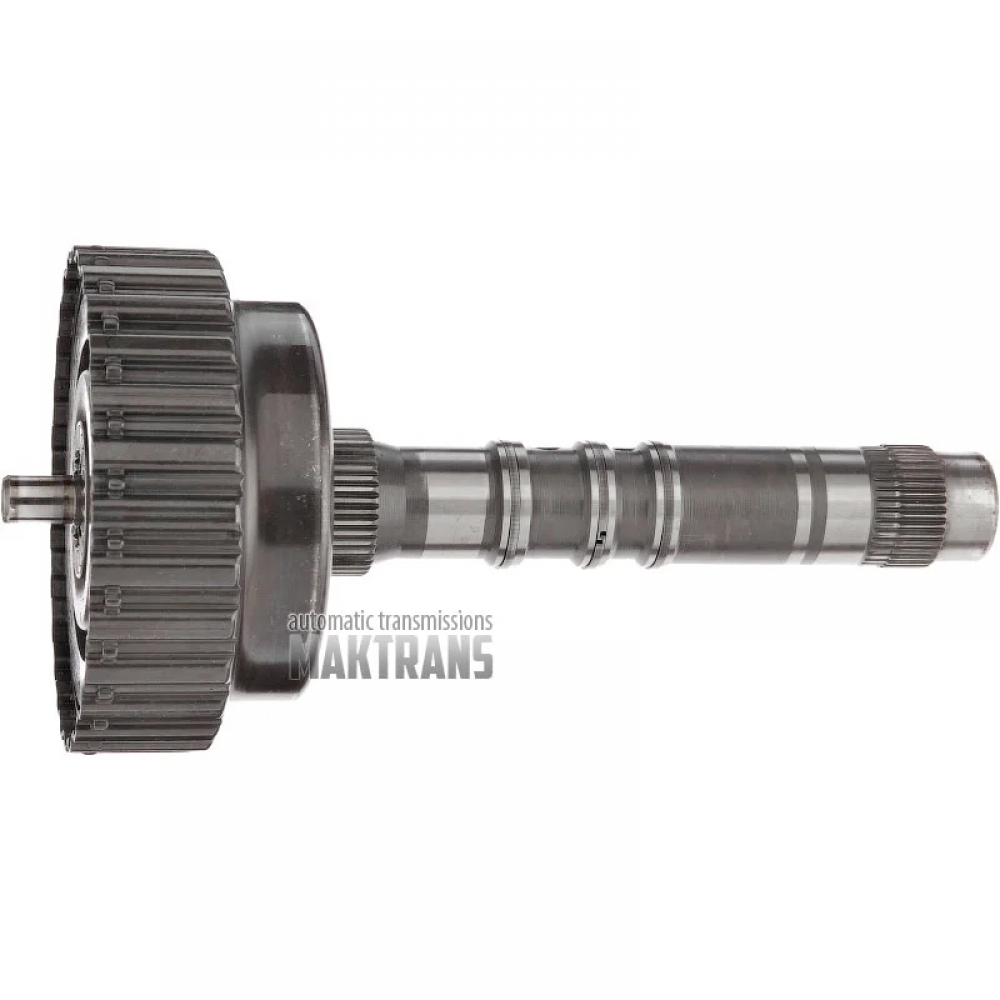

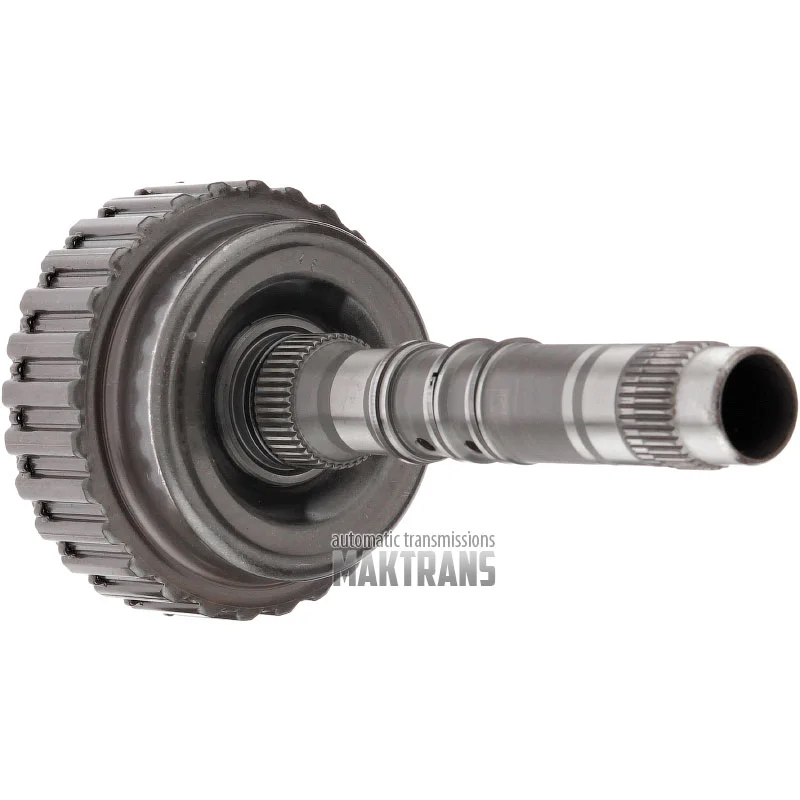

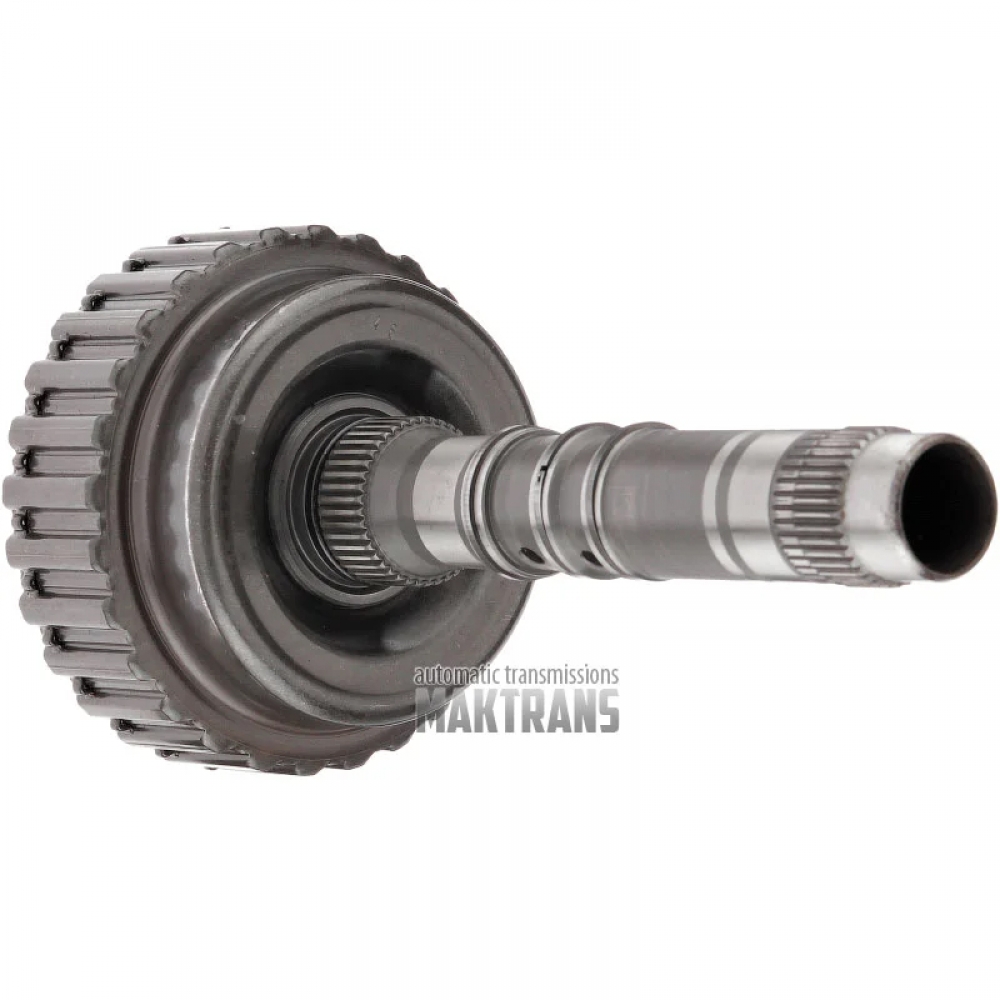

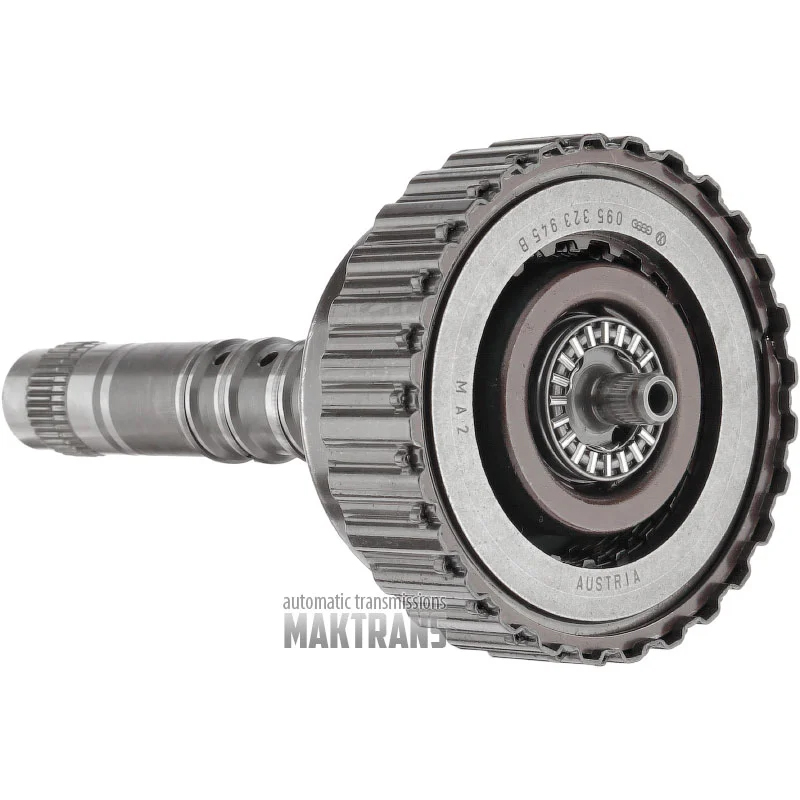

Drum K3 (3-4 clutch) 01M 01N 01P 096 097 098 099 AR4 AD4 AD8 89-up 01M323921EX 095323945B / [for 2.8L engines, 6 friction plates, without bushing on the front part of the shaft]

Drum K3:

• Total height - 229 mm;
• Outer diameter of the drum - 113.05 mm;

Number of splines on the shaft:

• 36 pcs / outer Ø 29.15 mm;
• 42 pcs / outer Ø 34 mm;

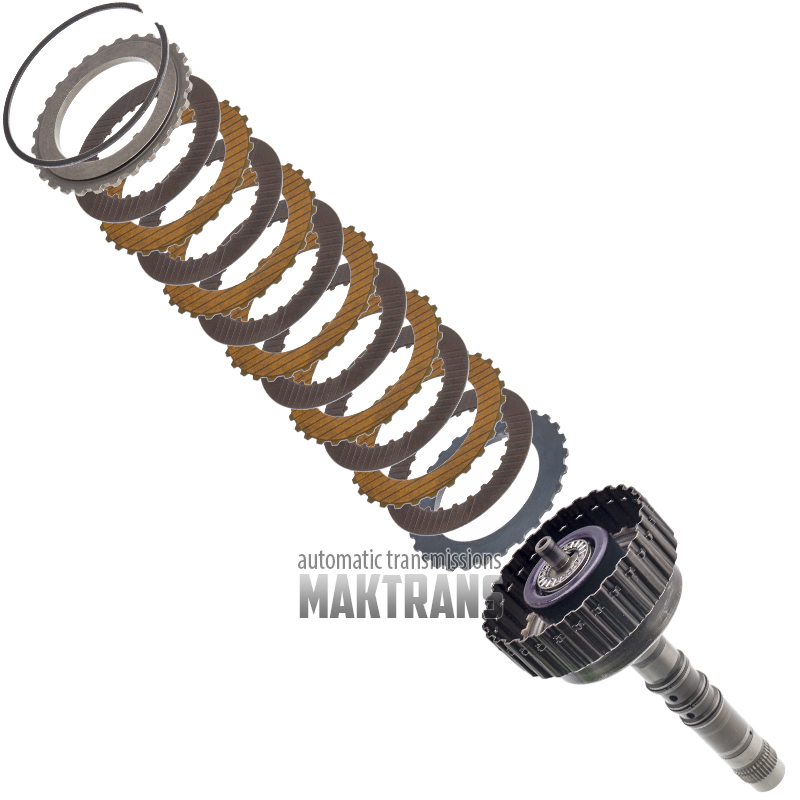

Steel and friction plate kit K3 (3-4 Clutch):

• The total thickness of the set is 19.20 mm;

Thrust plate:

• Thickness - 5.35 mm / 3.05 mm;
• Inner diameter - 72.25 mm;
• Number of teeth - 28 pcs.;
• Number of plates - 1 piece;

Friction plate (one-sided, internal teeth):

• Thickness - 1.25 mm;
• Outer diameter - 103 mm;
• Number of teeth - 22 pcs.;
• Number of plates - 5 pcs.;

Friction plate (double-sided, internal teeth):

• Thickness - 1.60 mm;
• Outer diameter - 103 mm;
• Number of teeth - 22 pcs.;
• Number of plates - 1 piece;

Friction plate (one-sided, external teeth):

• Thickness - 1.20 mm;
• Internal diameter - 72.45 mm;
• Number of teeth - 28 pcs.;
• Number of plates - 5 pcs.;

Pressure plate:

• Thickness - 2.05 mm;
• Number of teeth - 28 pcs.;
• Inner diameter - 72.10 mm;
• Number of plates - 1 piece;
