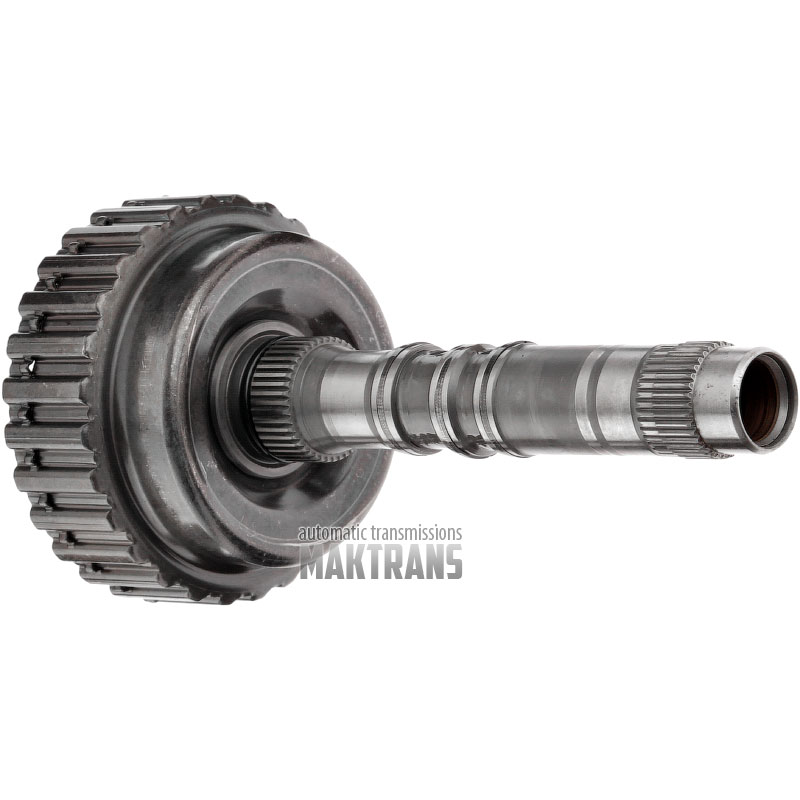

Drum K3 (3-4 clutch) 01M 01N 01P 096 097 098 099 AR4 AD4 AD8 89-up 01M323921EX / [5 friction plates, with bushing on the front of the shaft]

Drum K3:

• Total height - 229 mm;
• The inner diameter of the bushing on the front of the shaft is 20.05 mm;
• Outer diameter of the drum - 113.05 mm;
• Height from the piston to the retaining ring (along the inside of the drum) ~ 22 mm;

Number of splines on the shaft:

• 36 pcs / outer Ø 29.15 mm;
• 42 pcs / outer Ø 34 mm;

K3 friction and steel plate kit (3-4 Clutch):

• The total thickness of the set is 19.05 mm;

Thrust plate:

• Thickness - 5.20 mm / 3 mm;
• Inner diameter - 72.25 mm;
• Number of teeth - 28 pcs.;
• Kit plate quantity - 1 piece;

Friction plate:

• Thickness - 1.60 mm;
• Outer diameter - 103 mm;
• Number of teeth - 22 pcs.;
• Kit plate quantity - 5 pcs.;

Steel plate:

• Thickness - 1.40 mm;
• Inner diameter - 72.20 mm;
• Number of teeth - 28 pcs.;
• Kit plate quantity - 5 pcs.;

Pressure plate:

• Thickness - 2 mm;
• Number of teeth - 28 pcs.;
• Inner diameter - 72.10 mm;
• Kit plate quantity - 1 piece;
