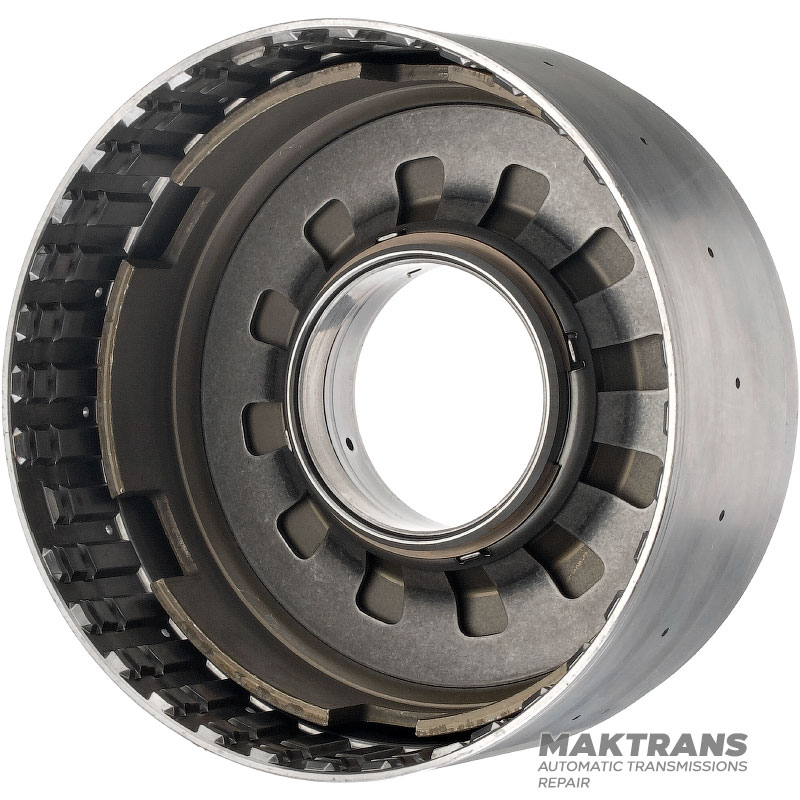

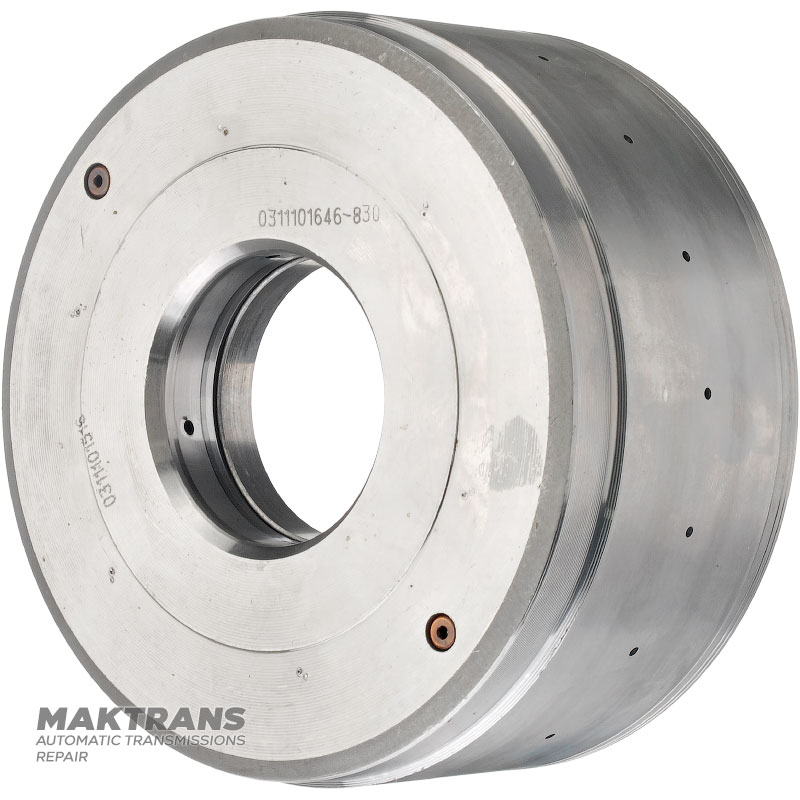

REVERSE Clutch Drum (assembled) 4F27E FN4AEL 99-up — 2 friction discs (height from piston to stopper 12 mm), FN111968XC, FN111968XB, 5S4Z7D044AA

FN111968XC, FN111968XB, 5S4Z7D044AA

• Total height - 70 mm;
• The outer diameter of the drum is 150 mm;
• Inner diameter of the drum (under the hub) - 56.25 mm;
• Inner diameter of the sleeve - 54.20 mm;
• Height from piston to retaining ring - 12 mm;

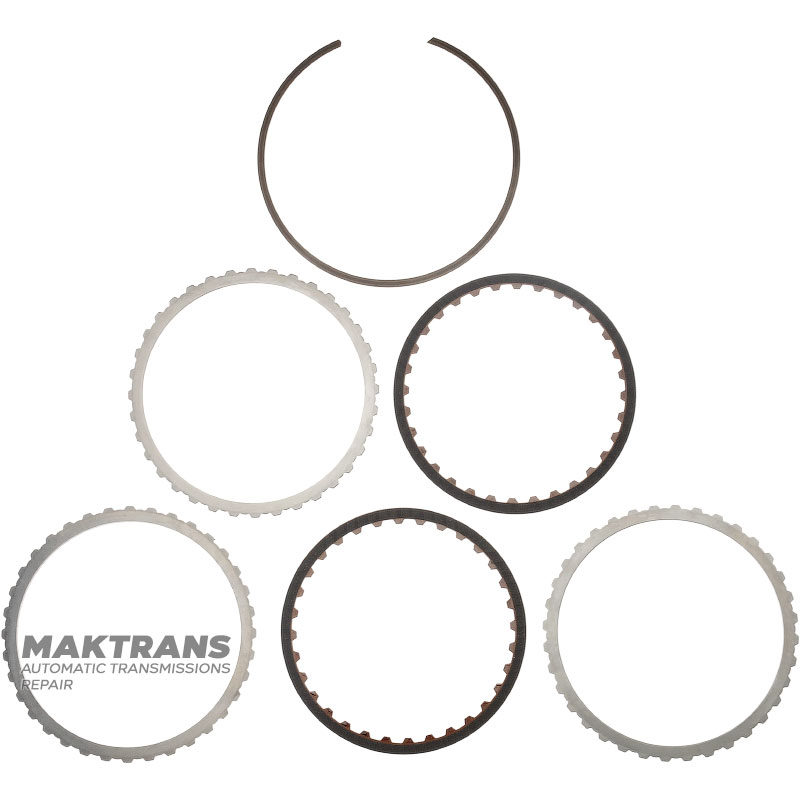

Reverse Clutch Steel and Friction Disc Kit:

• The total thickness of the disc set is 12.25 mm;

Support disk:

• Thickness - 5.75 mm;
• Inner diameter - 127.65 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Inner diameter - 127.45 mm.
• Number of teeth - 36 pcs.;
• Thickness - 1.60 mm.
• Number of disks in the set - 2 pcs.

Friction disc:

• Outer diameter - 140 mm;
• Number of teeth - 32 pcs.;
• Thickness - 1.50 mm;
• Number of discs in the set - 2 pcs.;

The Reverse drum engages the reverse gear. The drum is replaced due to wear of the brake band of the automatic transmission 4F27E, FN4AEL, FS5AEL, FNR5. The brake band, during the engagement of 2 and 4 gears, very slowly stops the drum. Heat is released and the reverse drum overheats. Its shape becomes barrel-shaped and unacceptable for shifting 2 and 4 gears. The Maktrans company eliminates the cause of wear of the brake band of the Mazda 6 and Mazda 5 in the automatic transmission housing.

• Ford Focus (2.0L, 2.3L), Fusion (L4 2.3L)
• Mazda 3 (2.0L, 2.3L), 5 (2.3L), 6 (L4 2.3L, 2.5L)

  ---



Tags: FN111968XC, FN111968XB, 5S4Z7D044AA
