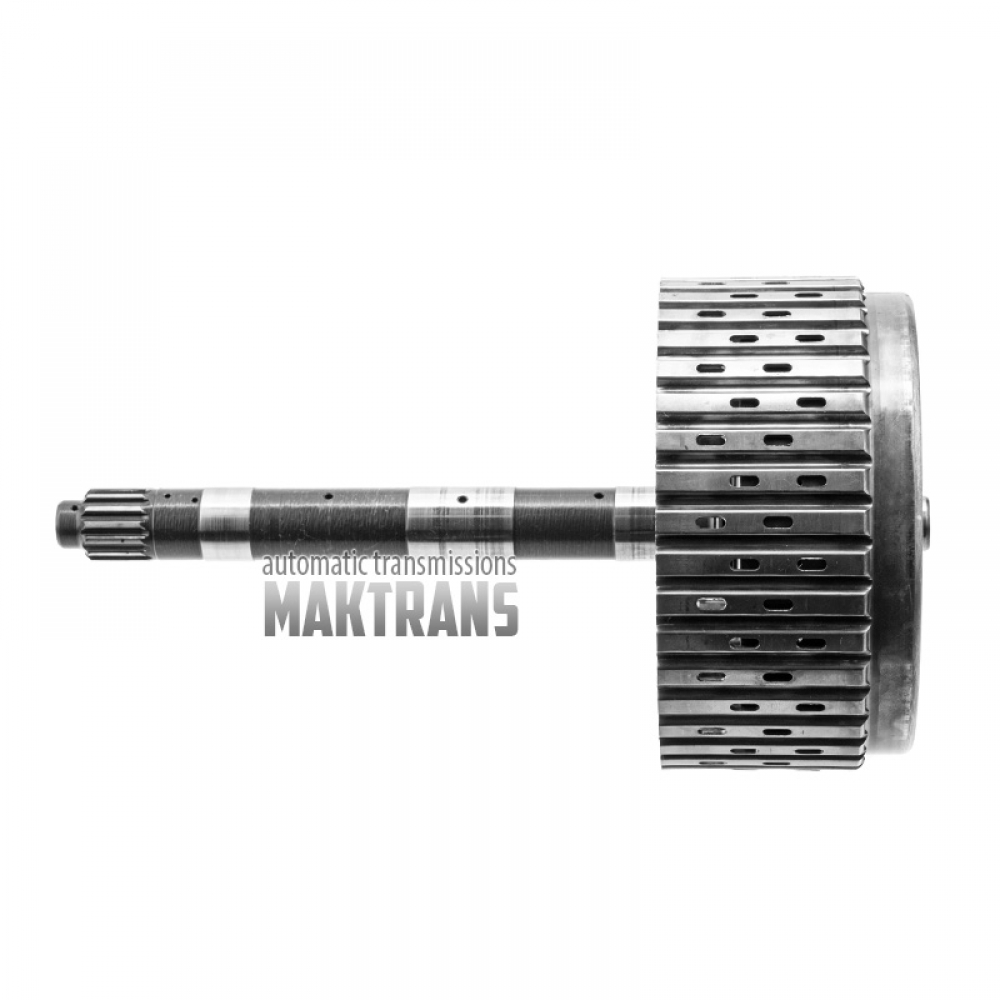

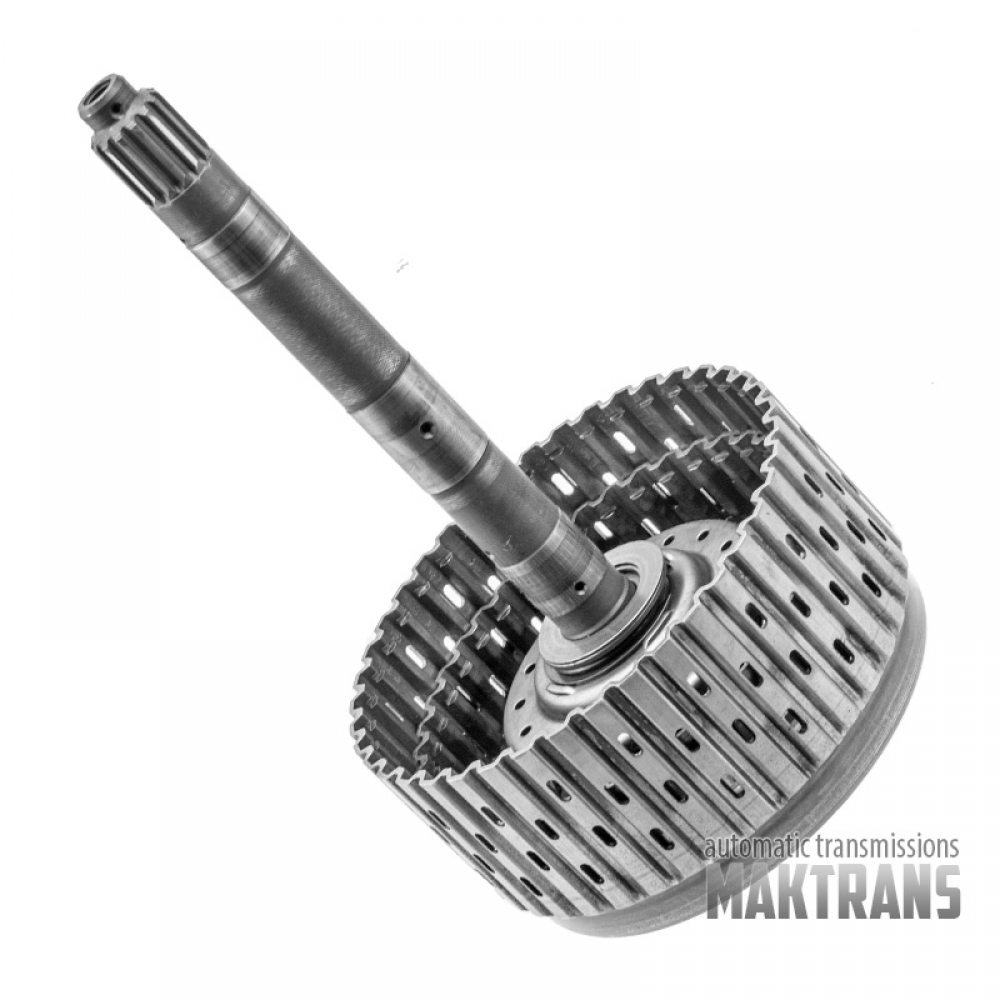

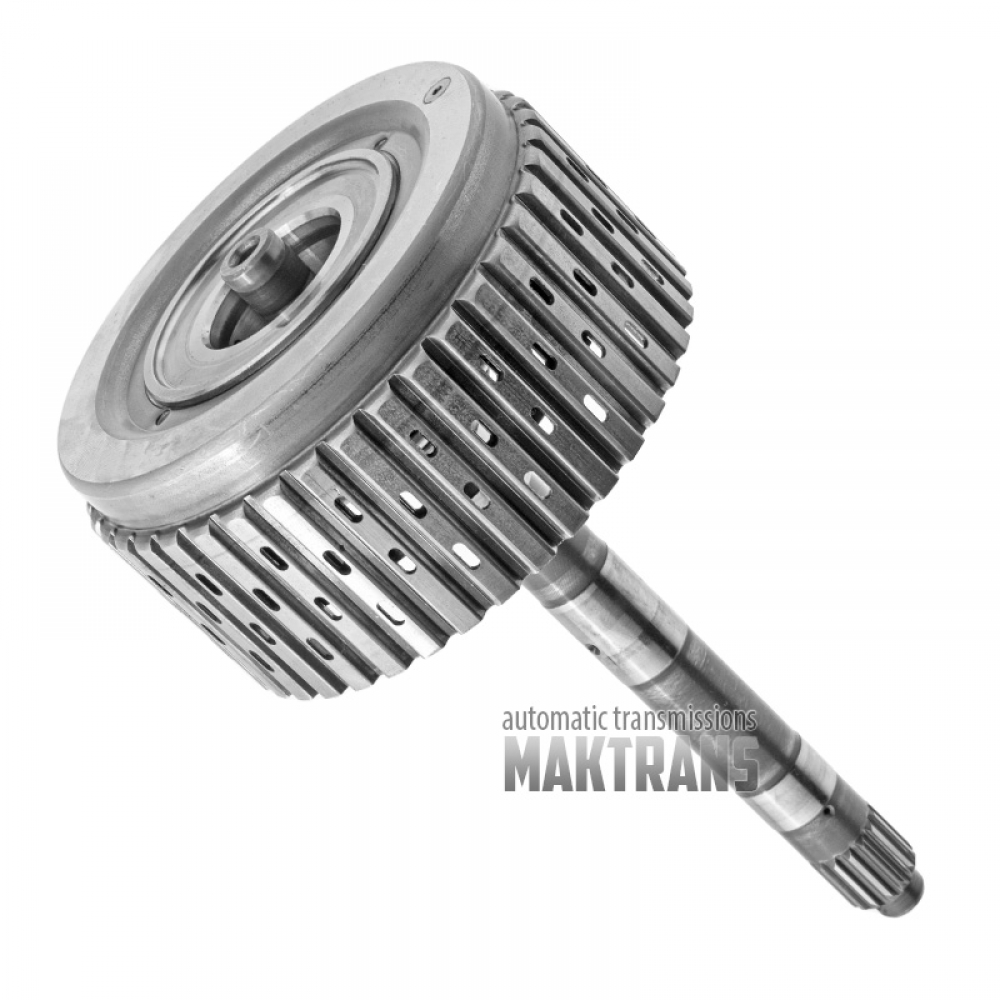

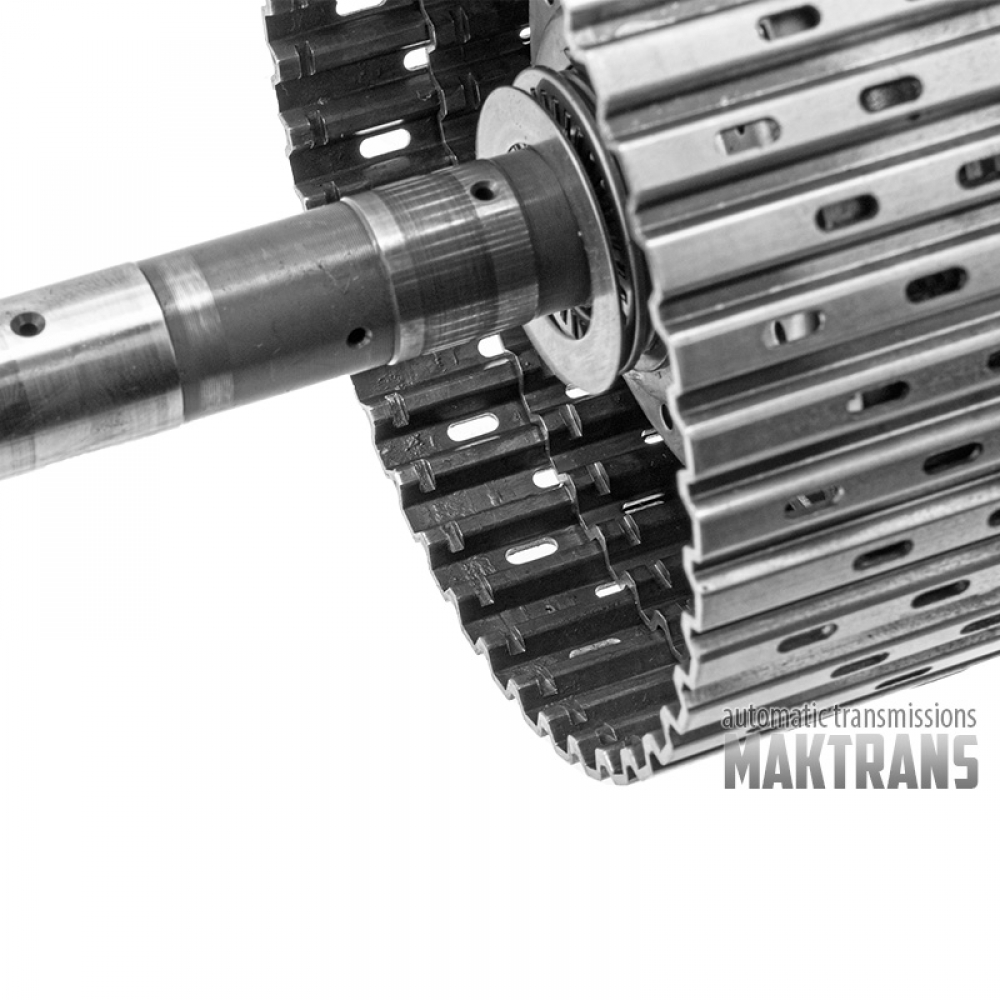

Drum REVERSE / DIRECT Clutch TOYOTA U340E [empty, without plates, for Reverse clutch pack - 3 friction plates / Direct clutch - 3 friction plates]

Name: Drum REVERSE / DIRECT Clutch TOYOTA U340E [empty, without plates, for Reverse clutch pack - 3 friction plates / Direct clutch - 3 friction plates]
Brand: TOYOTA
Price: 70.78 EUR
Availability: OutOfStock

Worldwide Shipping 🌎

Product Code:

U340E-R3-D3

Product model copied to clipboard

Brand

TOYOTA

Availability: Out Of Stock

Weight (kg): 2.1

Sold:

You might be interested in this product:
Product	Price
Drum REVERSE / DIRECT Clutch TOYOTA U340E [empty, without plates, for Reverse clutch pack - 2 friction plates / Direct clutch - 3 friction plates] [in stock]	€70.88

€70.78

Shipping Icon Shipping to United States from €74.91

Main Specifications

Condition (used, new): used and inspected

Type: REVERSE / DIRECT Clutch drum

Product overview
Shipping & Payment
Questions - Answers (0)
Gearbox works better with (3)

Overall height - 226 mm;
Drum outer diameter - 127.25 mm;
The number of splines on the shaft - 14 pcs;
The outer diameter of the splined part - 19.40 mm;
The outer diameter of the pilot on the back of the drum - 14.50 mm;
Reverse drum height (from piston to retaining ring) - 18 mm;
Direct drum height (from piston to retaining ring) - 16 mm;
