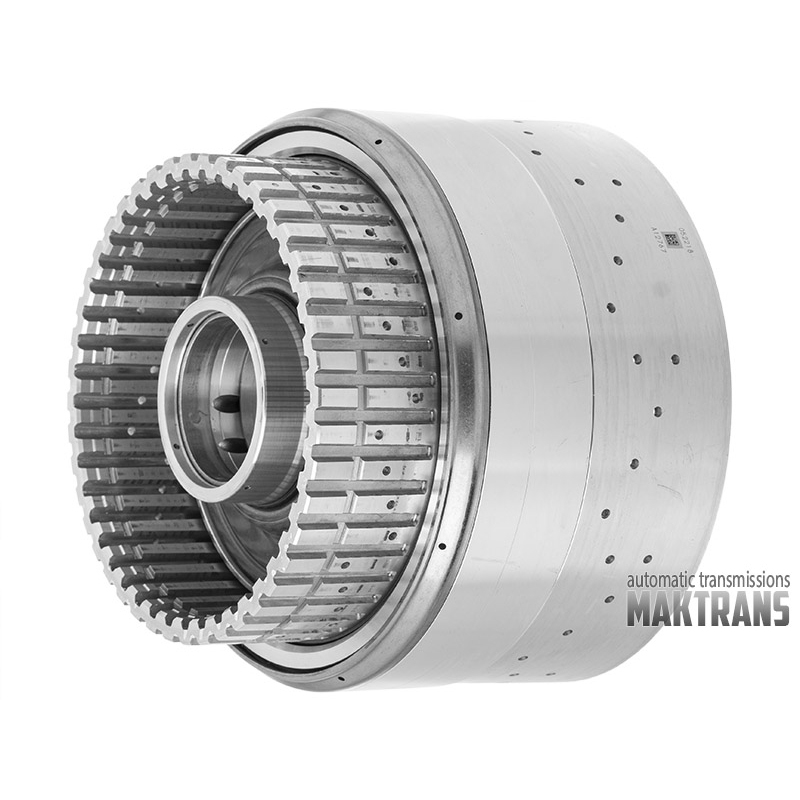

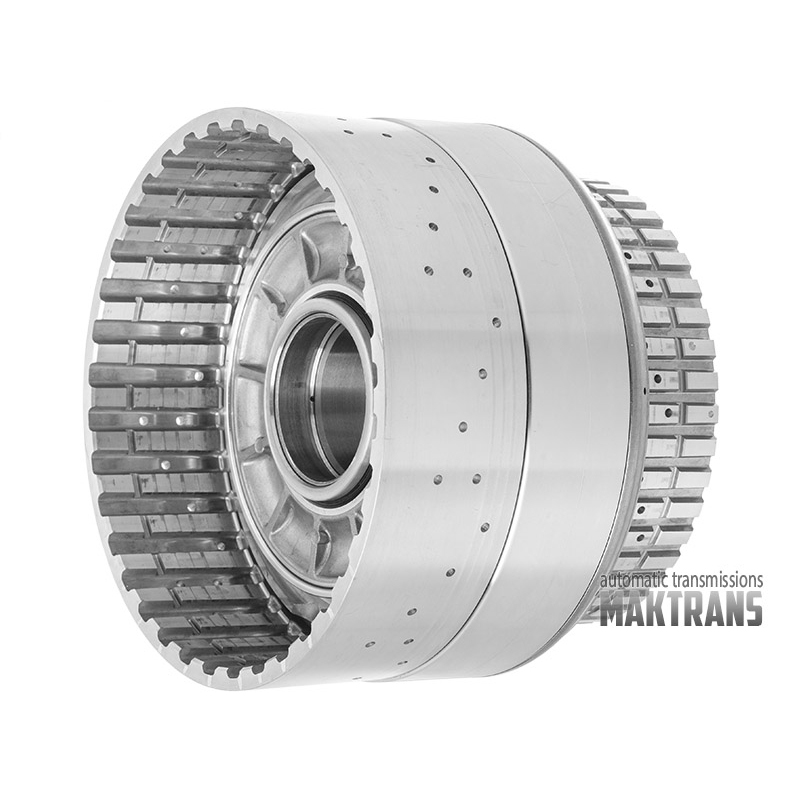

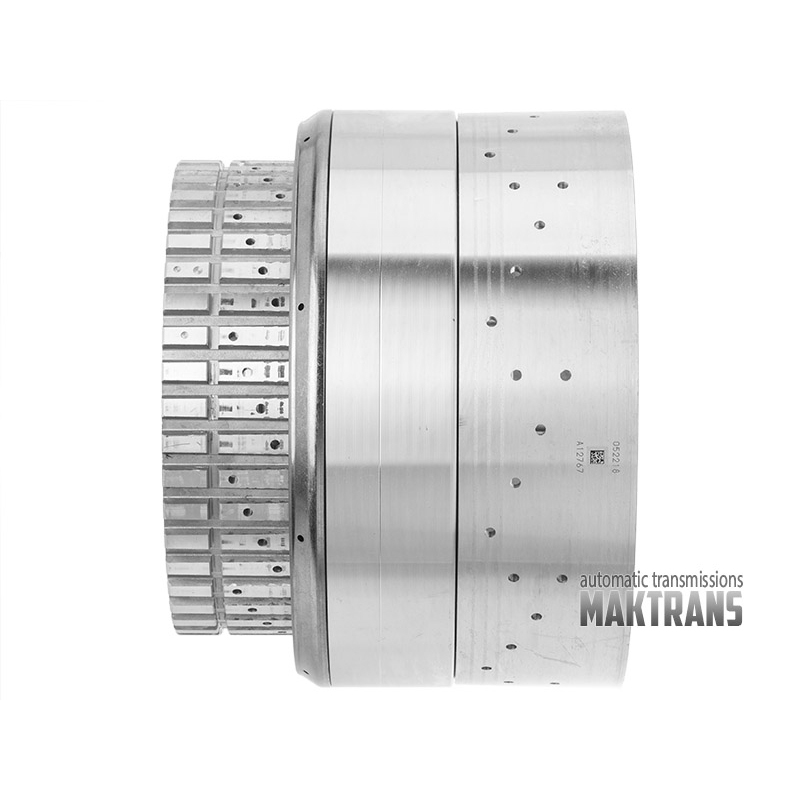

C-DF Clutch Drum (for 5-6-4 friction discs) FORD 10R80 — upgraded (with welded sleeve)

The CDF (Clutch D-E-F) drum is a critical component in modern 10-speed 10R60 and 10R80 transmissions (a joint development by Ford and GM). Despite its advanced engineering, this unit has a design flaw that leads to transmission failure.


Design Feature:

• A steel bushing is pressed into the aluminum housing of the CDF drum, separating the oil channels that supply the clutch packs.

Mechanism of the defect (Displacement):

• Due to the difference in the thermal expansion coefficients of aluminum and steel, as well as constant heating/cooling cycles, the factory fit loosens. The bushing begins to move spontaneously (slip) along the drum axis.

Blockage of Oil Lines:

• As it shifts, the sleeve wall partially or completely blocks the transmission fluid (ATF) supply ports.


Consequences for the Transmission:

• Oil Starvation: The clutch packs do not receive sufficient pressure for full compression.
• Slippage: The friction plates begin to slip, causing instantaneous local overheating.
• Failure: The result is the burning of the friction plates, contamination of the system with metal shavings, and the automatic transmission entering emergency mode.
• Symptoms: Jerky shifts (jolts), prolonged shifts from 2nd to 3rd and from 4th to 5th gear, clutch slip errors.

Solution: Design upgrade by securing the sleeve.

Replacing the drum with a new original part often does not solve the problem in the long term, as the defect may recur on the new part due to the old one.

We use a method of preventive reinforcement through welding.

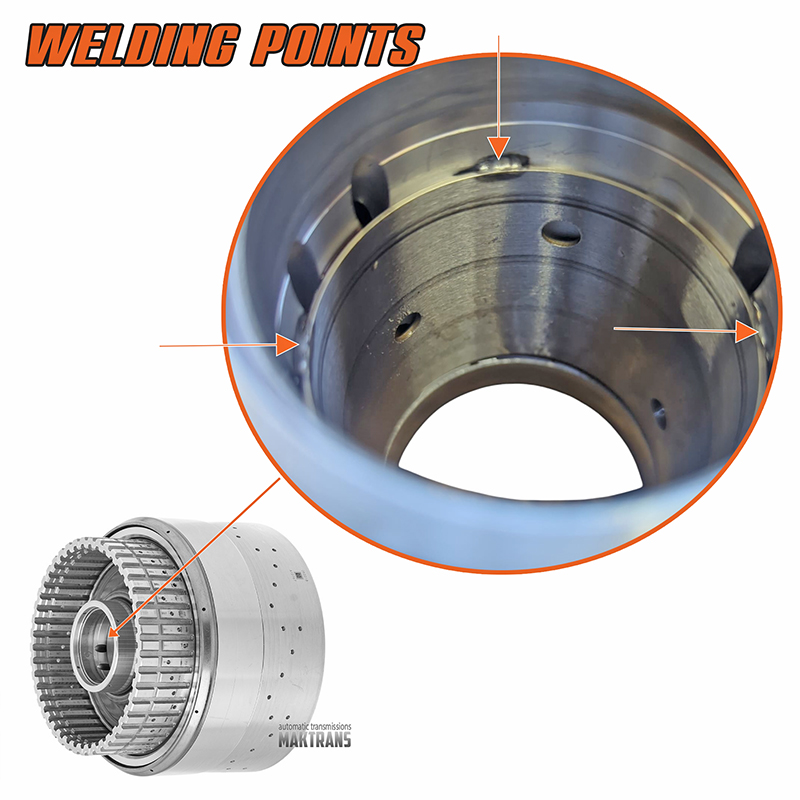

• After defect detection and returning the sleeve to its original design position (or mounting it on a new drum), it is securely fastened to the housing.
• Welding is performed by a qualified specialist, taking into account the specific properties of the materials (aluminum/steel). This eliminates any possibility of axial displacement of the sleeve in the future.


Advantages of the solution:

• Permanent defect elimination: The sleeve is no longer a “floating” component.
• Stable pressure: Guaranteed oil supply to the clutch packs under all operating conditions.
• Cost-effectiveness: The cost of the upgrade is significantly lower than purchasing a new complete assembly, while the reliability of the assembly exceeds that of the factory unit.
