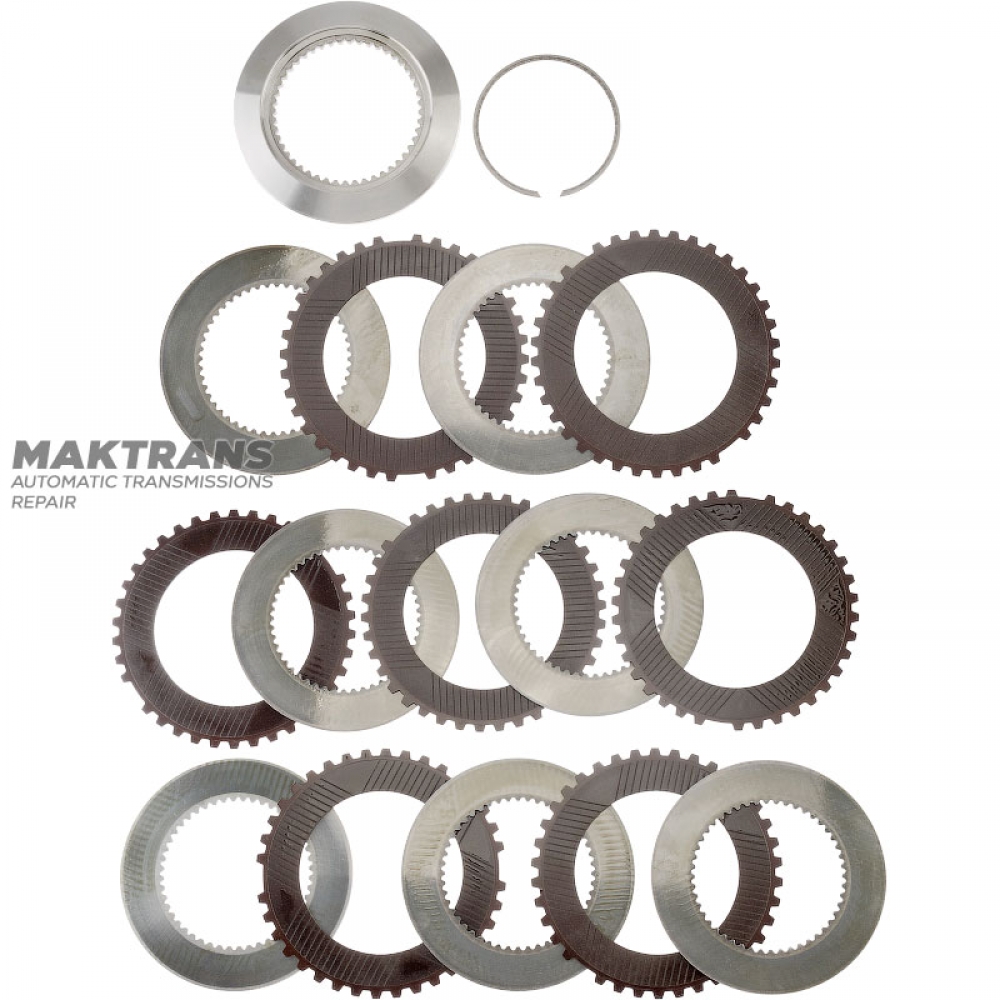

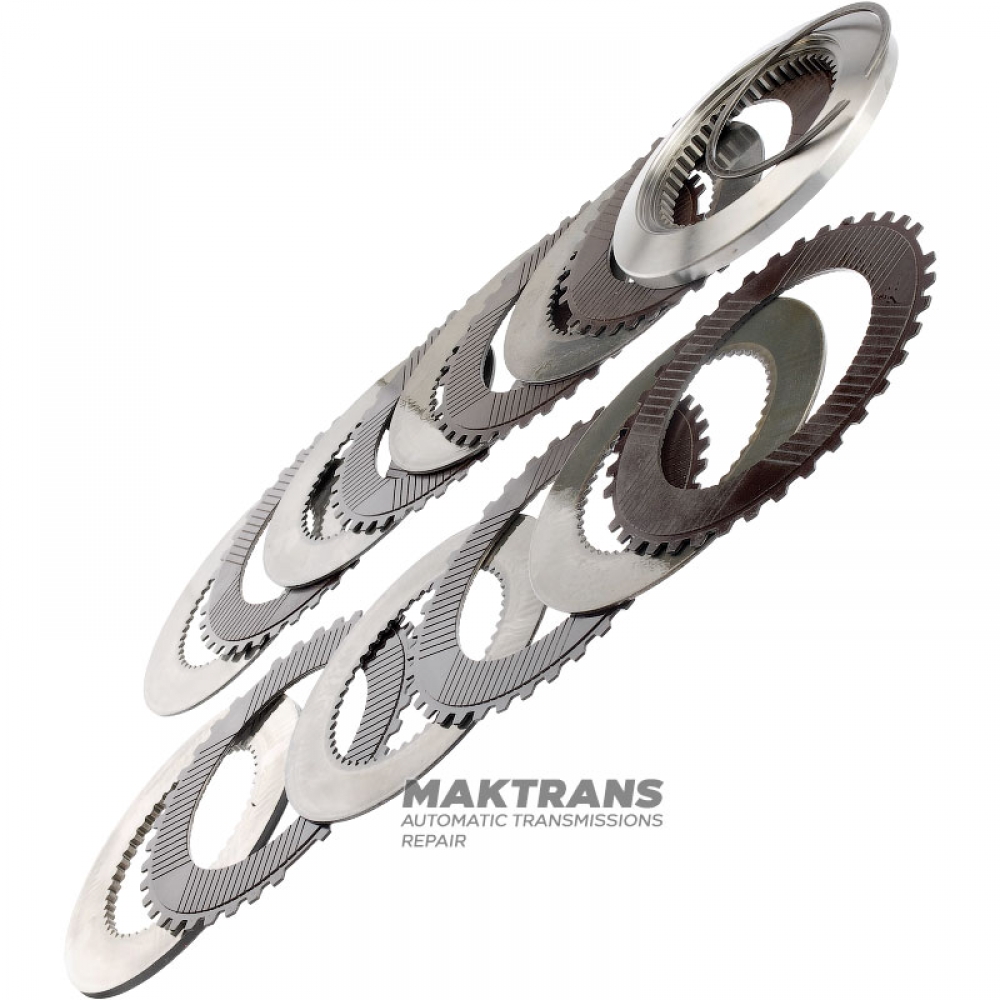

C1 Clutch ALLISON 4000 Steel and Friction Disc Set - 7 Friction Discs (Thickness 3.30mm, Int.Ø 132.10mm, 36 Teeth)

• Total thickness of the set - 60.80 mm;

Support disk:

• Thickness - 16.80 mm;
• Outer diameter - 190.30 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 3.30 mm;
• Outer diameter - 132.10 mm;
• Number of teeth - 36 mm;
• Number of discs in the set - 7 pcs.;

Steel disk:

• Thickness - 2.50 mm;
• Outer diameter - 189.90 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 6 pcs.;

Pressure disc:

• Thickness - 6.05 mm;
• Outer diameter - 190 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;
